Product Name: Galvanized Steel Furring Channel Roll Forming Machine | High Precision Ceiling Omega Profile Making Machine
The Galvanized Steel Furring Channel Roll Forming Machine is a specialized, high-precision production line designed to manufacture Omega (Ω) profiles and furring channels for suspended ceiling systems and drywall framing. Engineered for stability and exact dimensional accuracy, this machine transforms galvanized steel coils into resilient, lightweight metal channels. It is an essential piece of equipment for manufacturers aiming to supply premium ceiling grids and wall framing components for modern commercial and residential construction.

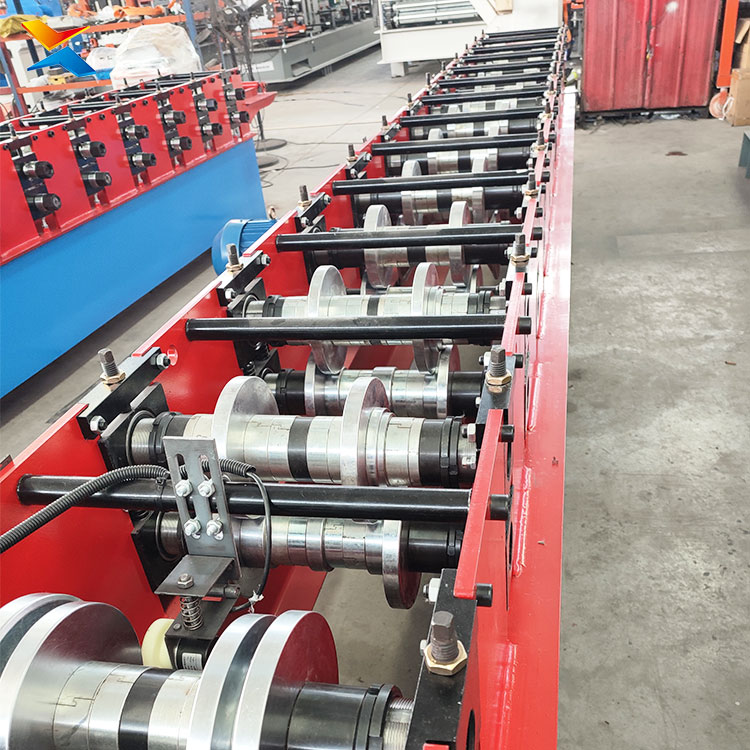

- High-Precision Omega Forming: Utilizes custom-engineered roller stations to ensure perfect Ω-shape geometry, providing superior load-bearing capacity and easy integration with suspension systems.
- Advanced PLC Control System: Features an intuitive touch-screen interface for accurate length setting, batch counting, and real-time fault diagnostics, ensuring seamless and automated operation.

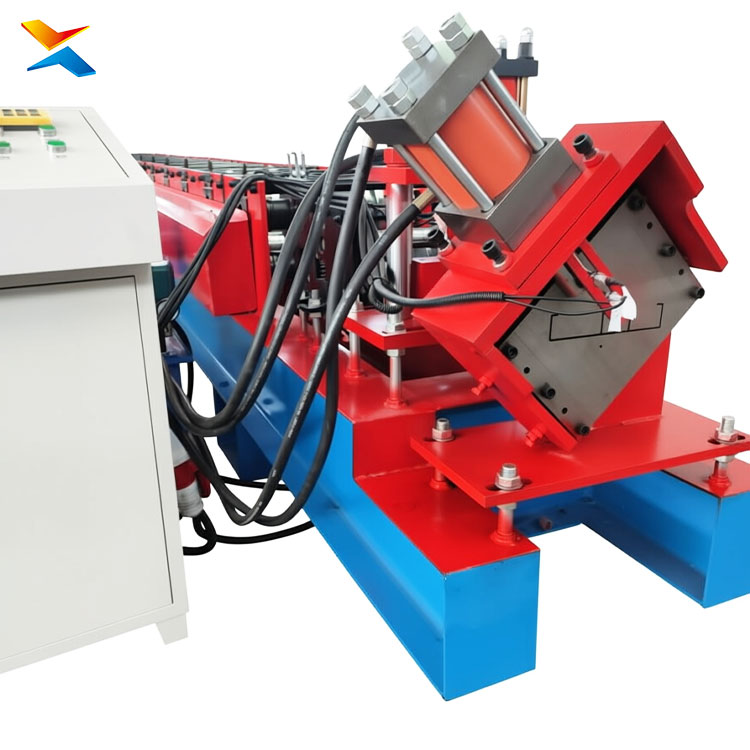

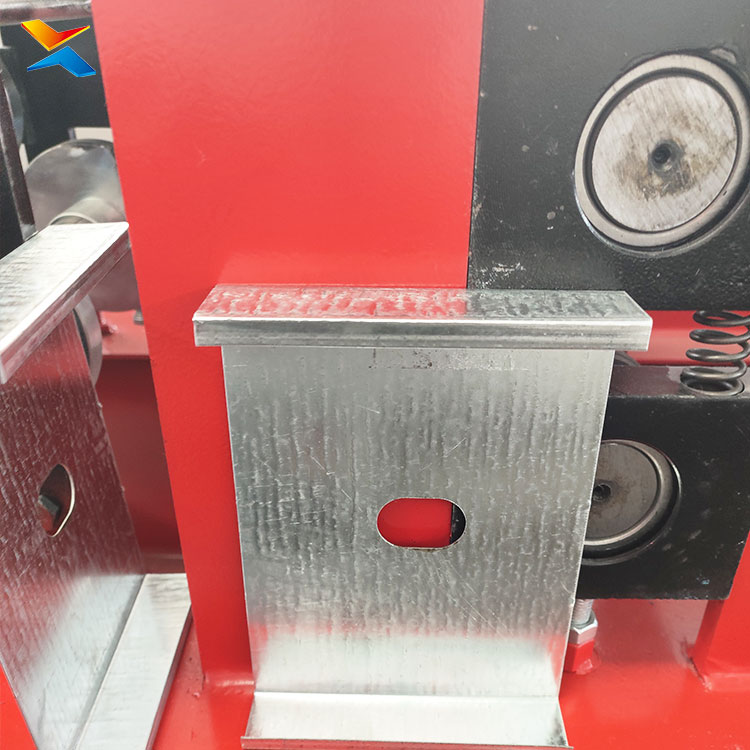

- Automatic Punching & Cutting: Integrated hydraulic punching and flying cut-off systems allow for precise hole patterns (e.g., for cross-tees or wires) and accurate length cutting without interrupting the continuous forming process.
- Heavy-Duty Construction: Built with a robust welded steel frame and premium-grade forming rollers (treated with chrome plating for durability) to minimize wear and maintain tight tolerances over extended production runs.
- Material Versatility: Optimized for processing galvanized steel coils, producing smooth, corrosion-resistant furring channels with clean edges and a professional finish.
- Customizable Profiles: Molds and rollers can be tailored to produce various sizes of Omega channels and furring profiles according to international or local market standards.
- Raw Material: Galvanized Steel Coil / Cold Rolled Steel Coil
- Material Thickness: 0.3mm – 0.8mm (Customizable based on structural requirements)
- Forming Speed: 15 – 25 meters/minute (Adjustable via inverter)
- Roller Stations: 14 – 20 stations (Depends on the complexity of the Omega profile)
- Main Motor Power: 4 kW – 7.5 kW
- Hydraulic System Pressure: 10 – 12 MPa
- Control System: PLC + Touch Screen (Siemens, Mitsubishi, or Delta)
- Voltage: 380V/50Hz/3Phase (Customizable to local power standards)
- Machine Dimensions: Approx. 10m(L) x 1.0m(W) x 1.4m(H) (Subject to final layout design)
This machine is widely utilized in the production of metal ceiling and partition systems, including:
- Suspended ceiling grids and furring channels
- Drywall partition framing and wall liners
- Interior acoustic ceiling systems
- Commercial office, hospital, and retail space renovations
- Warranty: 12-month comprehensive warranty covering the entire production line (excluding consumables).
- Installation & Training: Professional engineers dispatched overseas for machine installation, commissioning, and operator training (buyer covers related travel expenses).
- Technical Support: 24/7 online troubleshooting and lifelong technical consultation.
- Spare Parts Supply: Long-term supply of high-quality spare parts, forming rollers, and hydraulic components at factory-direct prices.
