Xinnuo Glazed Roof Tile Roll Forming Machine Metal Imitation Clay Tile Machine | Factory Direct from Hebei Xinnuo

Xinnuo glazed roof tile roll forming machine — the metal imitation clay tile machine, factory direct from Hebei Xinnuo. The machine forms coated steel coil into metal roof tiles that imitate clay tiles: the curved, segmented profile of classical clay roofing, produced in steel so that a steel-framed building can carry the traditional clay-tile appearance without carrying clay.

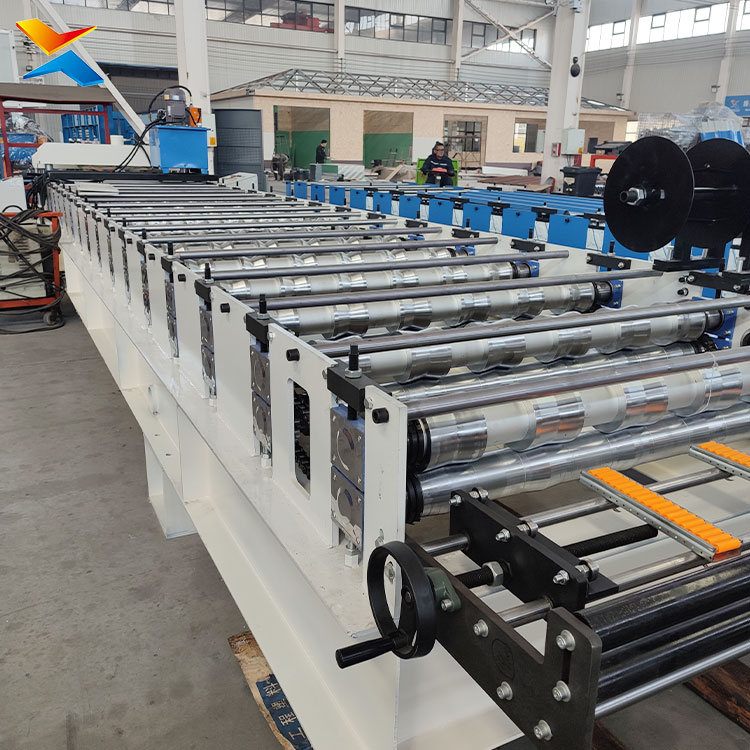

It runs two forming functions in one line. The arc forming section shapes the wave of the tile. The pitch-stamping device presses the tile-segment divisions into each crest. The second function is the one that makes a steel sheet read as laid tile, and it is the reason this machine is classed as a glazed tile machine rather than as an arc machine.

What “imitation clay tile” means, and what it does not mean.

The word imitation is exact, and it should be read exactly. This is a metal tile formed from coated steel coil — not fired clay, not terracotta, not ceramic. It is not offered as clay, and it is not sold as clay. It is offered as the way to put a clay-tile appearance onto a steel building.

The word glazed needs the same care. Glazing, in its original sense, is a vitreous finish fired onto clay in a kiln. On a metal tile, the word describes the appearance of a glazed roof tile rather than a fired glaze on the panel, and the distinction matters in a specification. A metal imitation tile carries the look of a glazed clay tile; it does not carry a fired clay glaze, and no test of the panel will find one.

The colour deserves the same statement. The colour of the finished roof comes from the coating system on the steel coil, not from a kiln and not from a glaze. The machine forms the geometry and presses the texture; the coating supplies the colour. That is why a roof in terracotta, in dark red, in brown, in charcoal or in a blend is a coating specification before it is a machine specification.

Why a steel building imitates clay at all.

Clay tile and steel construction are an awkward pairing, and the awkwardness is the reason this product exists.

Clay is heavy, and its weight is carried by the roof structure rather than by the covering alone — a clay roof is a load, and the structure underneath is sized for it and for the battens that hold the tiles. Clay is also brittle: it breaks in transit, it breaks in handling, and it breaks underfoot on the roof. And in markets where clay is imported rather than made, the transport and the breakage become a running cost before the roof is even fixed.

A steel-framed building is the opposite in every one of those respects. It is light, it is quick to erect, and it is framed for sheet materials. So a project whose design calls for a clay-tile appearance, built on a steel frame, has a genuine conflict to resolve.

The metal imitation clay tile resolves it. The appearance the design calls for is manufactured from coil, formed to the building’s own lengths, and fixed to the purlins the steel building already has. The roof reads as clay; the structure stays a steel structure, with a steel structure’s weight, erection speed and handling.

How the imitation is made — three things, and only three.

An imitation is either convincing or it is not, and on this product the outcome is decided by three things.

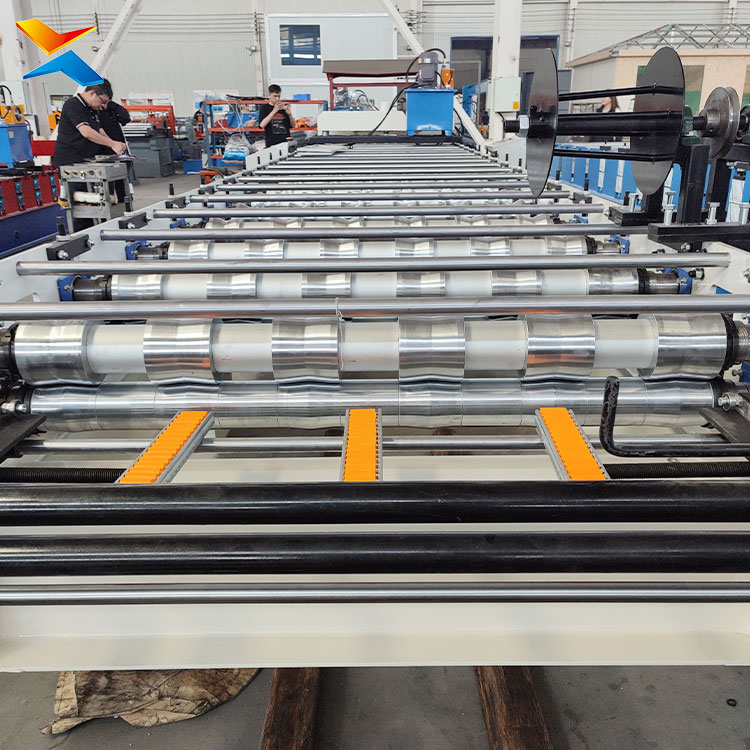

The profile geometry. The arc forming section produces the wave geometry of a clay-tile roof: the ridge-and-valley arrangement, the peak height, and the pitch at which tiles repeat. The family covers the classical tile forms that a market recognises, and the choice among them is an architectural decision rather than a technical one.

The pitch stamping. The pitch-stamping device is what turns a wave into a tile. It presses the segment division into each crest at the profile’s pitch, which creates the tile pattern that is seen from the ground. This is the step where the imitation is won or lost. A division that runs wavy, a pitch that does not match the intended tile, or a stamp that varies along the panel reads immediately as imitation from ground level — and it reads that way to the building’s users, who are the people the appearance is for. The tooling therefore matters here more than anywhere else on the machine.

The coating and colour. Colour is a large part of what makes a roof read as clay rather than as metal, and the colour lives in the coating. The machine forms and textures the metal; the coating decides whether the finished roof reads as Mediterranean clay, as a darker traditional tone, or as a modern solid colour. A coating also has to survive the forming, because a coating that cracks at the arcs and at the segment lines exposes bare steel at exactly the points where a roof weathers first.

The profile families and the tile readings they answer.

The families in the archive answer different architectural intentions rather than different grades of quality.

Small pitch, closely divided. A fine, dense tile surface, answering the restrained, closely worked tile of classical Chinese roof forms. It suits high-end façades and roofs where the tile should read as detailed and fine rather than as bold.

Medium pitch. The mainstream specification — the arrangement most projects use, and the balance between the density of the fine family and the breadth of the bold one.

Large pitch. Broad, boldly relieved peaks, answering a heavier classical idiom for temples, villas and garden buildings, where the tile is meant to be seen as a large architectural element.

Asymmetric arc. One flank of each tile steeper than the other, so the relief reads deeper than the peak height alone would suggest. Used for high-end commercial and residential work where a stronger sense of depth is wanted.

Bamboo joint. The deepest relief in the range on a wide pitch, for garden work, temples and boutique hospitality where the roof is a character element.

With A. An A-shaped reinforcing rib pressed across the flat between peaks, raising the stiffness of the panel without raising the peak — which is how a wider span is covered without changing the tile reading.

Half peak. A partial peak at each edge, so that adjoining panels join into complete peaks and the coverage across a roof plane improves.

What the imitation cannot do.

An honest account of an imitation has to state its limits, and there are three.

The first is natural variation. Fired clay varies — in tone, in surface, and in the way it weathers. A formed metal panel does not: it is regular and repeatable, which is precisely why it can be made reliably and why its appearance can be specified in advance. A buyer who wants the variation of fired clay is asking for something a roll formed panel is not made to give.

The second is a specification that names fired clay. Where a specification or a client names fired clay as the material, a formed metal panel is not the product being asked for, whatever the appearance of the sample.

The third is heritage work. Restoring or matching an existing clay roof is work for clay. A metal imitation roof is a new roof built to carry a traditional appearance, not a repair material for a historic one.

Where clay still wins. Where the structure has been designed for clay and the appearance must be authentic. Where the client specifies fired clay by name. And where the natural variation of the material is the point of the design.

The drive decides how regular the pattern is.

Because the pattern is what the building’s users see, the drive decides the result over a large roof. A servo motor with a bevel gear drive positions the pitch considerably more precisely than a clutch-and-brake arrangement delivering the same stamping, and the difference accumulates across the many repetitions a single roof requires — which is why servo positioning is the version chosen where the roof is exposed to close view or where the work is export-facing. The bevel gear train is also documented as quieter and smoother in service than chain drive.

Where throughput matters more than maximum pattern precision, the higher-power builds in the range run faster and handle slightly thicker material.

Materials.

The family forms thin-gauge coated steel coil. A deep peak deforms the material heavily and is not suited to thick plate, while the heaviest builds extend to a somewhat thicker gauge because their frames and drives are built to move that material. The working gauge is confirmed against the specific model, because the gauge a machine forms cleanly follows from its row count and frame class rather than from a general figure.

Where the panel is used.

Mosques and religious buildings. Ornamented roof forms and decorative tilework are part of the architectural language, and the imitation clay tile serves prayer-hall roofs, canopies and ancillary buildings where the traditional tile appearance matters and the structure is steel.

Resorts, hotels and hospitality. Tourism and hospitality projects — beach resorts, desert lodges, heritage-style hotels, entertainment destinations — build environments in which clay-tile appearance is part of the design, frequently on steel-framed structures.

Villas and premium residences. Steel-framed villas and residential projects that want a Mediterranean or traditional tile look without a clay-load roof structure. The asymmetric arc and the ribbed profiles serve the high end of this work.

Tourism and theme projects. Scenic areas, cultural districts and theme projects use the tile look as part of their identity, and this is where the large-pitch and bamboo-joint textures fit.

Commercial and heritage-style districts. Market halls, commercial streets and mixed-use projects in a traditional idiom use decorated metal roofs and canopies.

Steel-framed projects that would otherwise specify clay. The clearest fit: a project whose design calls for clay-tile appearance on a steel structure, where the weight, the lead time and the breakage of clay are the practical obstacles and the formed metal panel removes them.

The machine in Middle East conditions.

The region is one of the markets this family is supplied to, and the reasons are specific to it. Clay-tile roofing — the Mediterranean, Spanish and traditional forms — appears across the region’s residential and heritage-style construction, while the construction economy runs on steel framing. The imitation clay tile machine is the bridge between the two, and the region’s reliance on imported clay adds a further argument, because a roof formed on site from coil has no tiles to break in transit.

Near-coast humidity and salt-laden air. A large part of the region’s building stands close to the coast, and the air carries salt. That exposure concentrates on the details of a roof rather than on its field: every cut edge, every fixing, every drilled hole and every lap is a place where corrosion begins, with the panel field between them protected by its coating. On a near-coast project the coil and its coating system therefore carry more of the outcome than the machine does.

Inland heat and a wide day-night swing. Extreme solar loading, high ambient temperature held for long periods, and a large swing between day and night temperatures. Thermal movement is therefore part of the roof’s design: a formed panel in strong sun expands and contracts, and the fixings and the laps have to accommodate that movement rather than resisting it.

Wind-blown dust and sand. Dust is continuous in much of the region, and it settles into the tile segment lines and the arc troughs. On a tile profile this matters more than on a plain sheet, because the relief that gives the tile its appearance is also what holds the dust — which makes the segment lines an appearance feature that requires attention as well as a forming feature.

The appearance question in a high-UV environment. A dark colour absorbs heat, and a strongly reflective finish changes how a roof reads against the buildings around it. On decorative roof work, where the appearance is the reason for the product, the coating is chosen for how it holds up in the region’s sun as well as for how it looks on the day it is fixed.

What this family is sold for.

These are decorative-segment machines. Their work is the roof that has to read as tile — religious buildings, hospitality, villas, tourism, heritage-style commercial work and steel-framed projects replacing a clay specification — rather than the industrial roof volume that plain trapezoidal sheeting serves. That is the boundary of the product, and it is the boundary within which the imitation makes commercial sense.

Machine build quality — the process behind the profile.

The manufacturing standard is the same one used for the factory’s single-layer panel machines.

Forming dies are forged from carbon steel and carried through a sequence of operations — rough turning, hardening, finish turning, keyway cutting, polishing and electroplating — so that the working surface is hard, accurate and finished rather than merely shaped. Dies are made in matched pairs, because a profile is formed between two rolls.

Shafts are alloy steel, finish turned and externally ground for roundness and straightness under load.

Frames are machined on CNC gantry mills so that every forming station measures from one flat reference, which is what allows a long machine with many forming rows to hold a consistent section along the whole length of a panel.

Welding is shielded and slag-free, and surfaces are shot blasted and then electrostatically sprayed and baked for protection.

Product features and advantages.

A pitch-stamping device on the forming line. The arc is formed and the tile segment line is pressed in the same pass, so the panel leaves the machine reading as laid tile rather than as a plain wave. This device is the whole difference between this machine and an arc roll former.

Tooling designed in house. The pitch-stamping tooling for the small, medium and large pitch families and for the special textures is designed by the factory that owns the archive, which matters on an imitation product because the tooling is what the appearance is bought for.

Forming and cutting in one operation. Panels are cut to the building’s own lengths within the production run, so a roof or an elevation is closed with panels made to the sizes it needs.

Peak height, row count, frame class, shaft and motor sized as one set. So that a deep peak is carried by the machine class that can hold it rather than by a light machine with a deep tool.

Several relief variants within one machine. Asymmetric arc, bamboo joint, a pressed A rib and a half-peak edge — so a specific appearance brief or a specific coverage problem is met by the appropriate tooling rather than by a different machine.

Servo pitch positioning with a bevel gear train. For a more regular tile line across a long roof or elevation, and a drive documented as quieter and smoother in service than chain drive.

Higher-power builds. Faster running and slightly thicker material for work where output matters more than maximum pattern precision.

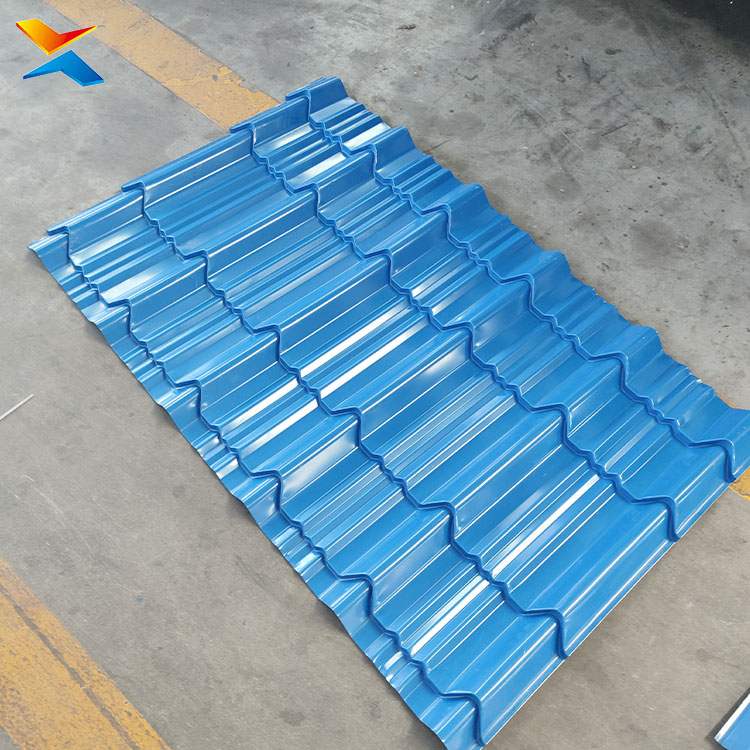

A profile formed on thin-gauge coated steel. Light enough for a light steel structure, in the appearance of traditional clay roof tile, and fixed with standard fasteners to the purlins the building already has.

Coil width matched to a strip the market can supply. Because a machine whose feed width corresponds to no strip available locally is a machine that will stand idle.

Factory direct from Hebei Xinnuo. The machine is built by the manufacturer that owns the tooling archive, in Botou, Hebei, and is configured for the project rather than taken from a fixed catalogue. The panel is formed to the lengths the building needs, the section is matched against an existing production-proven blueprint from the arc and glazed tile catalogue where possible, and the electrical configuration is set to the workshop supply of the destination.

Service and support.

Machines are supplied with documentation covering the machine, including the operating manual, the electrical drawings and the arrangement of the forming sequence, together with the profile, pitch, peak height and panel width the tooling was made for. Installation and commissioning are carried out with technicians attending site, and operator training covers the settings adjusted most often, the cutting arrangement, and the inspection of panels against the standard the product requires. Illustrated manuals and video guidance cover the recurring settings and the routine attention the machine needs where heat and dust are constant. Engineering support is available for technical questions through the working life of the machine, and spare parts are supplied, with the pitch-stamping tooling, the forming dies and the transmission components given particular attention.

♦ COMPANY PROFILE:

    Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

Metal roll forming is a continuous, automated metal fabrication process used to shape long strips of sheet metal (usually coiled steel or aluminum) into specific, uniform cross-sectional profiles.

Unlike traditional metal bending techniques like press braking—which shapes sheets batch by batch—roll forming operates as a continuous production line, making it one of the most efficient manufacturing methods for structural profiles, roofing panels, and automotive components.

How the Metal Roll Forming Process Works

The process passes coil stock through a series of consecutive roller dies to incrementally shape the metal into a finished cross-section:

1. Uncoiling: A heavy coil of sheet metal (often pre-painted, galvanized, or stainless steel) is mounted onto a decoiler and fed continuously into the line.

2. Progressive Forming: The strip passes through a sequence of mating roller stations (known as flower patterns). Each set of rollers gradually bends the metal by a few degrees. By making incremental bends, the process avoids overstressing the material or cracking protective coatings.

3. In-Line Processing (Optional): Pre-punching, post-punching, slitting, or embossing can be integrated directly into the automated line before or after forming.

4. Cutting to Length: Once the final profile is shaped, an automated flying shear or hydraulic cutter cuts the continuous panel into precise custom lengths without interrupting the line speed.

Key Advantages of Metal Roll Forming

• Continuous High Output: Roll forming lines operate at high speeds (typically 20–50 meters per minute), significantly outperforming press brakes for mass production.

• Tight Dimensional Tolerances: Advanced PLC automation and precision-machined rollers ensure strict dimensional consistency across every piece produced.

• Material & Cost Efficiency: Minimizes scrap metal waste and eliminates extra handling steps by integrating punching, bending, and cutting into a single automated line.

• Design Flexibility & Surface Protection: Capable of producing complex, multi-bend profiles while preserving surface finishes, galvanization, and paint coats.

Common Applications

Metal roll forming is widely used across multiple heavy-duty industries:

Metal roll forming is a continuous, high-volume manufacturing process that bends long strips of sheet metal—usually coiled steel or aluminum—into custom cross-sectional profiles.

Unlike traditional press braking or stamping, which processes metal in single discrete batches, roll forming shapes metal incrementally at room temperature (cold forming) through a series of consecutive roller dies.

How Metal Roll Forming Works

The roll forming process relies on a line of paired roller stations that gradually shape the metal in steps:

1. Coil Unloading & Uncoiling: A heavy coil of flat metal strip is loaded onto an uncoiler and fed continuously into the machine.

2. In-Line Pre-Punching: Automatic presses notch, punch holes, or create slots in the flat strip prior to shaping.

3. Progressive Roll Shaping: The strip passes through multiple sets of upper and lower rollers (called roll stations). Each station bends the metal slightly more than the previous one, preventing stress fractures and material strain.

4. Cutting & Shearing: A flying hydraulic shear cuts the finished profile to exact target lengths without stopping the continuous line.

Key Benefits of Roll Forming

• High Speed & Efficiency: Lines operate at speeds up to 20–50 meters per minute with minimal manual labor required.

• Consistent Quality & Precision: Heavy-duty tool steel rollers controlled by PLC automation ensure exact tolerances across thousands of identical panels.

• Material Waste Reduction: Continuous coil processing generates virtually zero scrap compared to conventional sheet stamping or trimming.

• Complex Profiles: Produces intricate shapes—such as standing seam panels, hat channels, C/Z purlins, and tubular sections—in a single continuous pass.

Common Applications

• Building & Construction: Roof tiles, wall cladding panels, gutters, structural purlins, and steel framing studs.

• Automotive: Bumper beams, door impact bars, and chassis structural rails.

• Solar & Energy: Solar panel mounting racks and support structures.

• Storage & Industrial: Warehouse racking systems, shelving, and heavy-duty tracks.
