POP Channel Making Machine | False Ceiling Channel Roll Former for Gypsum Board System

Short Description:


Download as PDF

Product Detail

configuration

COMPANY PROFILE:

what is metal roll forming?

Product Tags

Product Overview

The POP Channel Making Machine is a specialized, high-efficiency roll forming production line designed specifically for manufacturing false ceiling channels for gypsum board systems. Widely utilized in modern interior construction, this equipment transforms metal coils into precise ceiling framing components, such as POP main channels, intermediate channels, and furring channels. Compared to traditional cement or wooden construction, the steel frame systems produced by this machine offer a lighter, more durable, and highly efficient alternative for drywall and ceiling installations.
Key Features & Advantages

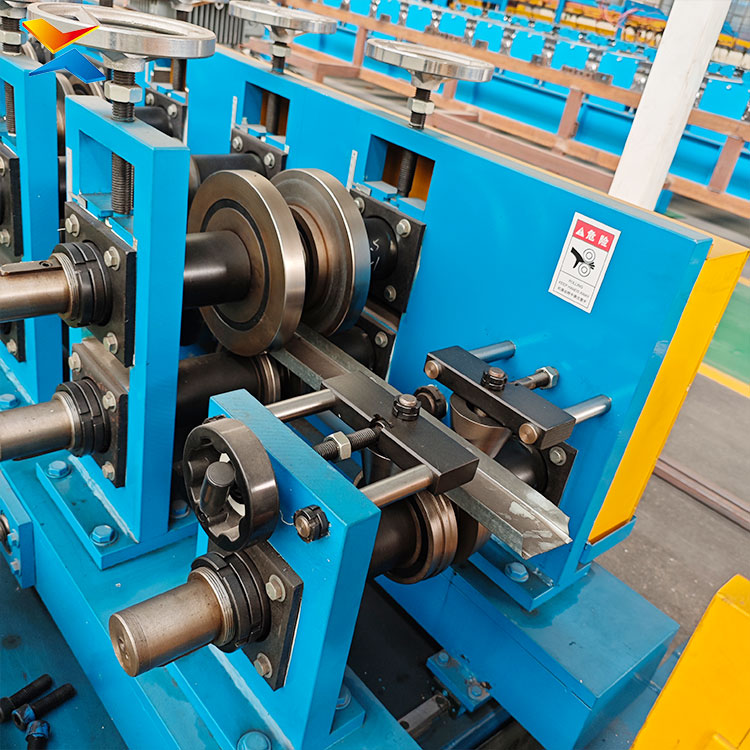

  • High-Precision Forming System: The machine features a series of highly wear-resistant forming rollers (often crafted from premium Cr12 steel) that undergo special heat treatment. This ensures the rollers can withstand high-intensity working environments, producing smooth, scratch-free surfaces and consistent profiles without deformation.

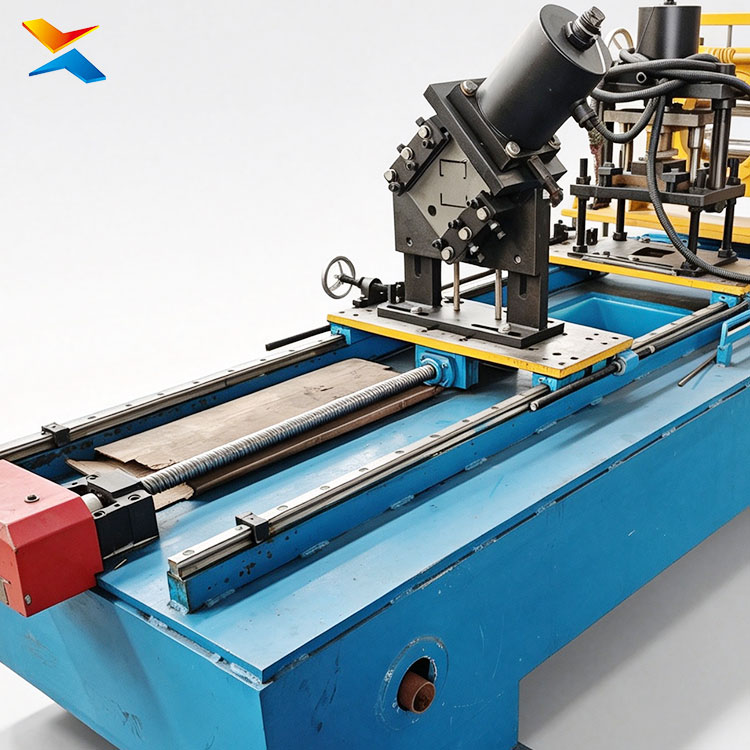

  • Advanced Servo Tracking Cutting: Equipped with an intelligent servo cutting system, the machine precisely monitors material movement in real time. This advanced technology ensures exact length tolerances and clean, burr-free cuts, effectively avoiding material waste and significantly improving production speed.
  • Versatile Profile Production: Designed with high flexibility, this roll former can manufacture a wide variety of gypsum ceiling profiles without requiring frequent tooling changes. It is capable of producing Furring Channels, Wall Angles, POP Main Channels, Intermediate Channels, and Gypsum Perimeter Sections to meet diverse architectural requirements.
  • Fully Automated PLC Control: Driven by a state-of-the-art PLC control system, the production line automates the entire workflow from decoiling and roll forming to precise cutting and output. The user-friendly interface allows for quick parameter adjustments, ensuring stable, consistent, and repeatable production quality.
  • Customizable Branding Options: To help manufacturers build their brand identity, the machine supports customizable labeling. It can be equipped with either an ink injection device or an engraved logo roller to imprint the customer’s desired logo directly onto the finished products during the forming process.
  • Robust & Durable Construction: Built with a heavy-duty main base and precision-ground shafts, the machine is engineered to minimize distortion and vibration. This rugged architecture guarantees long-term operational stability and reduces maintenance costs.
Applications
This false ceiling channel roll former is essential for producing materials used in:
  • Gypsum board suspended ceiling installations
  • Drywall partition wall framing systems
  • Residential, commercial, and industrial interior decoration projects
  • Acoustic and soundproof ceiling treatments
Value Proposition
 By integrating high-precision forming, advanced servo cutting, and intelligent automation, this POP Channel Making Machine empowers manufacturers to produce premium, code-compliant ceiling components efficiently. Its versatile profile capabilities and customizable features provide a highly cost-effective and reliable manufacturing solution, helping businesses capitalize on the growing demand for modern, lightweight steel framing systems in the construction industry.
白底图 5 4
  • Previous:
  • Next:

    • 微信图片_20220406094904 微信图片_202204060949041 微信图片_2022040609490423.png

    ♦ COMPANY PROFILE:

        Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

    Advantages of Roll Forming A Metal Part

    There are several advantages of using roll forming for your projects:

    • The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
    • Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
    • It can provide better dimensional control than other competing metal forming processes.
    • Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
    • Roll forming is typically a higher speed process.
    • Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
    • Roll forming utilizes material more efficiently than other competing processes.
    • Roll formed shapes can be developed with thinner walls than competing processes

    Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
