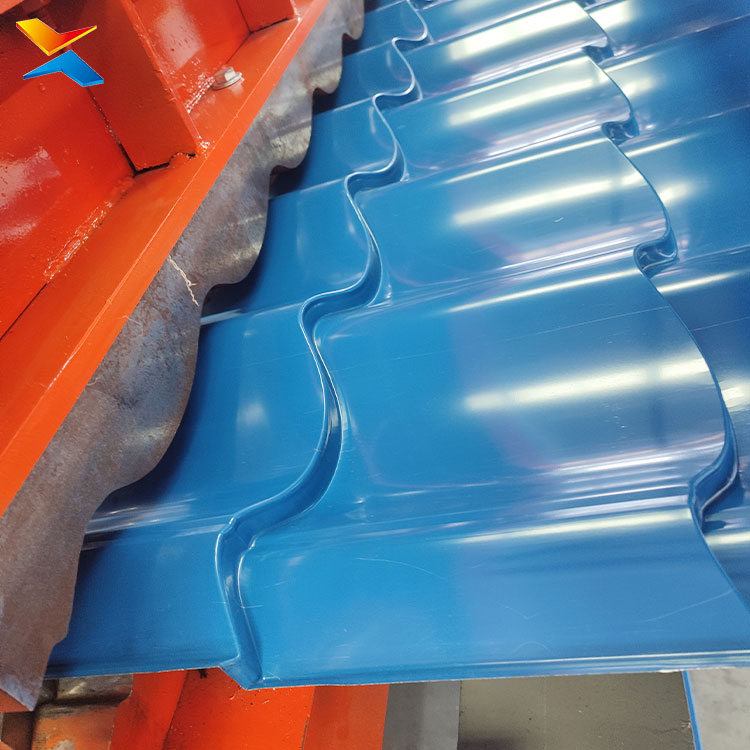

A single layer roof sheet making machine carries one set of forming rolls in one frame and produces one roof profile. The coil is fed in at one end, the strip passes through every stand in a single line, the panel is cut to length at the other end, and there is nothing stacked above the rolls and nothing to switch at the entry.
One point has to be settled before anything else, because the name of this family covers two sections and a machine covers one of them.
Corrugated and trapezoidal are two different panel forms, and a single layer machine is built for one of them. The family spans both — a machine ordered for a corrugated profile is tooled, framed and driven for that wave form, and a machine ordered for a trapezoidal profile is built for flat flanges and straight webs. What a buyer receives is one machine, one set of rolls and one profile.
That is the meaning of single layer, and it is worth stating plainly because the phrase “corrugated and trapezoidal” in a machine description is often read as “makes both”. A single layer machine cannot make both without changing rolls, and changing rolls is a tooling change rather than an adjustment. A producer who needs both profiles available without a roll change is looking at a double layer machine, which carries two sets stacked in one frame — a different structure, a different frame grade and a different price.
What the two sections actually are, and why they are not interchangeable.
A corrugated panel is a continuous wave. Its section is a run of curves with no flat flange between them, the shape is held by the geometry of the wave, and the strip is worked through a long series of small bends so that the coated surface is not marked at any single pass.
A trapezoidal panel is flat flanges joined by straight webs. It has surfaces a roll can press flat against, a defined rib pitch and a large flat area across the width. That flat area is why it is the profile for structural roof decks, for wall cladding that has to read as flat, and for roofs where the sheet is seen from the ground.
The forming consequence is that the two need different tooling and often a different number of stands. A wave form needs more gradual bending; a trapezoidal form can be brought to shape in fewer stands because the material is being folded along defined lines rather than eased around a curve. This is why the stand count, and therefore the length and the price of the machine, follows the section rather than the width.
The four things that define a panel, and therefore define the machine.
Every roof panel is described by four properties, and all four are fixed before a machine can be tooled.
Effective width — the coverage the panel gives when installed, which is less than the strip it is made from, because the laps consume the difference. This is the number usually carried in a model name, and it is the reason a machine’s name is a coverage figure rather than a quality grade. A larger number in the name is a wider panel, not a better machine.
Peak count — how many ribs run across the width. More peaks in the same width means more ribs and a stiffer panel per unit of steel, but also narrower flats between them, which changes where a fixing can go and how the panel feels underfoot. Fewer peaks give wider flats, easier fixing and a cheaper panel.
Peak height — how deep the ribs are. Deep ribs give stiffness and a clear water channel; shallow ribs suit wall cladding, foot traffic and tight laps. A wall profile and a roof profile of the same width are different machines because of this one property.
Feed width — the coil width the machine needs, which follows from the effective width plus the material consumed by the edges and laps.
Get these four settled and the machine is defined. Leave any of them open and the tooling cannot be drawn — which is why the profile drawing, not the machine name, is what a machine is actually built against.
The same profile can be built to different grades, and that is where the money is.
Two machines can produce an identical panel and be nowhere near the same machine. The frame, the shaft diameter, the number of stands, the chain and the drive are chosen for how hard the machine will be worked, and the profile drawing stays the same across all of them.
A lighter grade is built for intermittent production. Moderate frame, smaller shafts, fewer stands, a smaller drive — a machine that forms a correct panel at a working pace and is asked to do so a few hours at a time.
A heavier grade is built for continuous production. Heavier frame, larger shafts, more stands, a bigger drive and a stronger chain — a machine that holds its profile after a long shift, that does not deflect under load at the centre of the shaft, and that keeps the coating intact because each pass takes a smaller bite.
A top grade adds a different kind of drive — a hydraulic motor or a gearbox arrangement in place of a plain motor-and-chain, which is what reduces vibration and lets the line run fast without the panel starting to walk.
The practical consequence is that the price difference between two quotes for the same profile is usually not a difference in what the machine makes. It is a difference in how long it will keep making it at the speed being asked of it. A buyer comparing two prices for the same panel should be comparing the frame, the shaft and the stand count — not the panel.
The features that change what the machine can do, rather than how well it does it.
An edge-forming attachment. Some profiles need a small turned-up lip along one edge so that the lap with the next panel closes properly. It is a separate forming element, usually at the entry end, and it changes the edge form of the panel — which means it is not a cosmetic option. A panel without the lip is not the panel the roofing system was designed around.
A reverse-forming arrangement. Some profiles are installed with the rib pattern facing the other way, and the machine is set up to form the panel in that orientation. It is a build decision, not a setting: a machine is tooled for the orientation the profile is drawn in.
An integrated curving section. A curving unit after the forming stands turns out a panel that already carries an arc, for curved roofs and arched structures. It is a second process on the same frame, so it lengthens the machine and changes what it can deliver — and it is ordered with the machine, not fitted later.
What the machine is made of, in the order the strip meets it.
An entry that guides the strip into the first stand without letting it wander. Alignment at the entry carries through every metre of finished panel; a strip that starts crooked is a panel that comes out crooked, and no later stand corrects it.

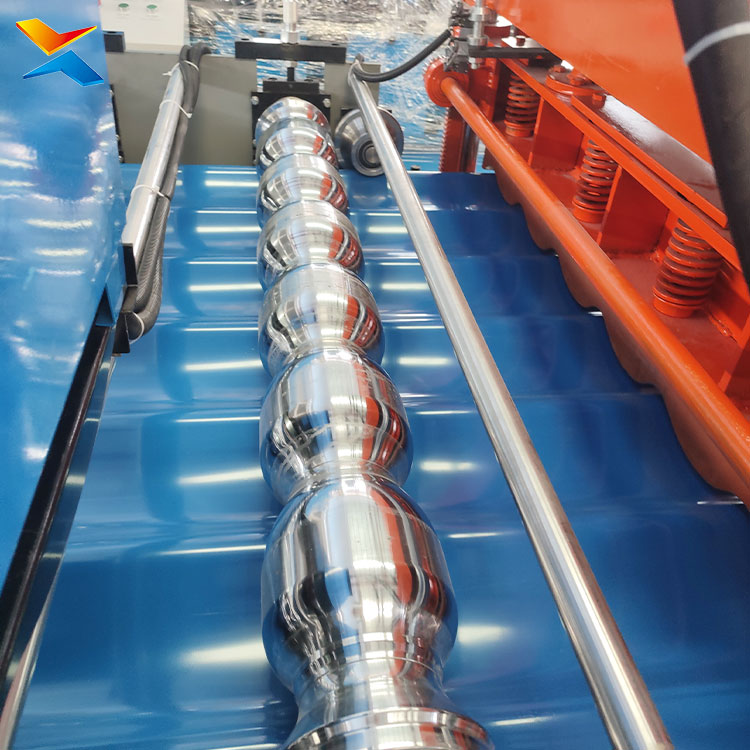

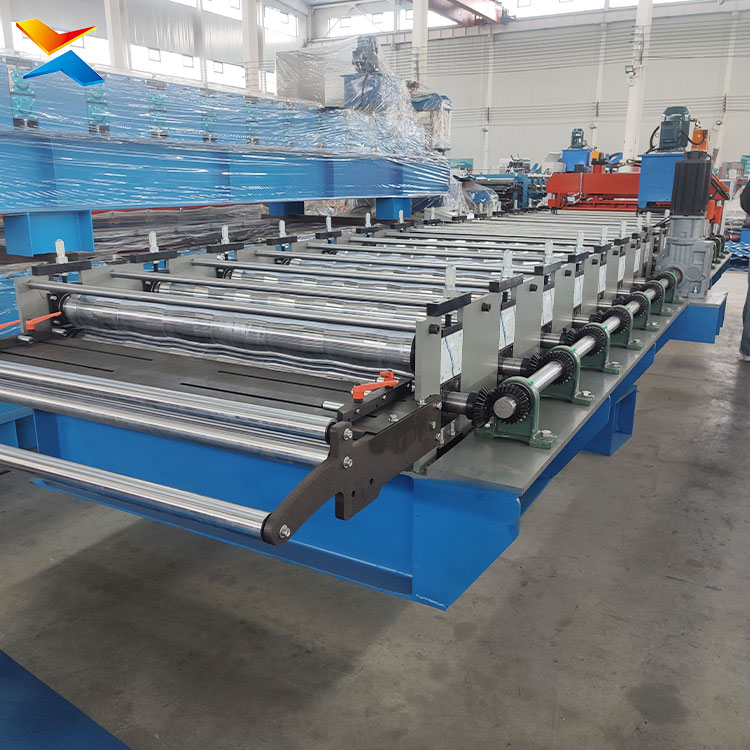

The forming stands, on shafts carried in a frame, driven through a chain from a motor. Stand count follows the section: a gradual wave needs more, a folded trapezoid needs fewer. Each stand takes a small bite so that the coating is bent rather than broken.
A cut-off at the discharge. The panel is cut to the length required, and the cut is where the coating and the zinc are interrupted. That edge is the first place a roof will show corrosion, which is why the quality of the cut matters as much as its speed — a ragged cut leaves a burr that holds moisture against bare metal.
A run-out that receives the panel and keeps it off the floor. This is the station that decides how long a panel the line can handle without help, and it is the station that a stacking section replaces when the panels are long and the volume is real.
Why a single layer machine is still the right answer for most buyers.
A double layer machine is the configuration that gets attention because it carries two profiles. For a producer who makes one profile at volume, it is the wrong machine, and there are four reasons that are structural rather than commercial.
The machine is built around one profile. In a double layer machine, the two layers share one drive, so the tooling on each has to be workable at a common line speed — which constrains the stand count on both. A single layer machine has no such constraint: the stand count, the bite per pass and the drive are chosen for the one profile, and nothing is compromised to accommodate a second.
There is nothing above the rolls. A single layer machine has one roll set at working height. A double layer machine stacks a second set in the same frame, so the frame is taller, the upper set is worked on from height, and the building has to provide the headroom. A workshop with a low portal and a single profile to make has no reason to take on that constraint.
Commissioning is one alignment, not two. One set of rolls has to be brought true to the strip. Two sets in one frame have to be brought true to the strip and to each other, which is the whole reason double layer installation is scheduled differently.
Two machines give two outputs at once. A single layer machine never waits for another profile to finish. Where both profiles are needed in volume, two single layer machines out-produce one double layer machine, because two frames can run simultaneously and one frame cannot.
The trade is straightforward: a double layer machine saves a frame, a drive and a floor position; a single layer machine saves the compromise. A buyer with one profile, or with two profiles that both need volume, is on the single layer side of that line.
Where the machine sits in a production building.
The machine is one station in a sequence, not a self-contained plant. It needs a coil ahead of it and a way to move the finished panel behind it. That means a decoiler and a feed at the entry, and either a run-out that a person can handle or a stacking section, at the discharge.
The length of the building is set by the panel, not by the machine. A panel as long as the roof it will cover has to be received in a length at least that long, so a roof sheet line is long and narrow by nature. The machine’s own footprint is the smallest part of the floor it needs; the entry and the discharge take the rest.
The panel length also sets the cut-off and the run-out. A long panel deflects under its own weight as it leaves the machine, and the support under it is what keeps it straight while it is being cut — a panel cut while sagging comes out with ends that do not meet the next panel cleanly.
The Middle East conditions that act on a roof sheet line.
The volume business here is the industrial shed and the warehouse — large roofs, low specification, tight margins, and a profile that has to be produced quickly and consistently. That is the work a single layer machine on the right grade does best, because it can run that one profile continuously without ever stopping to change over.
The structural and commercial work is a different job on the same kind of machine — a trapezoidal profile with wider flats, seen from the ground, on spans that carry specification and margin. A producer serving both markets usually ends up with two single layer machines rather than one double layer machine, because both profiles are wanted at volume and neither can wait for the other.
Heat and movement. Roof sheets here run hot and move with the daily swing, and the movement is taken up at the fixings and the laps rather than by the sheet. The profile affects how much room there is for that movement — a continuous wave has curvature to give, a trapezoidal flange has less — and the fastening detail has to be designed for the profile that was chosen.
Dust and the cut edge. Dust settles on the strip before it enters the machine and on the panel after it leaves; the machine cannot prevent either. Where the machine does make a difference is at the cut and at the bend: a clean cut and a bend that does not crack the coating are what keep the two vulnerable points of a coated roof sound. On a coastal site those two points are where corrosion starts, not in the middle of the panel.
Coil source matters as much as the machine. A coil that has sat in a hot yard arrives with its coating already aged, and no machine setting recovers a coating that was degraded before the strip was unwound. The machine forms what it is given.
What arrives, and what the line needs.
The machine arrives as a frame with one tooling set installed and aligned, a drive, an entry guide arrangement and a cut-off, with the control system. The decoiler, the run-out and any stacking section are separate items of scope, as are the roof accessories that complete the system — ridge, hip, verge and eave pieces have to be formed to the panel profile and are not produced by a roof sheet machine.
Installation needs a level floor that carries the weight, a power supply sized for the drive, and headroom adequate to the frame grade — a light frame and a heavy frame are different heights, and the taller grades are taller for a reason that cannot be trimmed on site.
The machine is set against the profile drawing. That drawing defines the four panel properties and therefore the tooling. A profile that is re-chosen after the rolls are cut is a set of rolls that has to be made again, which is the single most expensive way to change a decision that costs nothing to make early.
In one sentence: a single layer roof sheet machine makes one profile properly — corrugated or trapezoidal, chosen at order, tooled at the factory, and priced by the grade it is built to rather than by the panel it produces.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
In modern construction and manufacturing, the roll forming machine (commonly known as a roof tile or sheet metal roll former) has revolutionized profile fabrication. By replacing labor-intensive traditional press brake methods, advanced roll forming technology offers unmatched efficiency, quality, and cost savings for metal roofing and wall panel production.
Here are the key advantages of implementing a modern roll forming machine in your operations:
1. Unmatched High Efficiency and Output Speed
High-speed roll forming lines operate continuously, producing custom metal panels at speeds up to 20–40 meters per minute. This automated process significantly shortens lead times and accelerates project delivery cycles.
2. High Precision and Consistent Quality
Engineered with heavy-duty steel frames, high-precision roller dies, and PLC automated control systems, roll formers deliver pinpoint dimensional accuracy. Every panel exhibits uniform thickness, sharp profiles, and precise hole punching, ensuring seamless job-site installation.
3. Material Efficiency and Reduced Waste
Continuous roll forming minimizes scrap metal generation compared to conventional stamping. Precise coil feeding and automated hydraulic flying shears ensure optimal material utilization and reduced raw material costs.
4. Low Maintenance and Extended Durability
Constructed with heat-treated chrome-plated rollers and robust drive systems, industrial roll forming machines require minimal downtime while delivering a long service life under heavy daily operation.
Conclusion
Investing in a reliable roll forming machine boosts productivity, lowers labor costs, and guarantees consistent product quality—delivering maximum long-term return on investment (ROI) for metal fabrication businesses.
Metal roll forming is a continuous, automated metal fabrication process used to shape long strips of sheet metal (usually coiled steel or aluminum) into specific, uniform cross-sectional profiles.
Unlike traditional metal bending techniques like press braking—which shapes sheets batch by batch—roll forming operates as a continuous production line, making it one of the most efficient manufacturing methods for structural profiles, roofing panels, and automotive components.
How the Metal Roll Forming Process Works
The process passes coil stock through a series of consecutive roller dies to incrementally shape the metal into a finished cross-section:
-
Uncoiling: A heavy coil of sheet metal (often pre-painted, galvanized, or stainless steel) is mounted onto a decoiler and fed continuously into the line.
-
Progressive Forming: The strip passes through a sequence of mating roller stations (known as flower patterns). Each set of rollers gradually bends the metal by a few degrees. By making incremental bends, the process avoids overstressing the material or cracking protective coatings.
-
In-Line Processing (Optional): Pre-punching, post-punching, slitting, or embossing can be integrated directly into the automated line before or after forming.
-
Cutting to Length: Once the final profile is shaped, an automated flying shear or hydraulic cutter cuts the continuous panel into precise custom lengths without interrupting the line speed.
Key Advantages of Metal Roll Forming
-
Continuous High Output: Roll forming lines operate at high speeds (typically 20–50 meters per minute), significantly outperforming press brakes for mass production.
-
Tight Dimensional Tolerances: Advanced PLC automation and precision-machined rollers ensure strict dimensional consistency across every piece produced.
-
Material & Cost Efficiency: Minimizes scrap metal waste and eliminates extra handling steps by integrating punching, bending, and cutting into a single automated line.
-
Design Flexibility & Surface Protection: Capable of producing complex, multi-bend profiles while preserving surface finishes, galvanization, and paint coats.
Common Applications
Metal roll forming is widely used across multiple heavy-duty industries:
| Industry | Common Roll-Formed Products |
| Building & Construction | Trapezoidal roof tiles, standing seam panels, C/Z purlins, drywall studs, rain gutters |
| **Automotive &# What is Metal Roll Forming? |
Metal roll forming is a continuous, high-volume manufacturing process that bends long strips of sheet metal—usually coiled steel or aluminum—into custom cross-sectional profiles.
Unlike traditional press braking or stamping, which processes metal in single discrete batches, roll forming shapes metal incrementally at room temperature (cold forming) through a series of consecutive roller dies.
How Metal Roll Forming Works
The roll forming process relies on a line of paired roller stations that gradually shape the metal in steps:
-
Coil Unloading & Uncoiling: A heavy coil of flat metal strip is loaded onto an uncoiler and fed continuously into the machine.
-
In-Line Pre-Punching: Automatic presses notch, punch holes, or create slots in the flat strip prior to shaping.
-
Progressive Roll Shaping: The strip passes through multiple sets of upper and lower rollers (called roll stations). Each station bends the metal slightly more than the previous one, preventing stress fractures and material strain.
-
Cutting & Shearing: A flying hydraulic shear cuts the finished profile to exact target lengths without stopping the continuous line.
Key Benefits of Roll Forming
-
High Speed & Efficiency: Lines operate at speeds up to 20–50 meters per minute with minimal manual labor required.
-
Consistent Quality & Precision: Heavy-duty tool steel rollers controlled by PLC automation ensure exact tolerances across thousands of identical panels.
-
Material Waste Reduction: Continuous coil processing generates virtually zero scrap compared to conventional sheet stamping or trimming.
-
Complex Profiles: Produces intricate shapes—such as standing seam panels, hat channels, C/Z purlins, and tubular sections—in a single continuous pass.
Common Applications
-
Building & Construction: Roof tiles, wall cladding panels, gutters, structural purlins, and steel framing studs.
-
Automotive: Bumper beams, door impact bars, and chassis structural rails.
-
Solar & Energy: Solar panel mounting racks and support structures.
-
Storage & Industrial: Warehouse racking systems, shelving, and heavy-duty tracks.
