Product Overview
The PLC Touch Screen Control Keel Machine is a highly intelligent and automated steel framing production line designed for the efficient manufacturing of light steel keels. Featuring a centralized PLC control system with an intuitive touch screen interface, this equipment streamlines the entire workflow from decoiling to automatic collection. It is an ideal manufacturing solution for producing high-precision ceiling grids, partition wall studs, and framing channels, ensuring consistent quality, operational simplicity, and high output.
Key Features & Advantages
- Intelligent PLC Touch Screen Control: Driven by a state-of-the-art Programmable Logic Controller (PLC), the machine offers seamless human-machine interaction through a user-friendly touch screen. Operators can easily set parameters, monitor real-time production status, and troubleshoot with minimal effort, ensuring precise control over the entire manufacturing process.
- Fully Automatic Collection System: Engineered to maximize production efficiency, the line features an advanced automatic collection (stacking) mechanism. This system neatly gathers the finished keel profiles as they are cut, significantly reducing manual labor requirements, minimizing material handling time, and streamlining the packaging process.

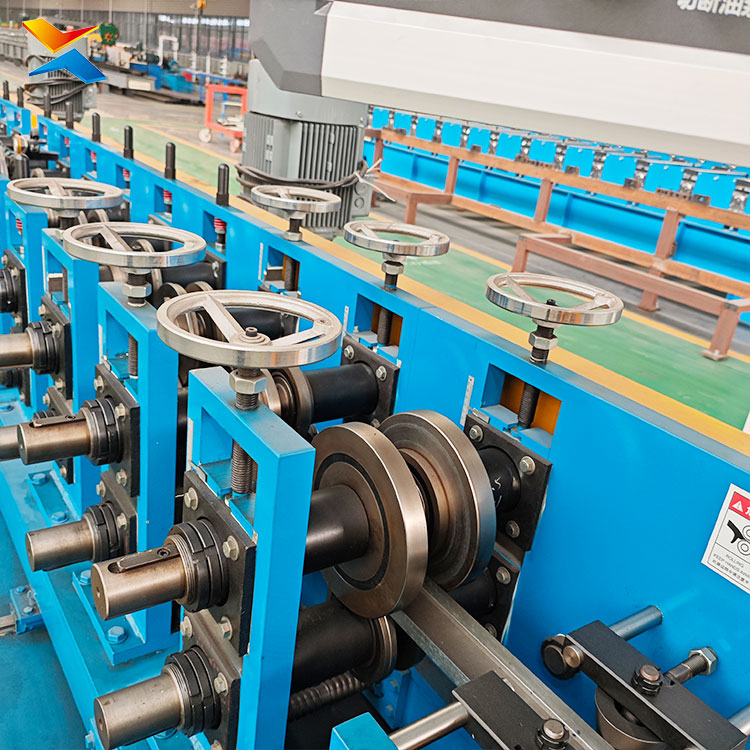

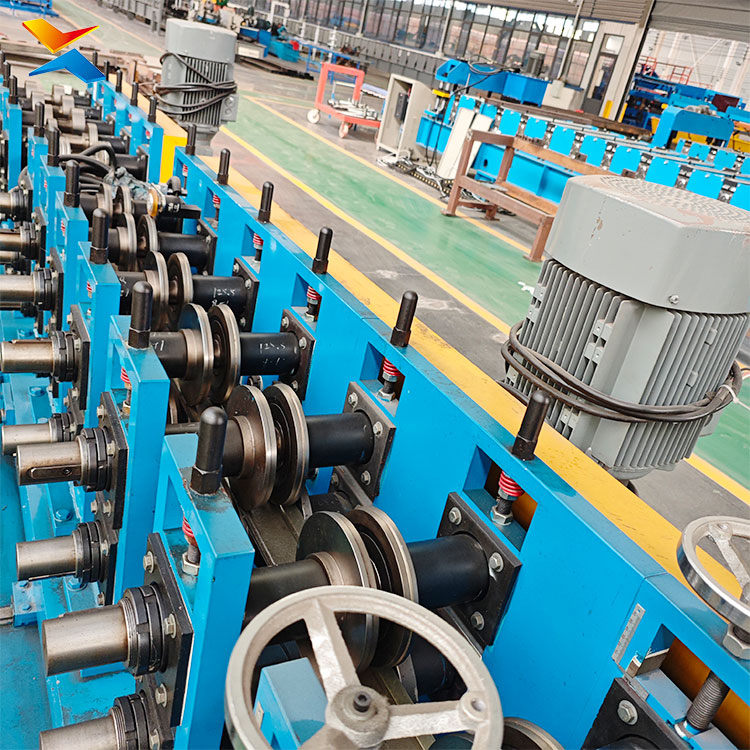

- Precision Roll Forming Technology: Utilizing high-grade, heat-treated rollers and precision-ground shafts, the machine guarantees consistent profile dimensions, smooth surface finishes, and reliable interlocking mechanisms. This precision ensures that every steel keel fits perfectly during on-site assembly.

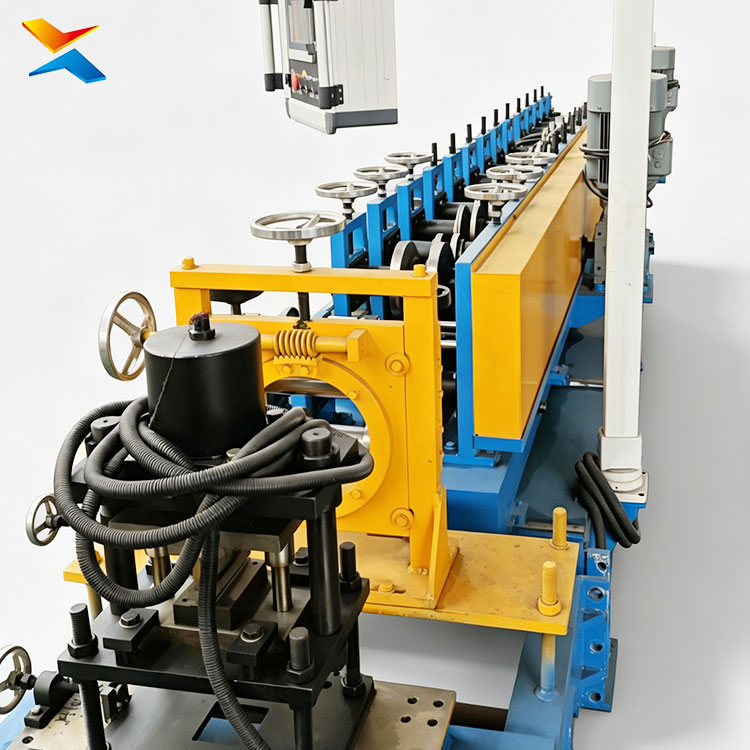

- Integrated Punching & Cutting: Equipped with a high-speed hydraulic or mechanical punching unit, the machine accurately creates service holes, screw dimples, and structural embossments based on pre-programmed specifications. Coupled with an automatic cutting unit, it delivers clean, burr-free edges with exact length tolerances.
- Robust & Durable Construction: Built with a heavy-duty main frame and premium, wear-resistant components, the machine is engineered to withstand continuous, high-load operations. This rugged architecture minimizes vibration, extends tooling life, and ensures long-term operational stability.
- Versatile Profile Compatibility: Designed with high flexibility, this automatic framing line can be customized to manufacture a wide variety of light steel keel profiles, including C-studs, U-tracks, and specialized ceiling channels, allowing manufacturers to meet diverse architectural and engineering requirements.
Applications
This automatic collection steel framing line is essential for producing structural components used in:
- Suspended ceiling grids and furring channels
- Drywall partition walls and interior framing systems
- Prefabricated and modular residential/commercial buildings
- Light steel villa construction and industrial steel-framed structures
Value Proposition
By combining intelligent PLC touch screen control with an automatic collection system, this Keel Machine empowers manufacturers to achieve unmatched operational efficiency and product consistency. It drastically reduces manual labor costs and handling time while delivering high-precision steel framing components, providing a highly reliable and cost-effective manufacturing solution for the modern light steel construction market.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
