Glazed Tile Roll Forming Machine | Curved Glazed Roof Tile Making Machine Supplier for Steel Building

Curved glazed roof tile making machine for steel buildings — a formed metal panel carrying the appearance of antique ceramic tile. The machine forms coated steel coil into curved roofing and façade panels whose surface reads as rows of individual antique tiles.

It works in two rhythms. Continuous roll forming produces the arc of the tile across the panel. A pitch-stamping device then presses a segment line into every peak, dividing the arc along its length into tile courses. The finished panel therefore reads as laid tile rather than as a plain curved wave.

That one addition is the whole difference between this machine and an arc roll forming machine, and it is also what places the glazed tile machine in a higher price band than a comparable arc machine. Both machines form the same kind of arc; only this one divides it into tiles.

The panel is metal, and that is the commercial point on a steel building.

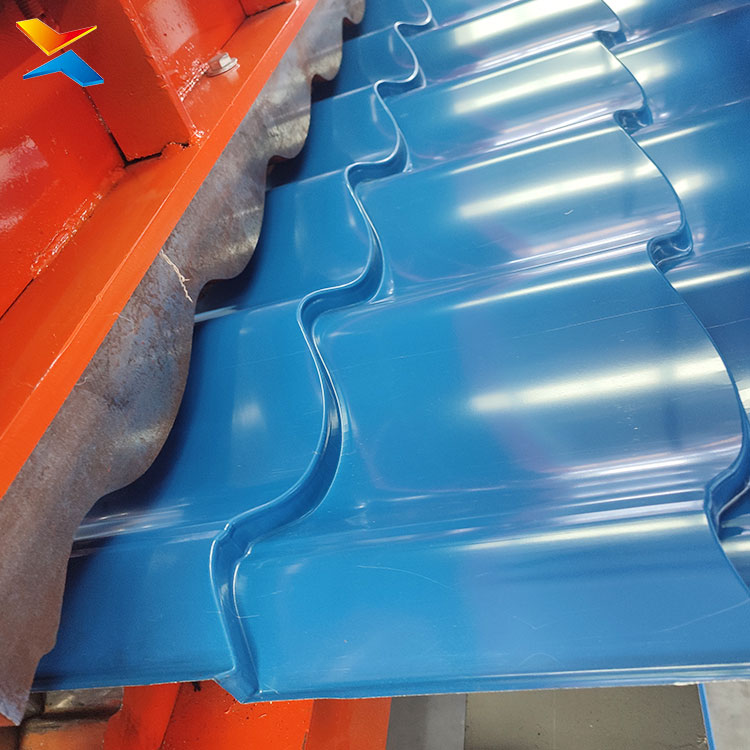

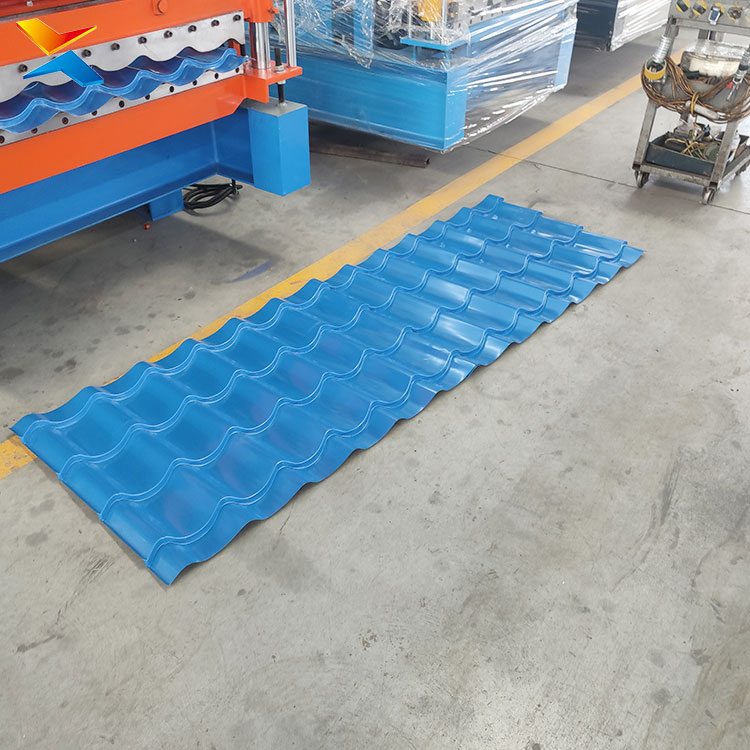

What leaves the machine is thin-gauge colour-coated steel, formed into a tile profile. It is not fired clay, not ceramic, and not PVC or resin board. That is what makes the panel usable on a steel building: the appearance of traditional roof tile without the structural penalty of real tile. A roof, a façade or an entire elevation can carry an antique idiom on a light steel structure, formed to the building’s own lengths and closed quickly, with the colour coming from the coil’s coating system rather than from tiles laid piece by piece.

Within this family there is a build recorded as able to run both colour-coated steel glazed tile and resin tile, the tooling being changed between the two materials and the pitch adjusted. It suits a workshop serving both material markets from one machine rather than buying two.

“Curved” describes different products, and confusing them is the expensive mistake.

The word curved is used in the roofing trade for at least three different things, and a buyer who does not separate them can buy a machine that makes the wrong product.

A tile that is curved across its width. This is the arc in the panel’s cross-section — the profile of the tile itself, formed by rolls as the strip passes through. It is what this machine produces, together with the tile divisions pressed along it.

A panel that is curved along its length. Here the flat or formed panel is bent lengthwise, so that the roof itself is curved in the vertical plane — a barrel roof, an arched canopy, a curved eaves line. That curvature is not produced by the roll forming machine. It is produced by a curving machine that follows the forming line and bends the finished panel, and on a roof of that kind the two machines work together: the roll former makes the tile panel, and the curving machine bends it. A buyer who needs a curved roof and buys only a roll former has half the requirement.

A building that is curved in plan. Here the building’s footprint is curved or radiused, so the roof planes sweep horizontally. The panels are still straight for practical purposes; what changes is how the panels are set out and cut as the roof follows the curve. This is a roofing layout question rather than a machine question, but it changes the mix of panel lengths a project consumes, which is worth knowing before the machine is specified.

The naming convention makes the distinction readable in a quotation. Where a machine’s name carries the character for peak, it is a glazed tile machine — it has the pitch-stamping device. Where it carries only the character for wave, it is an arc machine, with a plain continuous profile. A glazed tile machine sits above a comparable arc machine in price, and a servo-driven version sits above a standard version. The distinction between the two families is therefore the largest single commercial decision in the purchase rather than a matter of appearance.

Peak height governs the rest of the build.

The deeper the peak, the more forming passes the machine needs in order to bring the strip into the arc gradually and produce a panel that is flat and consistent along its length. Almost everything else in the machine’s build follows from that one figure.

The forming pass count in turn drives the frame class, the shaft diameter and the motor power. Lighter frames carry a shallower arc; standard frames take the middle of the range; medium and deep arc work moves to heavier frames; and the heaviest work in the family uses a portal-style heavy frame, which the factory’s records describe as an industry-heavy specification rather than a common one. Where a quotation offers a light pass count for a deep peak, it is describing a different class of machine.

Mass belongs to the same argument on deep arc work. These machines are built heavy, and the mass is what keeps the forming stations from deflecting under a deep peak — a station that deflects does not form the arc accurately, and the error appears in every panel.

Material and gauge.

This family forms thin-gauge colour-coated steel coil. A deep peak deforms the material heavily and is not suited to thick plate, while the heaviest builds in the family extend to a somewhat thicker gauge because their frames and drives are built to move that material. The gauge that forms cleanly at one peak height is not automatically the gauge that forms cleanly at another, so the gauge to be run is confirmed for the specific model rather than inferred from a general figure.

Coil width matters as much as thickness, and for a practical reason: the machine’s feed width must correspond to a coil the buyer can actually obtain locally. A machine built for a feed width that no supplier in the market carries is a machine that will stand idle.

Pitch decides how the tile looks.

The pitch is the height of one tile course. Small pitches give a fine, dense antique look suited to high-end façades and to roofs with a Tang or Song idiom. Medium pitches are the mainstream specification of the range: the volume seller, and the one that best balances architectural detail against how much material the roof consumes. Large pitches give broad, high-relief peaks in a Qing-style idiom, for temples, villas and garden buildings.

A pitch is not a free variable that a buyer can simply name. Each pitch corresponds to a designed stamping mould, and pitch design is a long-standing engineering function here rather than a catalogue entry: the records cover pitch design across a wide span of values. A pitch that is not already in the archive is new tooling — a separate engineering step, and one that should be answered in writing rather than assumed.

The drive decides how regular the tile pattern is.

Where the product must look consistent across an entire roof or elevation, the drive decides the result. A servo motor with a bevel gear arrangement positions each tile division far more precisely than a clutch-and-brake arrangement, and the difference shows over the many repetitions required across one elevation — which is exactly how a roof’s regularity is judged. The bevel gear arrangement is also quieter and smoother in service than a chain drive, and it does not stretch or lose its setting progressively as a chain does.

For buyers whose priority is throughput, newer builds in the family move to higher-power drives for faster running and a slightly thicker material, and the most recent additions in the records use a helical gear reducer for better efficiency and a quieter, longer-lived drive.

Curved variants for particular architectural briefs.

The family holds variants that answer specific architectural requirements, and each of them is a tooling decision rather than an adjustment.

Asymmetric arc. One flank of the arc is steeper than the other, so the relief reads deeper than a symmetrical arc of the same height. Recorded for high-end commercial and residential work.

Bamboo-joint profile. The deepest relief in the family combined with a wide pitch, so the panel reads in pronounced segments. Recorded for gardens, temples and boutique hospitality.

Profiles with an additional reinforcing rib. A rib is pressed across the flat between the peaks, raising the panel’s stiffness without increasing its peak height — the way to gain stiffness where the architectural reading must stay as it is.

Half-peak edge design. A partial peak is formed at each edge so that adjoining panels join into complete peaks. Coverage improves, and the joint between panels does not read as an interruption in the tile pattern — which matters most where the roof is seen close up.

Dual-width builds. Two panel widths from one machine, by changing part of the tooling, which avoids a second machine where a project specifies more than one width.

Dual-material builds. One machine able to produce both coated steel glazed tile and resin tile, the tooling changed and the pitch adjusted between them.

Where the curve belongs on a steel building.

The profile family covers a wide range of steel building work, and which member of it is right follows from the building rather than from preference.

A small, dense arc suits integrated housing and light-steel roofs, and in that market the family competes directly with single-layer trapezoidal panels, its advantage being the more attractive arc. Records note this dense-wave work as common in the Middle East market. A medium arc is the mainstream balance of stiffness against weight for plants, warehouses and agricultural buildings. A deep arc carries more for a given material thickness, which is why it is the family’s answer for wide-span buildings.

The glazed tile panel then serves the projects that specify a traditional idiom: villas, mosques and religious buildings, tourist developments, boutique hospitality, and new-classical or new-Chinese elevations. On these, the panel is formed to the building’s own lengths, closes the roof or the elevation quickly, and takes its colour from the coil coating system rather than from tiles laid piece by piece. The panel can be used on walls and screens as well as on roofs, which is an advantage where a project wants the same tile reading across a whole building rather than only on its roof.

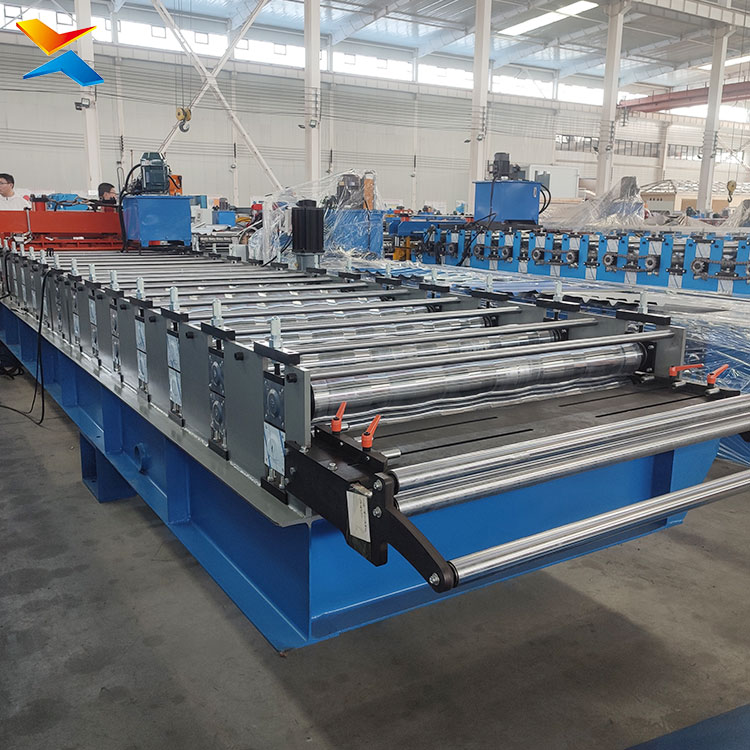

Machine build quality — the process behind the profile.

The manufacturing standard is the same one used for the factory’s single-layer panel machines, and it is visible in the four parts of the machine that decide whether the profile repeats.

The forming dies. Forged from carbon steel and carried through a sequence of operations — rough turning, hardening, finish turning, keyway cutting, polishing and electroplating — so that the working surface is hard, accurate and finished rather than merely shaped. The dies are made in matched pairs, because a tile profile is formed between two rolls and its curve is only as good as the pair.

The shafts. Alloy steel, finish turned and externally ground for roundness and straightness under load. A shaft that is not round, or that deflects, shows up in the finished panel as a curve that varies in depth across the width.

The frames. Machined on CNC gantry mills so that every forming station measures from one flat reference. This is what holds the stations in line and keeps the shaft centres at their positions — and a frame that is not machined this way cannot be corrected later by adjusting the tooling.

The welding and the finish. Shielded welding, with the surfaces shot blasted and then electrostatically sprayed and baked for protection.

Product features and advantages.

Built around the tile appearance, not only the panel. The machine is specified by the tile pitch and peak height the building’s design calls for, because those are what the finished roof reads as.

Forming and pitch stamping on one machine. The arc is formed and the tile division pressed in the same pass, so the panel emerges complete and is cut to length at the end of the line rather than being worked again afterwards.

Pitch positioning positively controlled on the servo build. With a servo motor and bevel gear arrangement the strip advance is controlled rather than released, so tile divisions hold their spacing along a panel and from panel to panel.

Transmission that keeps its setting. The bevel gear arrangement is quieter than a chain and does not stretch or lose accuracy progressively with wear; the newer builds use a helical gear reducer for efficiency and a longer-lived drive.

Forming tooling built for the profile. The pass count, frame class, shaft diameter and motor power are set to the peak height of the profile being produced, rather than a deep peak being pulled into shape in too few passes on a frame too light to hold it.

Pitch tooling built for the pitch. The stamping mould is made for the pitch the profile is designed around, and pitch design across a wide span of values is a long-standing capability here rather than a catalogue selection.

A family of variants rather than one profile. Asymmetric arc, bamboo-joint, ribbed profiles, half-peak edge design, dual-width and dual-material builds, so that a specific architectural brief can be answered with the appropriate profile instead of the nearest available one.

Panels formed to the building’s own lengths. The machine cuts to length within the production run, so a roof or an elevation is closed with panels made to the sizes it needs.

Roof and façade from the same panel. The same profile can be used on the roof, on walls and on screens, so a building carries one tile reading rather than several.

Built for the destination electrical supply. Machines are configured for the voltage, frequency and phase of the installation site.

Factory direct. The machine is built by the manufacturer and supplied direct, so the profile, pitch, peak height, panel width, gauge and drive arrangement are settled with the people who build the machine, and the closest production-proven profile in the archive is identified before tooling is committed — rather than a machine being selected from a fixed list.

The machine in Middle East conditions.

The region’s steel building work includes a substantial amount of glazed tile and curved panel requirement, concentrated in the buildings where a traditional idiom is wanted: mosques and religious buildings, majlis and guest reception structures, hospitality and resort buildings, showrooms and commercial frontages, entrance and gate structures, staff and utility buildings on larger sites, and villas. On most of those, the roof and the elevation are parts of how the building presents itself, which is why a formed tile panel is specified at all rather than plain sheeting.

Two exposure conditions shape the specification, and both of them put the emphasis on what the machine cannot control.

Near-coastal humidity and salt-laden air. Across the Gulf coast, the air carries salt, and a formed panel is exposed to it on every edge, every fixing and every cut. The panel field is protected by its coating; corrosion begins at the details. The machine forms the geometry, and the coating system the buyer chooses decides how long the appearance survives — so a durability question answered with a number rather than with a coil and coating specification is an answer to a different question.

Intense solar loading and strong thermal cycling inland. Inland, the panel is exposed to high solar load by day and to a wide swing between day and night, and a metal panel moves with the temperature. On a curved panel and its fixings that movement has to be provided for in the roof detail rather than left to the installer’s judgement.

Wind-blown dust and sand. Dust settles into the tile divisions and the arc troughs, which is where a patterned panel holds it in a way plain sheeting does not, and the roof is cleaned rather than left. Sharp material carried by strong wind also abrades the coating at the exposed arcs and edges, which is where the finish is lost first.

Intense rain in a short season. Rainfall in the region is concentrated, and when it comes it comes hard. The roof has to pass an intense event quickly; on a tile profile the water’s route off the plane follows the arcs and the divisions, and the overlapping edges do the sealing, so the laps and the pitch relationship between them are set by the profile rather than by the installation.

The flat-roof context. A large part of the region’s building is on flat roofs, and this is worth stating plainly: the machine makes panels for a roof or an elevation designed to carry a curved tiled surface. It does not convert a flat roof into a pitched or curved one. The steel building projects this machine serves are the ones whose design already calls for a tiled or curved surface — and in the region that is the religious, hospitality, residential and commercial work listed above rather than industrial sheds.

Service and support.

Machines are supplied with documentation covering the machine, including the operating manual, the electrical drawings and the arrangement of the forming sequence, together with the profile, pitch and panel width the tooling was made for. Installation and commissioning are carried out with technicians attending site, and operator training is provided so that the profile is set up correctly, the pitch device is set and checked, the panel lengths a project needs are set in the control, and panels are produced and inspected to the standard the building’s appearance requires. Illustrated manuals and video guidance cover the settings used most often, including changing a profile and checking the regularity of the tile divisions, and the routine attention the machine needs where heat and dust are constant. Engineering support is available for technical questions through the working life of the machine, and spare parts are supplied, with the stamping mould, the forming dies and the transmission components given particular attention.

Supplied to the Gulf and neighbouring markets.

Products from this family have been supplied into the Gulf region and its neighbourhood, and the factory’s drawing and customer records for this family include customers in the Middle East — among them Dubai in the United Arab Emirates, Saudi Arabia and Turkey — alongside other export markets. Asymmetric-arc glazed tile work in particular is recorded as having gone to Dubai. Records covering the specific models and projects involved are available on request.

The machine is offered factory direct for steel building projects in the UAE, Saudi Arabia and the wider region: a lightweight metal panel formed from coated steel coil, giving the appearance of antique roof tile on a steel building rather than laid as ceramic tile.

♦ COMPANY PROFILE:

    Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

Metal roll forming is a continuous, automated metal fabrication process used to shape long strips of sheet metal (usually coiled steel or aluminum) into specific, uniform cross-sectional profiles.

Unlike traditional metal bending techniques like press braking—which shapes sheets batch by batch—roll forming operates as a continuous production line, making it one of the most efficient manufacturing methods for structural profiles, roofing panels, and automotive components.

How the Metal Roll Forming Process Works

The process passes coil stock through a series of consecutive roller dies to incrementally shape the metal into a finished cross-section:

1. Uncoiling: A heavy coil of sheet metal (often pre-painted, galvanized, or stainless steel) is mounted onto a decoiler and fed continuously into the line.

2. Progressive Forming: The strip passes through a sequence of mating roller stations (known as flower patterns). Each set of rollers gradually bends the metal by a few degrees. By making incremental bends, the process avoids overstressing the material or cracking protective coatings.

3. In-Line Processing (Optional): Pre-punching, post-punching, slitting, or embossing can be integrated directly into the automated line before or after forming.

4. Cutting to Length: Once the final profile is shaped, an automated flying shear or hydraulic cutter cuts the continuous panel into precise custom lengths without interrupting the line speed.

Key Advantages of Metal Roll Forming

• Continuous High Output: Roll forming lines operate at high speeds (typically 20–50 meters per minute), significantly outperforming press brakes for mass production.

• Tight Dimensional Tolerances: Advanced PLC automation and precision-machined rollers ensure strict dimensional consistency across every piece produced.

• Material & Cost Efficiency: Minimizes scrap metal waste and eliminates extra handling steps by integrating punching, bending, and cutting into a single automated line.

• Design Flexibility & Surface Protection: Capable of producing complex, multi-bend profiles while preserving surface finishes, galvanization, and paint coats.

Common Applications

Metal roll forming is widely used across multiple heavy-duty industries:

Metal roll forming is a continuous, high-volume manufacturing process that bends long strips of sheet metal—usually coiled steel or aluminum—into custom cross-sectional profiles.

Unlike traditional press braking or stamping, which processes metal in single discrete batches, roll forming shapes metal incrementally at room temperature (cold forming) through a series of consecutive roller dies.

How Metal Roll Forming Works

The roll forming process relies on a line of paired roller stations that gradually shape the metal in steps:

1. Coil Unloading & Uncoiling: A heavy coil of flat metal strip is loaded onto an uncoiler and fed continuously into the machine.

2. In-Line Pre-Punching: Automatic presses notch, punch holes, or create slots in the flat strip prior to shaping.

3. Progressive Roll Shaping: The strip passes through multiple sets of upper and lower rollers (called roll stations). Each station bends the metal slightly more than the previous one, preventing stress fractures and material strain.

4. Cutting & Shearing: A flying hydraulic shear cuts the finished profile to exact target lengths without stopping the continuous line.

Key Benefits of Roll Forming

• High Speed & Efficiency: Lines operate at speeds up to 20–50 meters per minute with minimal manual labor required.

• Consistent Quality & Precision: Heavy-duty tool steel rollers controlled by PLC automation ensure exact tolerances across thousands of identical panels.

• Material Waste Reduction: Continuous coil processing generates virtually zero scrap compared to conventional sheet stamping or trimming.

• Complex Profiles: Produces intricate shapes—such as standing seam panels, hat channels, C/Z purlins, and tubular sections—in a single continuous pass.

Common Applications

• Building & Construction: Roof tiles, wall cladding panels, gutters, structural purlins, and steel framing studs.

• Automotive: Bumper beams, door impact bars, and chassis structural rails.

• Solar & Energy: Solar panel mounting racks and support structures.

• Storage & Industrial: Warehouse racking systems, shelving, and heavy-duty tracks.
