Double Layer Roll Forming Machine for Two Roof Profiles in One Machine Factory

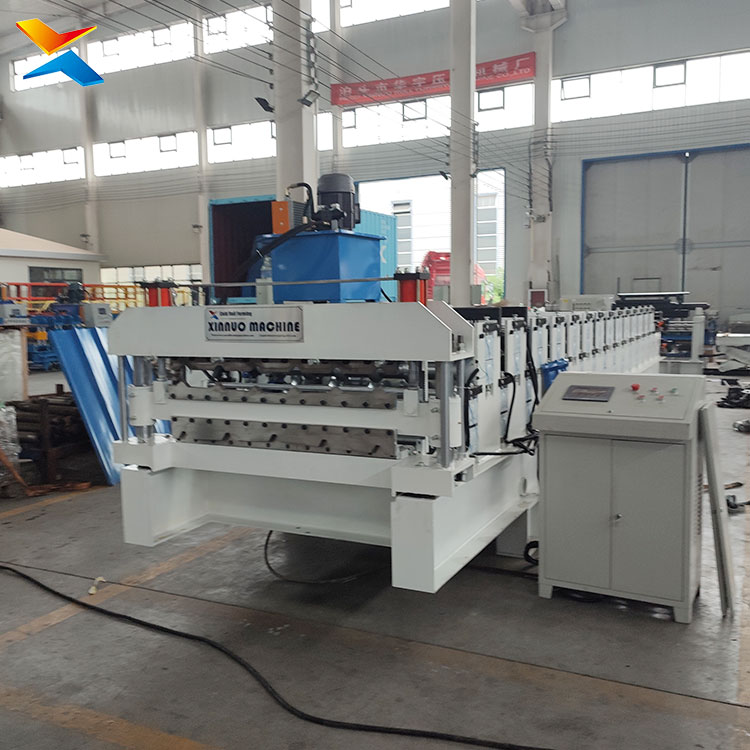

A double layer roll forming machine carries two complete sets of forming rolls inside one frame, stacked one above the other. The upper set is tooled for one roof profile, the lower set for another, and the coil is directed into whichever set is running. The second profile is therefore not a second machine standing beside the first — it is a second set of tooling living inside the same frame, sharing the same main drive, the same floor space and the same commissioning visit.

That sentence describes both the advantage and the limit of the design, and a buyer who understands it before ordering avoids the one mistake that matters: expecting two profiles at once.

Two profiles in one machine does not mean two profiles at a time.

Only one layer runs at any moment. The two roll sets are stacked vertically in a single frame and driven from a common source, so the machine produces one profile until the strip path is changed and then produces the other. It does not split the coil, it does not run two coils, and it does not double output.

What it does instead is remove a whole machine from the equation. A producer who needs two roof profiles normally buys two lines: two frames, two drives, two control systems, two footprints, two installations, two commissioning visits. The double layer machine collapses that into one of each, with the second profile costing an additional set of rolls rather than an additional machine. The saving is in capital, floor area and commissioning time — not in throughput.

That distinction decides whether the machine is the right answer. A producer whose two profiles both sell in continuous volume needs two machines, because one machine can only make one thing at a time and the second profile will sit waiting while the first runs. A producer whose second profile is a steady but smaller part of the business — a dealer covering two market segments, a workshop that makes industrial roofing most weeks and decorative roofing some weeks — gets the second profile without paying for a second line. The double layer machine is a machine for a product mix, not for a product volume.

What actually changes when the profile changes.

The change is a strip path change, not a rebuild. Guide plates and baffles at the entry are moved so the incoming strip is presented to the upper roll set instead of the lower one, or the reverse. No roll is removed, no shaft is exchanged, and no tooling is lifted out of the frame. That is why the changeover is measured in minutes rather than in a shift, and why the same operator who runs the machine can make it.

What lengthens the change is not the rolls but the entry. When the two profiles run from the same strip width, they share one decoiler and one feed arrangement, and the change is a guide adjustment. When the widths differ, the entry has to be re-set for the second width as well, and that is hand work at the machine rather than an adjustment of the path alone. This is why width compatibility is settled at the design stage and not discovered at the first changeover.

What the frame gives up in order to carry two profiles.

A double layer machine is not two single layer machines drawn on one page. Stacking a second roll set above the first puts the weight of both into one frame, and puts the upper set high above the floor.

The frame is therefore built one grade heavier than a single layer machine of either profile would need. The heavier of the two layers sets the requirement, and the vibration of the upper set working above the lower one is added on top of it. The transmission is sized the same way: the chain is specified for the layer that demands the higher torque, not for the average of the two, because a chain that is adequate for one layer and marginal for the other will be the part that fails first.

The consequence is a machine that is heavier and taller than either single layer machine it replaces. Heavier matters for floor loading and for lifting at installation. Taller matters every day: the upper roll set sits above the lower one, so the machine occupies height as well as floor area, and the coil still has to be brought to the entry at a height the loader can reach. A workshop with a low portal frame or a restricted crane hook has to check this before the machine is built, not after it arrives.

The four things that decide whether a pair of profiles belongs in one frame.

Not every combination of two profiles can be stacked. Four conditions decide it, and all four are properties of the pair, not of either profile alone.

Pass balance. The two layers share one drive, so they run at one line speed, and rolls of different diameter turn at different surface speeds for the same shaft speed. If one layer needs a great many more passes than the other, the strip is being gripped by a long train on one side and a short one on the other, and the layer with the shorter train runs at a speed the longer one is not delivering. The result is uneven pulling, and it shows up as defects on the layer with fewer passes — not on the heavier one. A pair whose pass counts sit close together runs cleanly with no correction. A moderate difference can be handled by giving the slower layer more motor power or adjusting the chain ratio. A large difference has to be evaluated by an engineer before the machine is quoted, because the correction is a change to the drive, not a change to the tooling.

Entry width. Two profiles of the same strip width share one decoiler and one feed, and the changeover stays a guide adjustment. A small difference can be absorbed by the guide blocks. A large difference means two guide systems in one entry, moved by hand at every changeover — the machine still works, but the change is now a task rather than an adjustment, and that is a labour question the buyer should price in.

Frame grade. Determined by the heavier layer, one grade above what that layer would need on its own.

Chain grade. Determined by the higher-torque layer, one grade above what that layer would need on its own.

These four are why a double layer machine is specified as a pair and not as two independent requirements. Two profiles that are each perfectly reasonable on their own can be a poor pair — same profile family, very different widths, or very different pass counts. The pairing check is the first thing that has to happen, and it happens before anything is drawn.

The combination families, and what each costs in difficulty.

Trapezoidal with trapezoidal. Both layers are plain roll forming, so both sets of tooling are built the same way and the machine is the least demanding of the family to build and to commission. This is the pairing that most often serves a producer making two sheet widths for wall and roof from one floor.

Trapezoidal with glazed tile. The most commonly ordered combination, and the reason is commercial rather than technical: one machine covers the plain structural roof market and the decorative roof market. The glazed layer adds a pitch-stamping step inside the same frame, so the machine carries a second process as well as a second profile, and the glazed layer is the one that needs attention during commissioning.

Arc with trapezoidal. The most exported combination, because it covers the two roof families that most markets actually build: the wave-form industrial roof and the trapezoidal structural roof. Neither layer is difficult on its own; the pairing question is pass balance and width.

Arc with glazed tile. The most demanding of the four. The arc layer is continuous forming, which is stable, while the glazed layer needs a pitch positioned accurately on every peak, and the two are driven from one source. The transmission therefore has to satisfy the higher of the two torque demands while the glazed layer’s pitch stays where it was set. This combination is built, and it is built for markets that contain both industrial buildings and traditional-looking roofs — but it is not the combination to choose in order to save money.

Arc with arc. Both layers form wave, but at different wave heights or pitches, which is what the pairing is for. The constraint is the height difference: two wave profiles of very different depth put the two roll sets at very different heights inside one frame, and a large difference makes the frame awkward to build and to work on. Keeping the two wave depths reasonably close is what makes this combination practical.

One pair needs a different machine rather than a different tooling set.

If both layers are glazed tile profiles, the machine needs two independent pitch systems, because each layer stamps its own peak pattern and the two cannot be tied to one another. With standard motors on both layers, pitch error accumulates as the line runs, so at least one layer has to be on servo control, and the usual arrangement is a chain drive for the upper layer with an independent servo drive for the lower one. That is a different machine, not a variant of the standard double layer. A buyer who needs two decorative profiles should raise it at the start, because the answer changes the drive architecture.

The same principle extends to three layers, with a boundary worth knowing. A three-layer machine stacks a third roll set into the same frame and shares the same drive logic, but the frame grows taller again and the alignment work multiplies — the commissioning is a different order of task from the two-layer machine. It is built for showrooms and for exporters serving very mixed demand, not as a general upgrade.

Where the machine earns its money, and where it does not.

The double layer machine pays for itself where two profiles are sold from one location and neither one alone would justify a full line. A dealer stocking two roof profiles — one for industrial sheds and one for villas — carries both without carrying two buildings’ worth of equipment. A workshop that takes both kinds of work keeps the second capability available without keeping a second operator station idle. A producer in a market where the two profiles sell to different customers serves both from one floor, one power connection and one maintenance routine.

It stops paying where the two profiles are both running at volume. One machine makes one thing at a time, so a business that needs both profiles every week is buying a queue, not a capability. In that case two machines cost more and produce more, and the comparison is not between two prices but between two output levels.

It also stops paying where the pair is badly matched. A large pass difference, or two very different strip widths, turns a machine that looked efficient into a machine with a slow changeover and a layer that never runs quite clean. Both problems are visible at the specification stage, and both are the reason the pairing check comes first.

The Middle East conditions that act on this particular machine.

The machine is one frame with two roll sets in it, so the strip has to be brought to an entry on a machine that is taller than a single layer machine. In a workshop with a low portal or a restricted lifting position, that is a layout constraint before it is anything else. The upper set is also the one that is worked on from height, so access around the frame matters for both the operator and whoever adjusts the guides.

Heat acts on the machine through its drive and its control rather than through the rolls. A machine that carries two tooling sets runs the same drive harder on the heavier layer, and the electrical and hydraulic side is where ambient temperature shows up first. Dust acts on the strip, and on this machine the strip passes through whichever layer is running — the second profile does not get a cleaner path than the first, so a workshop that fights dust fights it once, not twice.

The commercial pattern the machine fits in this region is a producer or dealer who needs a structural roof profile for industrial and warehouse work and a shaped profile for villas and commercial frontage. The industrial profile is the one that pays the bills, and the second profile is the one that wins the smaller, better-margin jobs. That is exactly the mix a double layer machine is built for — and it is also why the pairing has to be chosen around the profile that runs most, with the second profile placed in the layer that suits it rather than the other way round.

What arrives, and what the machine needs in order to run.

The machine arrives as one frame with two tooling sets installed and aligned, a main drive, an entry with the guide arrangement for both layers, and a control system. It needs a level floor that will carry the weight of the stacked frame, a power supply sized for the drive, and access for a coil to be presented to the entry at the height the machine was built to. The decoiler, the run-out table and the roof accessories are separate items of scope; the scope that covers the forming machine does not thereby cover them.

Commissioning is where the second layer costs time. A single layer machine has one set of rolls to align. A double layer machine has two, in one frame, and the two have to be true to each other as well as to the strip — which is why the installation is planned around the pairing rather than around the frame alone. The tooling drawings, the profile sections and the strip width are what the machine is set against; they are also what the buyer should have settled before the machine is built, because a pair that is re-chosen afterwards is a pair that has to be re-tooled.

In one sentence: the double layer machine sells capability, not capacity. It gives a producer two roof profiles from one frame, one drive and one floor — and it gives them one at a time, which is the whole reason it can be priced below two machines and the whole reason it is the wrong machine for a business that needs both profiles at once.

♦ COMPANY PROFILE:

    Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

Metal roll forming is a continuous, automated metal fabrication process used to shape long strips of sheet metal (usually coiled steel or aluminum) into specific, uniform cross-sectional profiles.

Unlike traditional metal bending techniques like press braking—which shapes sheets batch by batch—roll forming operates as a continuous production line, making it one of the most efficient manufacturing methods for structural profiles, roofing panels, and automotive components.

How the Metal Roll Forming Process Works

The process passes coil stock through a series of consecutive roller dies to incrementally shape the metal into a finished cross-section:

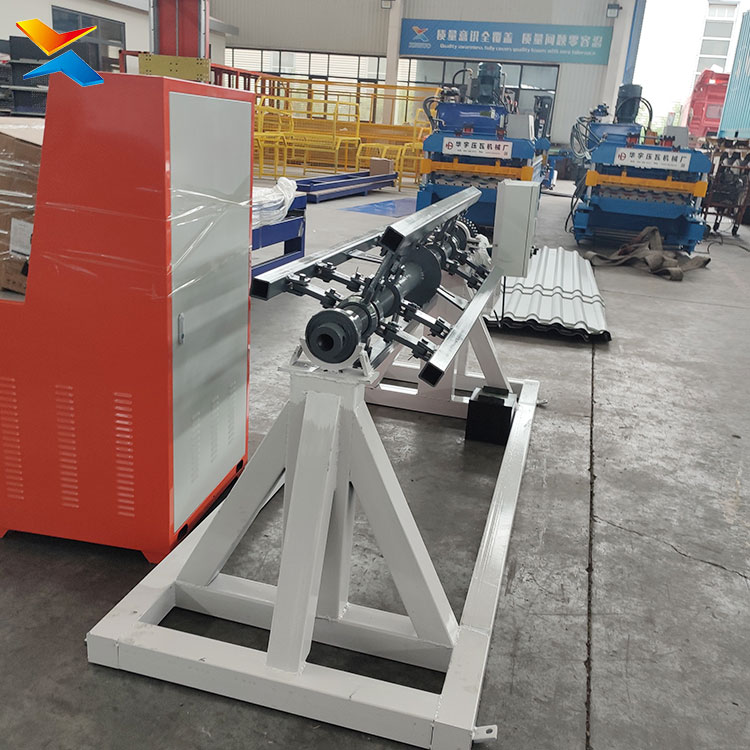

1. Uncoiling: A heavy coil of sheet metal (often pre-painted, galvanized, or stainless steel) is mounted onto a decoiler and fed continuously into the line.

2. Progressive Forming: The strip passes through a sequence of mating roller stations (known as flower patterns). Each set of rollers gradually bends the metal by a few degrees. By making incremental bends, the process avoids overstressing the material or cracking protective coatings.

3. In-Line Processing (Optional): Pre-punching, post-punching, slitting, or embossing can be integrated directly into the automated line before or after forming.

4. Cutting to Length: Once the final profile is shaped, an automated flying shear or hydraulic cutter cuts the continuous panel into precise custom lengths without interrupting the line speed.

Key Advantages of Metal Roll Forming

• Continuous High Output: Roll forming lines operate at high speeds (typically 20–50 meters per minute), significantly outperforming press brakes for mass production.

• Tight Dimensional Tolerances: Advanced PLC automation and precision-machined rollers ensure strict dimensional consistency across every piece produced.

• Material & Cost Efficiency: Minimizes scrap metal waste and eliminates extra handling steps by integrating punching, bending, and cutting into a single automated line.

• Design Flexibility & Surface Protection: Capable of producing complex, multi-bend profiles while preserving surface finishes, galvanization, and paint coats.

Common Applications

Metal roll forming is widely used across multiple heavy-duty industries:

Metal roll forming is a continuous, high-volume manufacturing process that bends long strips of sheet metal—usually coiled steel or aluminum—into custom cross-sectional profiles.

Unlike traditional press braking or stamping, which processes metal in single discrete batches, roll forming shapes metal incrementally at room temperature (cold forming) through a series of consecutive roller dies.

How Metal Roll Forming Works

The roll forming process relies on a line of paired roller stations that gradually shape the metal in steps:

1. Coil Unloading & Uncoiling: A heavy coil of flat metal strip is loaded onto an uncoiler and fed continuously into the machine.

2. In-Line Pre-Punching: Automatic presses notch, punch holes, or create slots in the flat strip prior to shaping.

3. Progressive Roll Shaping: The strip passes through multiple sets of upper and lower rollers (called roll stations). Each station bends the metal slightly more than the previous one, preventing stress fractures and material strain.

4. Cutting & Shearing: A flying hydraulic shear cuts the finished profile to exact target lengths without stopping the continuous line.

Key Benefits of Roll Forming

• High Speed & Efficiency: Lines operate at speeds up to 20–50 meters per minute with minimal manual labor required.

• Consistent Quality & Precision: Heavy-duty tool steel rollers controlled by PLC automation ensure exact tolerances across thousands of identical panels.

• Material Waste Reduction: Continuous coil processing generates virtually zero scrap compared to conventional sheet stamping or trimming.

• Complex Profiles: Produces intricate shapes—such as standing seam panels, hat channels, C/Z purlins, and tubular sections—in a single continuous pass.

Common Applications

• Building & Construction: Roof tiles, wall cladding panels, gutters, structural purlins, and steel framing studs.

• Automotive: Bumper beams, door impact bars, and chassis structural rails.

• Solar & Energy: Solar panel mounting racks and support structures.

• Storage & Industrial: Warehouse racking systems, shelving, and heavy-duty tracks.
