Export Standard Truck Box Board Machine | High Speed Carriage Plate Roll Former for South America & Africa Market

Short Description:

The Export Standard Truck Box Board Machine is a robust, high-speed roll forming system specifically engineered to meet the demanding requirements of international markets, particularly South America and Africa. Designed for durability, ease of maintenance, and cost-effective mass production, this equipment seamlessly transforms steel coils into premium carriage plates and truck side panels. Built to international export standards, it features reinforced structural components, user-friendly PLC automation, and optimized packaging for secure overseas shipping. This high-speed carriage plate roll former is the ideal strategic investment for international fabricators and truck manufacturers seeking reliable, high-performance equipment to dominate regional commercial vehicle markets.


Product Detail

configuration

COMPANY PROFILE:

Advantage of Roll Forming Machine: Efficiency, Precision, and Superior ROI

what is metal roll forming?

Product Tags

Product Overview
The Export Standard Truck Box Board Machine is a robust, high-speed roll forming system specifically engineered to meet the demanding requirements of international markets, particularly South America and Africa. Designed for durability, ease of maintenance, and cost-effective mass production, this equipment seamlessly transforms steel coils into premium carriage plates and truck side panels. Built to international export standards, it features reinforced structural components, user-friendly PLC automation, and optimized packaging for secure overseas shipping. This high-speed carriage plate roll former is the ideal strategic investment for international fabricators and truck manufacturers seeking reliable, high-performance equipment to dominate regional commercial vehicle markets.

Key Features & Advantages
  • Export-Standard Durability & Reliability: Engineered specifically for long-distance transport and harsh operating environments, the machine features a heavy-duty, stress-relieved steel chassis and premium-grade, hard-chromed rollers. This robust construction ensures stable, continuous operation and extends the service life of mechanical components, minimizing downtime in remote or demanding industrial settings.
  • High-Speed Continuous Production: Optimized for maximum throughput, the streamlined mechanical layout and precision-calibrated forming stations enable rapid, uninterrupted material feeding and forming. This high-speed capability allows manufacturers to efficiently fulfill large-volume orders for truck body panels, meeting the surging demand in developing logistics and transport sectors.
  • User-Friendly PLC Automation: Governed by a reliable, internationally recognized PLC control system and a multi-language touchscreen HMI, the machine automates the entire workflow. Operators can effortlessly set panel lengths, batch quantities, and punching parameters. The intelligent system ensures high repeatability, precise length counting, and rapid recipe switching, reducing the need for highly specialized technical staff.
  • Integrated Hydraulic Punching & Flying Cut-Off: Designed for manufacturing efficiency, the system includes a high-speed hydraulic punching unit that automatically creates precise mounting and rivet holes during the forming process. Coupled with a continuous hydraulic flying shear, the machine executes clean, burr-free cuts at exact lengths without stopping the production line, maximizing output and minimizing material waste.
  • Optimized for Global Shipping: The machine is designed with export logistics in mind. Key components are engineered to fit securely within standard 40ft containers, and the entire unit is treated with anti-rust coating and wrapped in protective film to withstand ocean freight. Comprehensive English manuals, installation videos, and remote technical support ensure seamless setup and operation upon arrival.
  • Versatile Material Compatibility: Specifically optimized for processing high-strength galvanized steel, color steel, and aluminum coils commonly used in international truck manufacturing. The precision leveling systems and smooth roller surfaces protect protective coatings from damage, ensuring the final carriage plates maintain superior corrosion resistance and structural integrity.
Typical Applications
The high-speed, export-standard truck box boards produced by this machine are essential components for commercial transportation across South America, Africa, and other developing markets, including:
  • Heavy-Duty Freight & Logistics: Manufacturing durable, corrugated side panels and rear doors for long-haul trailers, box trucks, and semi-trailers serving regional and cross-border freight networks.
  • Urban Delivery & Transport: Producing lightweight, high-strength carriage plates for courier vans, parcel delivery trucks, and urban logistics fleets navigating diverse road conditions.
  • Agricultural & Mining Transport: Creating heavy-duty, impact-resistant sideboards and tailgates for agricultural trailers, dump trucks, and mining transport vehicles operating in rugged environments.
  • Specialized Cargo Carriers: Supplying robust, weather-resistant truck body panels for refrigerated containers, flatbeds, and specialized cargo carriers tailored to local transport needs.
Why Choose This Machine?
The Export Standard Truck Box Board Machine is specifically designed for international manufacturers and fabricators who prioritize reliability, ease of use, and cost-effective production. By combining high-speed manufacturing capabilities with export-grade durability and user-friendly automation, it empowers businesses in South America and Africa to consistently produce structurally superior truck body panels while minimizing operational complexity and maintenance costs. Investing in this equipment allows companies to build a dominant, self-sufficient presence in their regional commercial vehicle markets, ultimately driving long-term profitability and sustainable growth.

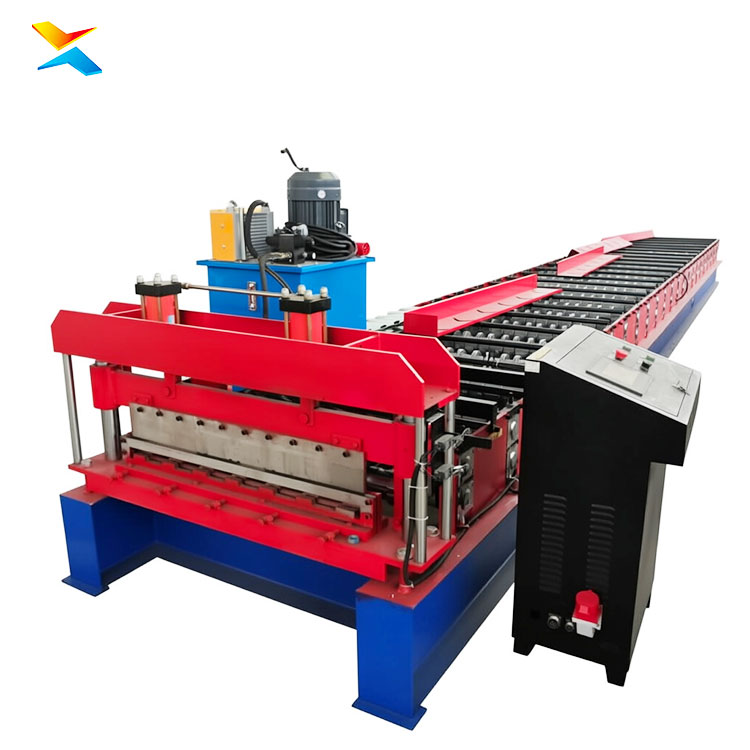

白底图 5 4








  • Previous:
  • Next:

  • 微信图片_20220406094904 微信图片_202204060949041 微信图片_2022040609490423.png

    ♦ COMPANY PROFILE:

        Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

    There are several advantages of using roll forming for your projects:

    • The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
    • Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
    • It can provide better dimensional control than other competing metal forming processes.
    • Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
    • Roll forming is typically a higher speed process.
    • Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
    • Roll forming utilizes material more efficiently than other competing processes.
    • Roll formed shapes can be developed with thinner walls than competing processes

    In modern construction and manufacturing, the roll forming machine (commonly known as a roof tile or sheet metal roll former) has revolutionized profile fabrication. By replacing labor-intensive traditional press brake methods, advanced roll forming technology offers unmatched efficiency, quality, and cost savings for metal roofing and wall panel production.

    Here are the key advantages of implementing a modern roll forming machine in your operations:

    1. Unmatched High Efficiency and Output Speed

    High-speed roll forming lines operate continuously, producing custom metal panels at speeds up to 20–40 meters per minute. This automated process significantly shortens lead times and accelerates project delivery cycles.

    2. High Precision and Consistent Quality

    Engineered with heavy-duty steel frames, high-precision roller dies, and PLC automated control systems, roll formers deliver pinpoint dimensional accuracy. Every panel exhibits uniform thickness, sharp profiles, and precise hole punching, ensuring seamless job-site installation.

    3. Material Efficiency and Reduced Waste

    Continuous roll forming minimizes scrap metal generation compared to conventional stamping. Precise coil feeding and automated hydraulic flying shears ensure optimal material utilization and reduced raw material costs.

    4. Low Maintenance and Extended Durability

    Constructed with heat-treated chrome-plated rollers and robust drive systems, industrial roll forming machines require minimal downtime while delivering a long service life under heavy daily operation.

    Conclusion

    Investing in a reliable roll forming machine boosts productivity, lowers labor costs, and guarantees consistent product quality—delivering maximum long-term return on investment (ROI) for metal fabrication businesses.

    Metal roll forming is a continuous, automated metal fabrication process used to shape long strips of sheet metal (usually coiled steel or aluminum) into specific, uniform cross-sectional profiles.

    Unlike traditional metal bending techniques like press braking—which shapes sheets batch by batch—roll forming operates as a continuous production line, making it one of the most efficient manufacturing methods for structural profiles, roofing panels, and automotive components.

    How the Metal Roll Forming Process Works

    The process passes coil stock through a series of consecutive roller dies to incrementally shape the metal into a finished cross-section:

    1. Uncoiling: A heavy coil of sheet metal (often pre-painted, galvanized, or stainless steel) is mounted onto a decoiler and fed continuously into the line.

    2. Progressive Forming: The strip passes through a sequence of mating roller stations (known as flower patterns). Each set of rollers gradually bends the metal by a few degrees. By making incremental bends, the process avoids overstressing the material or cracking protective coatings.

    3. In-Line Processing (Optional): Pre-punching, post-punching, slitting, or embossing can be integrated directly into the automated line before or after forming.

    4. Cutting to Length: Once the final profile is shaped, an automated flying shear or hydraulic cutter cuts the continuous panel into precise custom lengths without interrupting the line speed.

    Key Advantages of Metal Roll Forming

    • Continuous High Output: Roll forming lines operate at high speeds (typically 20–50 meters per minute), significantly outperforming press brakes for mass production.

    • Tight Dimensional Tolerances: Advanced PLC automation and precision-machined rollers ensure strict dimensional consistency across every piece produced.

    • Material & Cost Efficiency: Minimizes scrap metal waste and eliminates extra handling steps by integrating punching, bending, and cutting into a single automated line.

    • Design Flexibility & Surface Protection: Capable of producing complex, multi-bend profiles while preserving surface finishes, galvanization, and paint coats.

    Common Applications

    Metal roll forming is widely used across multiple heavy-duty industries:

    Industry Common Roll-Formed Products
    Building & Construction Trapezoidal roof tiles, standing seam panels, C/Z purlins, drywall studs, rain gutters
    **Automotive &# What is Metal Roll Forming?

    Metal roll forming is a continuous, high-volume manufacturing process that bends long strips of sheet metal—usually coiled steel or aluminum—into custom cross-sectional profiles.

    Unlike traditional press braking or stamping, which processes metal in single discrete batches, roll forming shapes metal incrementally at room temperature (cold forming) through a series of consecutive roller dies.

    How Metal Roll Forming Works

    The roll forming process relies on a line of paired roller stations that gradually shape the metal in steps:

    1. Coil Unloading & Uncoiling: A heavy coil of flat metal strip is loaded onto an uncoiler and fed continuously into the machine.

    2. In-Line Pre-Punching: Automatic presses notch, punch holes, or create slots in the flat strip prior to shaping.

    3. Progressive Roll Shaping: The strip passes through multiple sets of upper and lower rollers (called roll stations). Each station bends the metal slightly more than the previous one, preventing stress fractures and material strain.

    4. Cutting & Shearing: A flying hydraulic shear cuts the finished profile to exact target lengths without stopping the continuous line.

    Key Benefits of Roll Forming

    • High Speed & Efficiency: Lines operate at speeds up to 20–50 meters per minute with minimal manual labor required.

    • Consistent Quality & Precision: Heavy-duty tool steel rollers controlled by PLC automation ensure exact tolerances across thousands of identical panels.

    • Material Waste Reduction: Continuous coil processing generates virtually zero scrap compared to conventional sheet stamping or trimming.

    • Complex Profiles: Produces intricate shapes—such as standing seam panels, hat channels, C/Z purlins, and tubular sections—in a single continuous pass.

    Common Applications

    • Building & Construction: Roof tiles, wall cladding panels, gutters, structural purlins, and steel framing studs.

    • Automotive: Bumper beams, door impact bars, and chassis structural rails.

    • Solar & Energy: Solar panel mounting racks and support structures.

    • Storage & Industrial: Warehouse racking systems, shelving, and heavy-duty tracks.

  •
