Product Overview
The High Efficiency Freight Car Box Board Machine is a next-generation, energy-saving roll forming system meticulously engineered for the mass production of commercial truck panels and carriage plates. Designed to meet the rigorous demands of modern logistics and vehicle manufacturing, this advanced equipment seamlessly transforms high-strength steel coils into premium, structurally superior freight car box boards. Governed by an intelligent PLC control system and featuring an optimized mechanical architecture, it guarantees exceptional production speeds while drastically reducing power consumption. This energy-saving truck panel roll former is the ultimate strategic asset for manufacturers seeking to maximize operational efficiency, lower utility costs, and supply high-quality, durable truck body components to the booming transportation market.

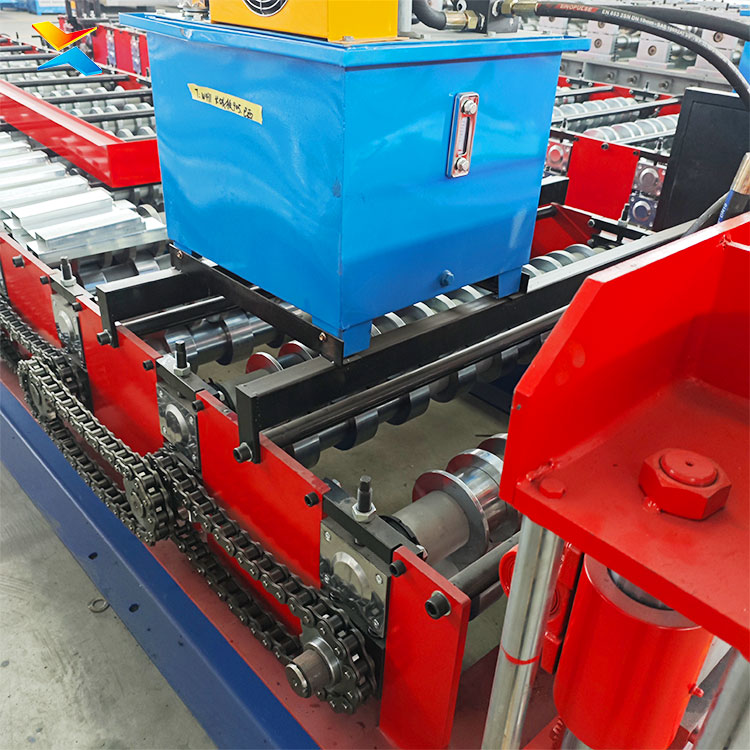

- Energy-Saving & Eco-Friendly Architecture: Designed with sustainability and cost-efficiency in mind, the machine utilizes high-efficiency variable-frequency drive (VFD) motors and an optimized hydraulic system. This intelligent energy management significantly reduces power consumption during both active forming and idle states, lowering overall electricity bills and promoting a greener manufacturing footprint.
- High-Efficiency Continuous Production: Engineered for maximum throughput, the streamlined mechanical layout and precision-calibrated heavy-duty forming stations ensure rapid, uninterrupted material feeding and forming. This high-efficiency design allows manufacturers to effortlessly fulfill large-volume orders and meet tight project deadlines for freight car panels.
- Intelligent PLC Automation: Governed by a cutting-edge Programmable Logic Controller (PLC) and a user-friendly touchscreen HMI, the machine automates the entire workflow. Operators can effortlessly set panel lengths, batch quantities, and punching parameters. The intelligent system ensures high repeatability, precise length counting via encoders, and rapid recipe switching to minimize downtime.

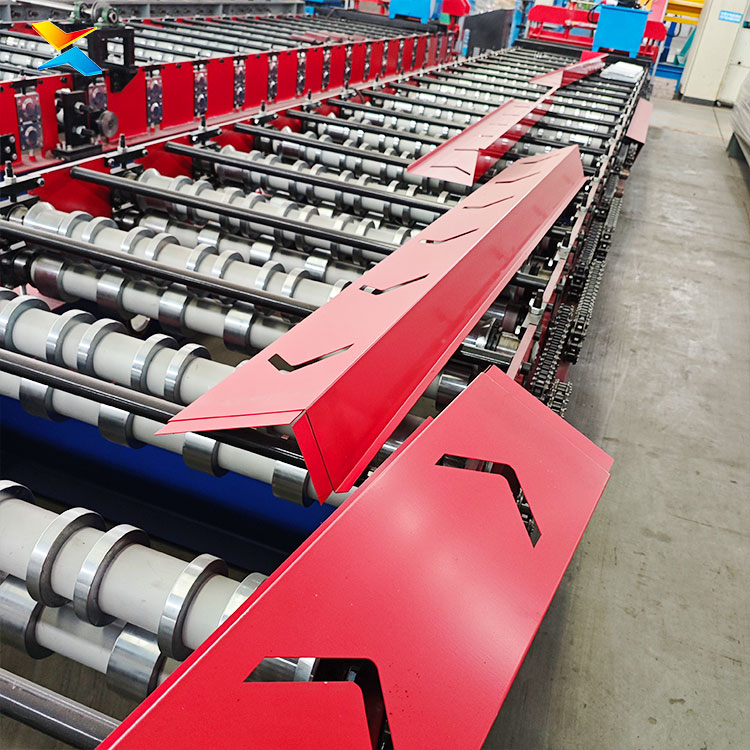

- Precision Roll Forming & Integrated Punching: The forming stations are equipped with meticulously calibrated, hard-chromed rollers crafted from premium tool steel. This guarantees crisp, uniform corrugations and perfect interlocking capabilities for superior structural rigidity. Additionally, the integrated hydraulic punching system can automatically create precise mounting and rivet holes directly during the forming process, eliminating secondary processing.

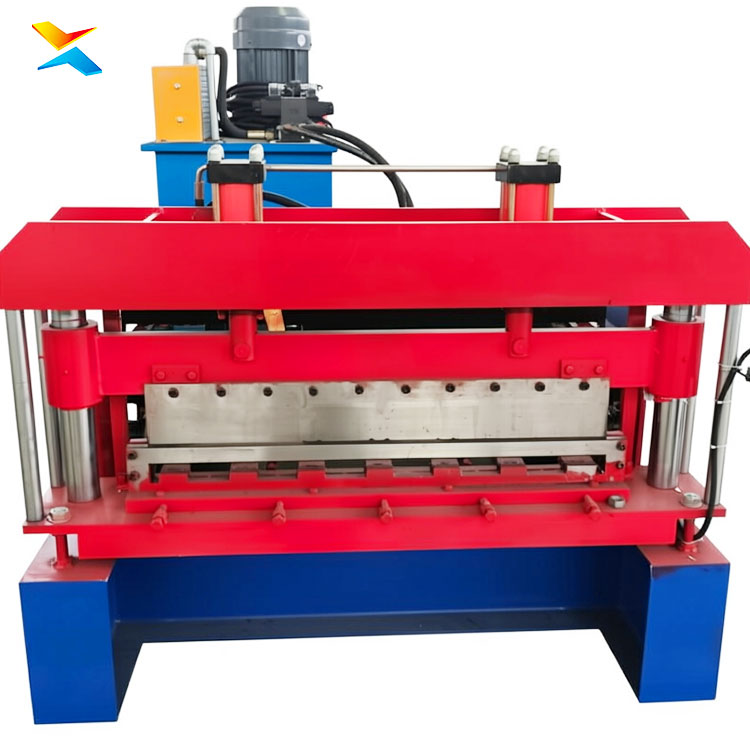

- Continuous Hydraulic Flying Cut-Off: Equipped with an advanced hydraulic flying shear mechanism, the machine dynamically tracks the moving panel to execute clean, burr-free cuts at exact lengths without stopping the production line. This seamless cutting technology maximizes manufacturing efficiency while maintaining strict dimensional tolerances.
- Surface Protection & Material Versatility: Specifically optimized for processing high-strength galvanized steel, color steel, and aluminum coils, the machine’s smooth roller surfaces and precision guide systems prevent scratching or peeling of the protective coatings. This ensures the final freight car box boards maintain their superior corrosion resistance, structural integrity, and long-term durability.
The high-precision, energy-efficient freight car box boards produced by this machine are the foundational components for modern transportation and logistics, widely utilized across diverse sectors, including:
- Heavy-Duty Freight Trucks: Manufacturing durable, corrugated side panels and rear doors for long-haul trailers, box trucks, and semi-trailers.
- Logistics & Delivery Vehicles: Producing lightweight, high-strength carriage plates for courier vans, parcel delivery trucks, and urban logistics fleets.
- Specialized Transport: Supplying robust, weather-resistant truck body panels for refrigerated containers, flatbeds, and specialized cargo carriers.
- Agricultural & Dump Trucks: Creating heavy-duty, impact-resistant sideboards and tailgates for agricultural trailers, dump trucks, and mining transport vehicles.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
