Customized Cold Roll Forming Machine for Light Steel Villa Framing | OEM Metal Stud and Track Production Line

Short Description:

The Customized Cold Roll Forming Machine for Light Steel Villa Framing is a comprehensive, OEM-tailored production line designed specifically for the modern prefabricated construction industry. Engineered to manufacture high-strength metal studs and tracks, this machine serves as the backbone for light steel villa structures, interior partitions, and suspended ceiling systems. By combining advanced cold roll forming technology with intelligent automation, it transforms steel coils into precision framing components, providing builders and manufacturers with a highly efficient, reliable, and fully customizable solution for light steel frame (LSF) construction.


Product Detail

configuration

COMPANY PROFILE:

Advantage of Roll Forming Machine: Efficiency, Precision, and Superior ROI

what is metal roll forming?

Product Tags

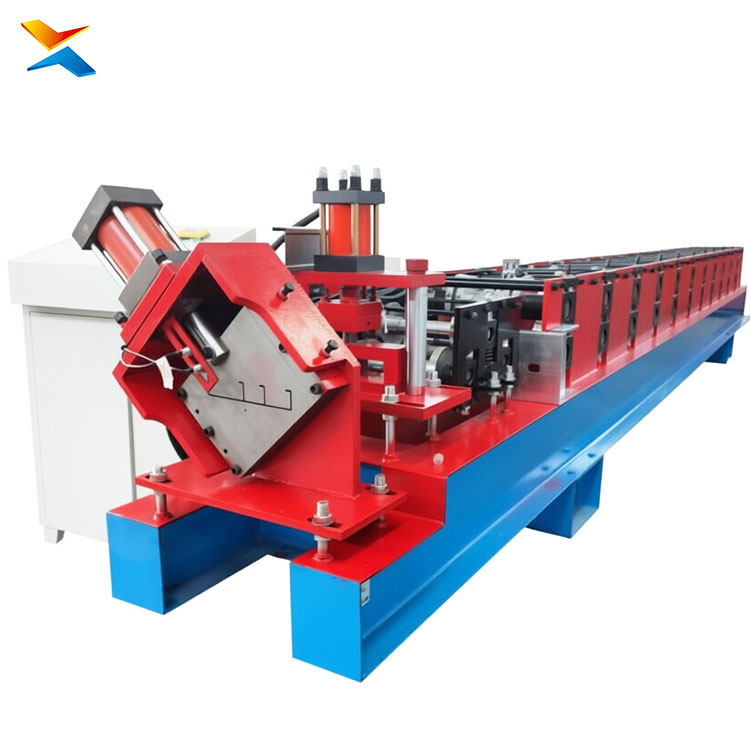

Product Name: Customized Cold Roll Forming Machine for Light Steel Villa Framing | OEM Metal Stud and Track Production Line

Product Overview:
The Customized Cold Roll Forming Machine for Light Steel Villa Framing is a comprehensive, OEM-tailored production line designed specifically for the modern prefabricated construction industry. Engineered to manufacture high-strength metal studs and tracks, this machine serves as the backbone for light steel villa structures, interior partitions, and suspended ceiling systems. By combining advanced cold roll forming technology with intelligent automation, it transforms steel coils into precision framing components, providing builders and manufacturers with a highly efficient, reliable, and fully customizable solution for light steel frame (LSF) construction.
Key Features:
  • Fully Customizable OEM Solutions: Tailored to meet specific project requirements, this production line can be configured to produce a wide variety of profile shapes and sizes, ensuring perfect compatibility with diverse architectural designs and local building codes.
  • Intelligent PLC Control System: Features an advanced, user-friendly touch-screen interface that streamlines the entire manufacturing process. It allows for precise parameter adjustments, automatic batch counting, and real-time monitoring, significantly reducing the need for highly skilled manual labor.
  • Integrated Punching and Cutting: Equipped with a seamless hydraulic punching and flying cut-off system, the machine accurately creates service holes, connection slots, and precise lengths on the fly, ensuring continuous, high-speed production without stopping.
  • Premium Material Compatibility: Designed to process high-quality galvanized steel coils, producing framing components with superior corrosion resistance, structural integrity, and a smooth, professional finish suitable for long-lasting villa construction.
  • Robust and Durable Construction: Built with a heavy-duty welded steel base and high-grade forming rollers, the machine ensures stable, low-vibration operation, maintaining strict dimensional tolerances and extending the equipment’s service life.
  • End-to-End Automation: From uncoiling and leveling to forming, punching, cutting, and stacking, the entire workflow is fully automated, maximizing production efficiency, minimizing material waste, and ensuring consistent product quality.
Applications:
This versatile production line is essential for manufacturing structural components in various light steel construction projects, including:
  • Load-bearing and non-load-bearing wall framing for light steel villas
  • Interior and exterior drywall partition systems
  • Suspended ceiling grids and furring channels
  • Prefabricated modular homes and commercial steel structures
After-Sales Service & Support:
  • Comprehensive Warranty: Backed by a solid warranty covering the entire production line to ensure peace of mind (excluding standard consumables).
  • Overseas Installation & Training: Our professional engineering team is available for on-site installation, debugging, and thorough operator training to guarantee a smooth transition to full production.
  • Dedicated Technical Support: Providing round-the-clock online troubleshooting and lifelong technical consultation to keep your operations running seamlessly.
  • Reliable Spare Parts Supply: Ensuring a long-term, fast-supply chain for original spare parts, custom roller molds, and hydraulic components at competitive factory-direct prices.
Why Choose Us?
As a specialized manufacturer of light steel framing equipment, we understand that every villa project has unique structural demands. Our OEM production lines are not just machines; they are complete manufacturing solutions designed to maximize your return on investment. With a commitment to precision engineering, intelligent automation, and unwavering after-sales support, we empower your business to lead in the modern construction market. Contact us today to discuss your custom profile requirements and receive a tailored production line proposal!

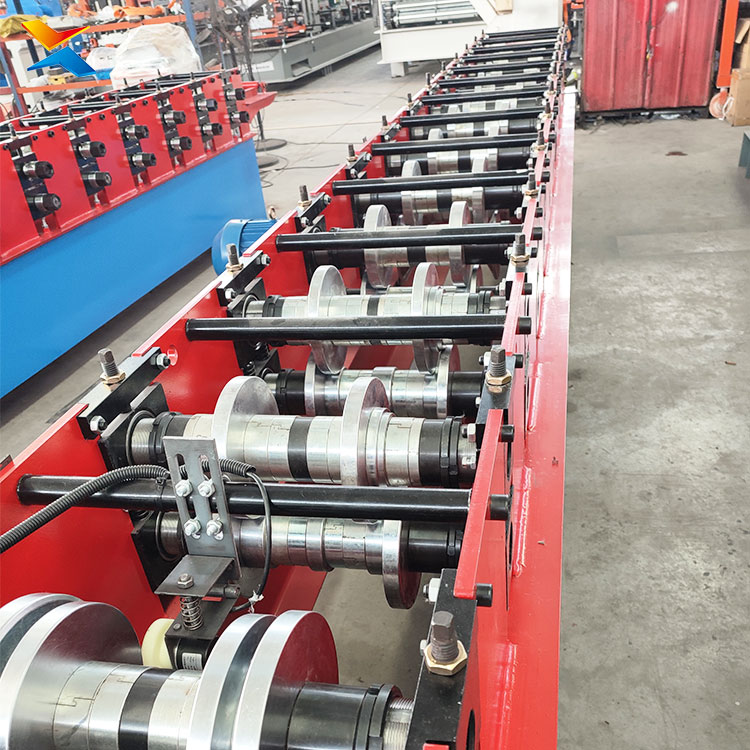

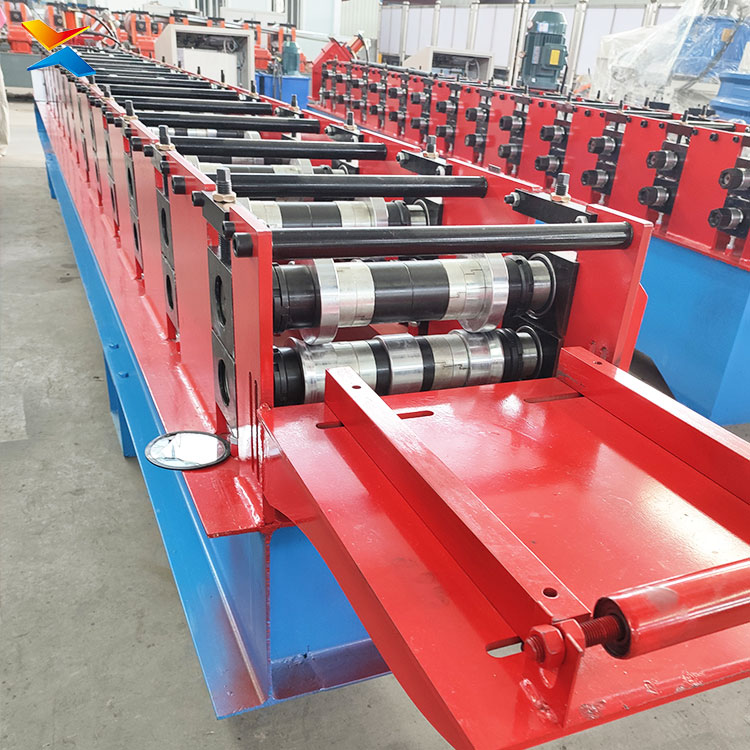

白底图 5 4








  • Previous:
  • Next:

  • 微信图片_20220406094904 微信图片_202204060949041 微信图片_2022040609490423.png

    ♦ COMPANY PROFILE:

        Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

    There are several advantages of using roll forming for your projects:

    • The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
    • Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
    • It can provide better dimensional control than other competing metal forming processes.
    • Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
    • Roll forming is typically a higher speed process.
    • Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
    • Roll forming utilizes material more efficiently than other competing processes.
    • Roll formed shapes can be developed with thinner walls than competing processes

    In modern construction and manufacturing, the roll forming machine (commonly known as a roof tile or sheet metal roll former) has revolutionized profile fabrication. By replacing labor-intensive traditional press brake methods, advanced roll forming technology offers unmatched efficiency, quality, and cost savings for metal roofing and wall panel production.

    Here are the key advantages of implementing a modern roll forming machine in your operations:

    1. Unmatched High Efficiency and Output Speed

    High-speed roll forming lines operate continuously, producing custom metal panels at speeds up to 20–40 meters per minute. This automated process significantly shortens lead times and accelerates project delivery cycles.

    2. High Precision and Consistent Quality

    Engineered with heavy-duty steel frames, high-precision roller dies, and PLC automated control systems, roll formers deliver pinpoint dimensional accuracy. Every panel exhibits uniform thickness, sharp profiles, and precise hole punching, ensuring seamless job-site installation.

    3. Material Efficiency and Reduced Waste

    Continuous roll forming minimizes scrap metal generation compared to conventional stamping. Precise coil feeding and automated hydraulic flying shears ensure optimal material utilization and reduced raw material costs.

    4. Low Maintenance and Extended Durability

    Constructed with heat-treated chrome-plated rollers and robust drive systems, industrial roll forming machines require minimal downtime while delivering a long service life under heavy daily operation.

    Conclusion

    Investing in a reliable roll forming machine boosts productivity, lowers labor costs, and guarantees consistent product quality—delivering maximum long-term return on investment (ROI) for metal fabrication businesses.

    Metal roll forming is a continuous, automated metal fabrication process used to shape long strips of sheet metal (usually coiled steel or aluminum) into specific, uniform cross-sectional profiles.

    Unlike traditional metal bending techniques like press braking—which shapes sheets batch by batch—roll forming operates as a continuous production line, making it one of the most efficient manufacturing methods for structural profiles, roofing panels, and automotive components.

    How the Metal Roll Forming Process Works

    The process passes coil stock through a series of consecutive roller dies to incrementally shape the metal into a finished cross-section:

    1. Uncoiling: A heavy coil of sheet metal (often pre-painted, galvanized, or stainless steel) is mounted onto a decoiler and fed continuously into the line.

    2. Progressive Forming: The strip passes through a sequence of mating roller stations (known as flower patterns). Each set of rollers gradually bends the metal by a few degrees. By making incremental bends, the process avoids overstressing the material or cracking protective coatings.

    3. In-Line Processing (Optional): Pre-punching, post-punching, slitting, or embossing can be integrated directly into the automated line before or after forming.

    4. Cutting to Length: Once the final profile is shaped, an automated flying shear or hydraulic cutter cuts the continuous panel into precise custom lengths without interrupting the line speed.

    Key Advantages of Metal Roll Forming

    • Continuous High Output: Roll forming lines operate at high speeds (typically 20–50 meters per minute), significantly outperforming press brakes for mass production.

    • Tight Dimensional Tolerances: Advanced PLC automation and precision-machined rollers ensure strict dimensional consistency across every piece produced.

    • Material & Cost Efficiency: Minimizes scrap metal waste and eliminates extra handling steps by integrating punching, bending, and cutting into a single automated line.

    • Design Flexibility & Surface Protection: Capable of producing complex, multi-bend profiles while preserving surface finishes, galvanization, and paint coats.

    Common Applications

    Metal roll forming is widely used across multiple heavy-duty industries:

    Industry Common Roll-Formed Products
    Building & Construction Trapezoidal roof tiles, standing seam panels, C/Z purlins, drywall studs, rain gutters
    **Automotive &# What is Metal Roll Forming?

    Metal roll forming is a continuous, high-volume manufacturing process that bends long strips of sheet metal—usually coiled steel or aluminum—into custom cross-sectional profiles.

    Unlike traditional press braking or stamping, which processes metal in single discrete batches, roll forming shapes metal incrementally at room temperature (cold forming) through a series of consecutive roller dies.

    How Metal Roll Forming Works

    The roll forming process relies on a line of paired roller stations that gradually shape the metal in steps:

    1. Coil Unloading & Uncoiling: A heavy coil of flat metal strip is loaded onto an uncoiler and fed continuously into the machine.

    2. In-Line Pre-Punching: Automatic presses notch, punch holes, or create slots in the flat strip prior to shaping.

    3. Progressive Roll Shaping: The strip passes through multiple sets of upper and lower rollers (called roll stations). Each station bends the metal slightly more than the previous one, preventing stress fractures and material strain.

    4. Cutting & Shearing: A flying hydraulic shear cuts the finished profile to exact target lengths without stopping the continuous line.

    Key Benefits of Roll Forming

    • High Speed & Efficiency: Lines operate at speeds up to 20–50 meters per minute with minimal manual labor required.

    • Consistent Quality & Precision: Heavy-duty tool steel rollers controlled by PLC automation ensure exact tolerances across thousands of identical panels.

    • Material Waste Reduction: Continuous coil processing generates virtually zero scrap compared to conventional sheet stamping or trimming.

    • Complex Profiles: Produces intricate shapes—such as standing seam panels, hat channels, C/Z purlins, and tubular sections—in a single continuous pass.

    Common Applications

    • Building & Construction: Roof tiles, wall cladding panels, gutters, structural purlins, and steel framing studs.

    • Automotive: Bumper beams, door impact bars, and chassis structural rails.

    • Solar & Energy: Solar panel mounting racks and support structures.

    • Storage & Industrial: Warehouse racking systems, shelving, and heavy-duty tracks.

  •
