Product Overview

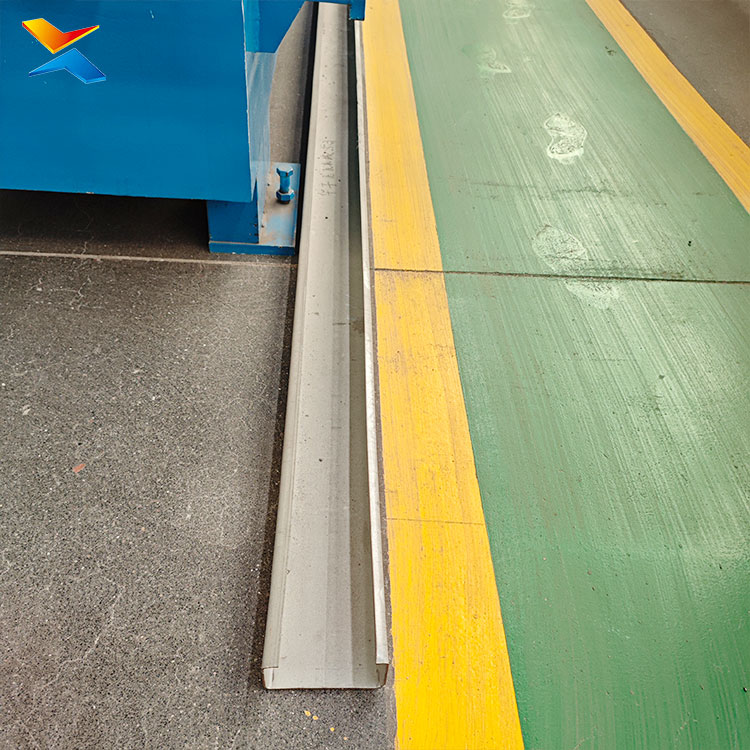

The Furring Channel & Hat Channel Roll Forming Machine is a high-precision production line engineered to manufacture essential structural components for modern suspended ceiling and partition systems. Utilizing advanced cold roll forming technology, this equipment processes metal coils into hat-shaped, L-shaped, and U-shaped channels. These profiles provide reliable structural support, ensure smooth surface installation, and help absorb building vibrations, making them indispensable in residential, commercial, and industrial interior decoration projects.
Key Features & Advantages

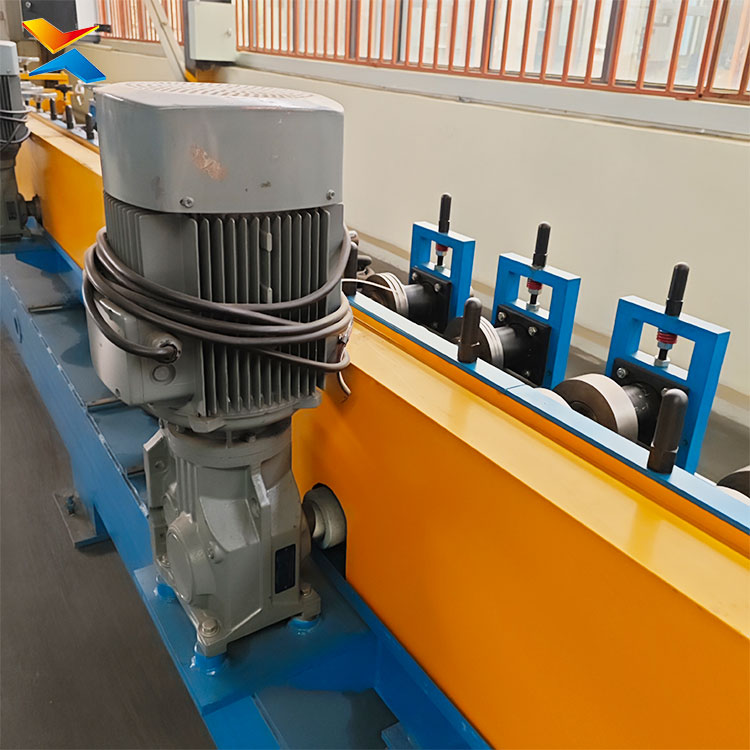

- High-Precision Roll Forming Technology: The core of this production line features a series of precision-machined rollers and dies that gradually and accurately form metal coils into consistent hat, L, or U cross-sections. This guarantees high dimensional accuracy, excellent structural strength, and seamless on-site assembly.
- Fully Automated PLC Control System: Driven by an intelligent Programmable Logic Controller (PLC), the machine automates the entire workflow from feeding, precision forming, to automatic cutting. The user-friendly control panel allows operators to easily set parameters and monitor production, ensuring flawless repeatability and minimizing human error.
- Versatile Profile Compatibility: Designed with high flexibility, this production line can be adapted to manufacture various ceiling grid and framing profiles. Whether for primary keels, secondary keels, or edge supports, the machine provides stable and reliable performance for both large-scale production and customized requirements.
- High-Efficiency Continuous Production: Engineered for maximum output, the equipment processes materials continuously at high speeds. Its optimized mechanical design ensures stable operation, significantly boosting daily production capacity while maintaining a smooth surface finish on the final products.

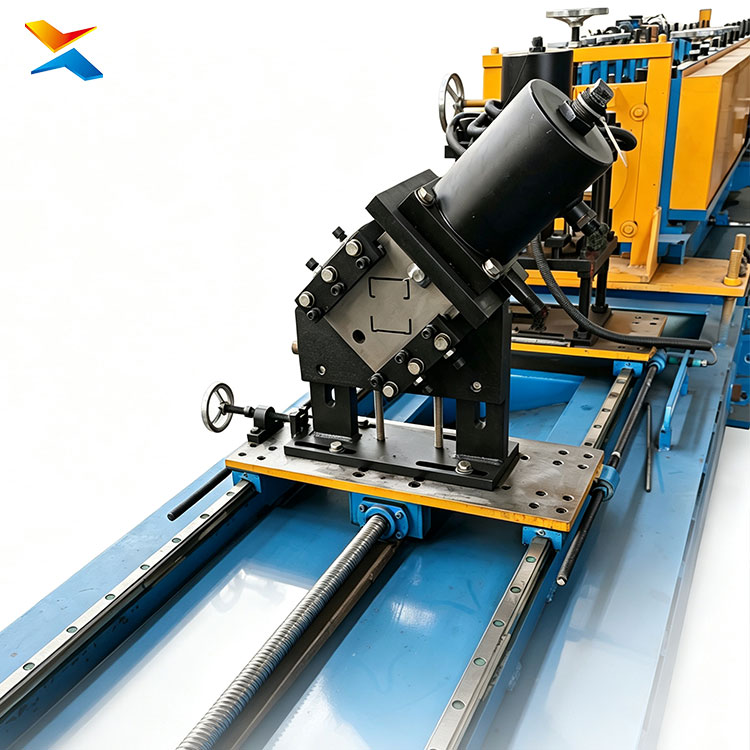

- Integrated Automatic Cutting System: Equipped with high-precision hydraulic cutting devices or blades, the machine accurately cuts the formed channels according to preset lengths. This automated system delivers clean, burr-free edges and exact length tolerances, effectively reducing material waste and post-processing requirements.
- Robust & Durable Construction: Built with a heavy-duty main frame and premium, wear-resistant components, the machine is designed to withstand continuous, high-load operations. This rugged engineering minimizes vibration and maintenance frequency, ensuring a prolonged service life and consistent product quality.
Applications
This high-precision ceiling grid production line is essential for manufacturing materials used in:
- Suspended ceiling systems in commercial and residential buildings
- Interior partition walls and lightweight wall panel framing
- Soundproof walls and acoustic treatment in audio rooms
- Edge fixing and structural framework support in modern renovation projects
Value Proposition
By combining high-speed efficiency, precision forming, and intelligent automation, this Furring Channel & Hat Channel Roll Forming Machine empowers manufacturers to produce premium, code-compliant ceiling and partition components. Its reliable performance and versatile profile capabilities provide a highly cost-effective manufacturing solution, helping businesses meet the growing demand for stable, aesthetically pleasing, and durable interior construction materials.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
