Product Overview
The 0.2-1mm Galvanized Strip Roll Forming Machine is a highly versatile and precision-engineered production line designed specifically for manufacturing metal studs and tracks. Capable of processing a wide range of material thicknesses from 0.2mm to 1mm, this equipment transforms galvanized steel strips into high-strength framing components. It serves as an ideal manufacturing solution for light steel construction, drywall partition systems, and suspended ceiling frameworks, offering exceptional adaptability and dimensional accuracy.
Key Features & Advantages
- Wide Material Thickness Compatibility: Specially calibrated to handle a broad range of galvanized steel strips (0.2-1mm), this machine provides unmatched versatility. It allows manufacturers to easily switch between producing lightweight, standard-gauge framing components and heavy-duty, high-yield structural studs without requiring extensive retooling.

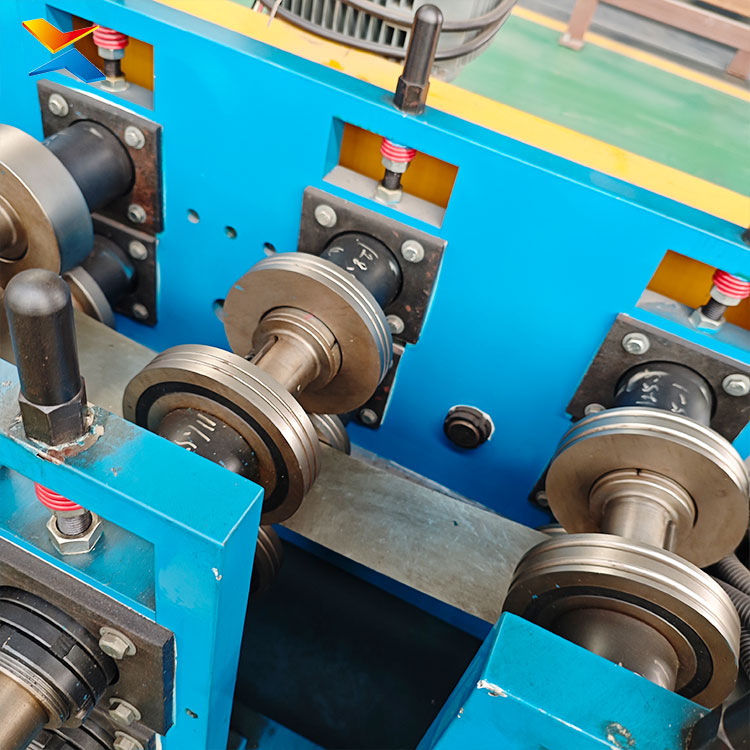

- Precision Roll Forming Technology: Utilizing high-grade, heat-treated rollers and precision-ground shafts, the machine guarantees consistent profile dimensions, smooth surface finishes, and reliable interlocking mechanisms. This precision ensures that every metal stud and track fits seamlessly during on-site assembly.
- Intelligent PLC Automation: Driven by a state-of-the-art Programmable Logic Controller (PLC) with a user-friendly touchscreen interface, the system automates the entire workflow. From decoiling, leveling, and roll forming to automatic punching and cutting, it ensures flawless repeatability, exact length tolerances, and minimal human error.

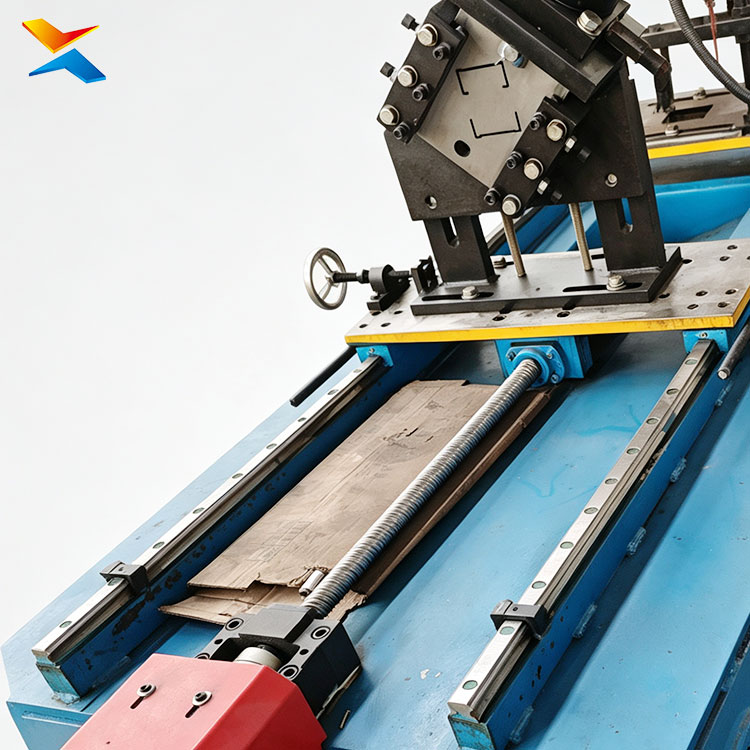

- Integrated Punching & Cutting System: Equipped with a high-speed hydraulic or mechanical punching unit, the machine accurately creates service holes, screw dimples, and structural embossments based on pre-programmed specifications. Coupled with a precision cutting unit, it delivers clean, burr-free edges, effectively minimizing material waste.
- Versatile Profile Production: Designed with high flexibility, this equipment can be customized to manufacture a wide variety of light steel framing profiles, including C-studs, U-tracks, and specialized keel shapes. This adaptability allows manufacturers to meet diverse architectural and engineering requirements efficiently.
- Robust & Durable Construction: Built with a heavy-duty main frame and premium, wear-resistant components (such as Cr12 mould steel cutting blades), the machine is engineered to withstand continuous, high-load operations. This rugged design minimizes vibration, extends tooling life, and ensures long-term operational stability.
Applications
This precision metal stud and track equipment is essential for producing structural components used in:
- Drywall partition walls and interior framing systems
- Suspended ceiling grids and furring channels
- Prefabricated and modular residential/commercial buildings
- Light steel villa construction and industrial steel-framed structures
Value Proposition
By combining wide material compatibility with precision roll forming and intelligent automation, this 0.2-1mm Galvanized Strip Roll Forming Machine empowers manufacturers to streamline their production lines. It enables the efficient, high-volume manufacturing of code-compliant steel framing components, drastically reducing construction time and labor costs while delivering superior structural safety and versatility for modern building projects.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes

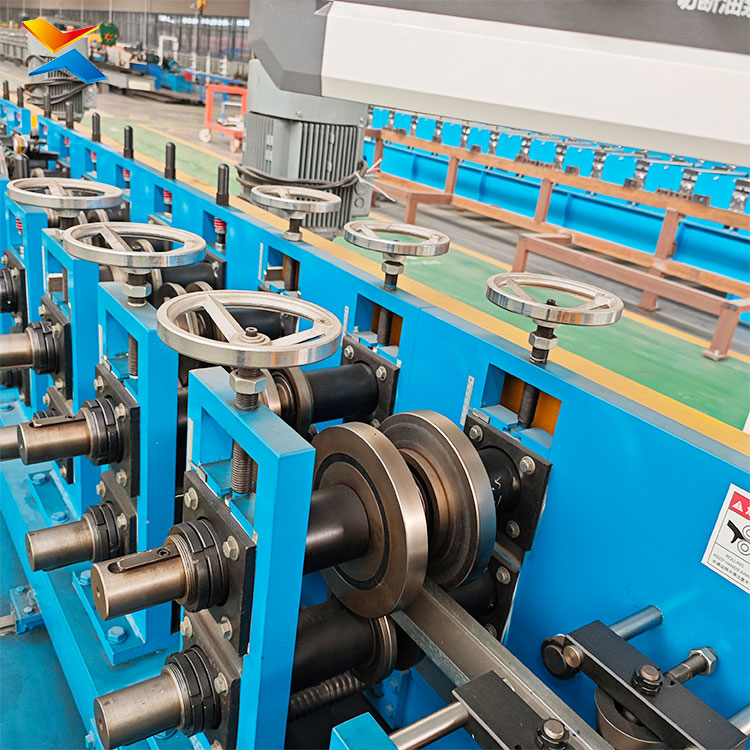

Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
