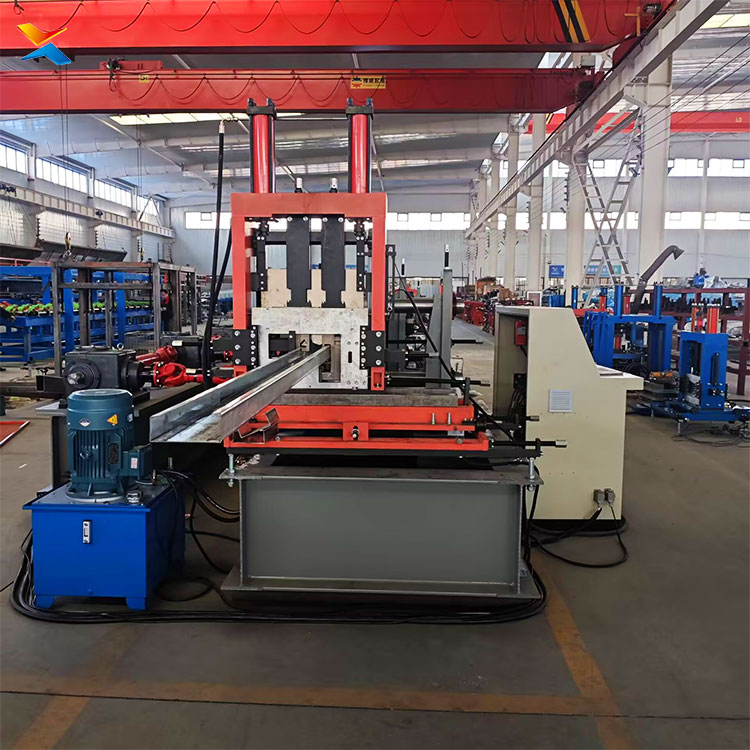

Adjustable C Section Steel Purlin Roll Forming Machine

Short Description:


Download as PDF

Product Detail

configuration

COMPANY PROFILE:

what is metal roll forming?

Product Tags

Adjustable C Section Steel Purlin Roll Forming Machine Product Description
The Adjustable C Section Steel Purlin Roll Forming Machine is a high-precision, efficient cold roll forming equipment specially developed for the automated production of high-standard C section steel purlins. Integrating advanced adjustable forming technology, hydraulic cutting technology, cold roll forming process and intelligent control system, it realizes high-precision, stable and efficient production throughout the entire process. It highlights the dual advantages of flexible adjustability and fast, smooth, precise hydraulic cutting, greatly improving production efficiency, product finish and specification adaptability, reducing labor intervention, and ensuring consistent product quality. It is widely applied in processing galvanized steel, carbon steel, and color-coated steel coils, providing high-strength, standard-compliant structural profiles for steel structure buildings, prefabricated houses, warehouses, factories, workshops, solar support systems, and mezzanine floors.

Adjustable Hydraulic Cutting Cold Roll Forming Process

This machine adopts advanced continuous cold roll forming technology, combined with high-precision adjustable forming system, hydraulic cutting system and integrated automatic transmission. It completes the entire production process from steel coil uncoiling, material leveling, optional pre-punching, precision adjustable roll forming, fixed-length hydraulic cutting to finished product output in a seamless, synchronized and high-precision manner. The adjustable forming system allows flexible adjustment of purlin specifications without frequent roller replacement, saving time and labor. The hydraulic cutting system provides stable and powerful cutting force, ensuring fast cutting speed, smooth cutting surface and no burrs on the finished product. The intelligent control system accurately controls every link of production, realizing precise parameter positioning and real-time adjustment, effectively avoiding human errors caused by manual operation, ensuring stable production rhythm, and realizing continuous batch production. The whole process is intelligently monitored, and any abnormal situation can be quickly alarmed and handled, ensuring safe and reliable operation.

Core Features & Advantages

Flexible Adjustable Forming: Equipped with a high-performance adjustable forming system, the machine can flexibly adjust parameters such as purlin width, flange size and lip dimension to produce C section purlins of different specifications. The adjustment process is simple and efficient, without the need for frequent disassembly and replacement of rollers, greatly improving production flexibility and adapting to diverse customer needs and project requirements.
Precise & Efficient Hydraulic Cutting: Equipped with a high-performance hydraulic cutting system, it provides stable and powerful cutting force, realizing fast, precise and smooth cutting. The cutting surface is flat, burr-free and free of deformation, ensuring the dimensional accuracy and appearance quality of the finished C section purlins, which can be directly used for construction and installation without secondary processing. The hydraulic cutting system has strong load capacity and stable performance, adapting to long-term continuous production.
Intelligent Control & Easy Operation: Equipped with a user-friendly HMI touchscreen and intelligent control system, it realizes precise control of adjustable forming parameters, hydraulic cutting length, punching position (optional) and other key indicators. The system supports parameter storage, one-key call and intelligent adjustment, which greatly reduces the requirement for operator skills and ensures that each finished product meets the standard.
Full Automation & High Efficiency: Integrating automatic control technology, the machine completes all core production links without manual intervention, including feeding, adjustable forming, hydraulic cutting and finished product output. The seamless connection of each process ensures stable production efficiency, which is especially suitable for batch production and helps enterprises reduce production costs and improve production efficiency.
Superior Forming Quality: Adopting precision-machined forming rollers (heat-treated and chrome-plated) and a heavy-duty rigid frame, combined with precise control of the adjustable forming process, it ensures that the formed C section purlins have accurate cross-sectional dimensions, uniform shape, high straightness and consistent quality, meeting the strict requirements of various construction projects.
Strong Adaptability & Versatility: The adjustable design and modular structure make the machine suitable for producing C section steel purlins of various specifications, perfectly matching the diverse needs of different construction projects. It can be quickly adjusted according to production changes, with strong versatility and adaptability to different production requirements.
Durable & Low Maintenance: Core components (rollers, shafts, hydraulic cutting blades, adjustable parts) are made of high-grade heat-treated materials, with excellent wear resistance and long service life, adapting to long-term stable operation. The hydraulic system, adjustable system and intelligent control system have low failure rates, and the modular structure facilitates daily maintenance and troubleshooting, reducing operational and maintenance costs.

Applications

Steel structure buildings (warehouses, workshops, factories, commercial buildings)
Prefabricated houses and modular buildings
Agricultural buildings (barns, greenhouses, agricultural sheds)
Solar panel support structures and photovoltaic power stations
Mezzanine floors, partition systems, and light steel keel projects

Why Choose Our Machine

Our Adjustable C Section Steel Purlin Roll Forming Machine integrates advanced adjustable forming technology, hydraulic cutting technology, precision cold roll forming process and intelligent control system. It focuses on solving the pain points of poor specification adaptability, uneven cutting, low efficiency, high labor cost and unstable quality in traditional purlin production. It is designed with user needs in mind, featuring flexible adjustability, precise hydraulic cutting, easy operation, stable performance and high cost-effectiveness. Whether it is a small and medium-sized processing enterprise or a large-scale steel structure manufacturer, this machine can bring significant economic benefits, improve product quality and market competitiveness, and become an ideal equipment for modern high-efficiency, high-precision and multi-specification C section steel purlin production.
6
  • Previous:
  • Next:

    • 微信图片_20220406094904 微信图片_202204060949041 微信图片_2022040609490423.png

    ♦ COMPANY PROFILE:

        Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

    Advantages of Roll Forming A Metal Part

    There are several advantages of using roll forming for your projects:

    • The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
    • Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
    • It can provide better dimensional control than other competing metal forming processes.
    • Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
    • Roll forming is typically a higher speed process.
    • Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
    • Roll forming utilizes material more efficiently than other competing processes.
    • Roll formed shapes can be developed with thinner walls than competing processes

    Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
