Special C Section Steel Purlin Forming Machine for Steel Structure Product Description
The Special C Section Steel Purlin Forming Machine for Steel Structure is a high-precision, efficient cold roll forming equipment specially developed for the automated production of high-standard C section steel purlins dedicated to steel structure projects. Integrating advanced adjustable forming technology, hydraulic cutting technology, precision cold roll forming process and intelligent control system, it is tailor-made for the strict requirements of steel structure buildings on purlin strength, precision and stability. It highlights the triple advantages of steel structure-specific design, flexible adjustability and fast, smooth, precise hydraulic cutting, greatly improving production efficiency, product finish and specification adaptability, reducing labor intervention, and ensuring consistent product quality. It is widely applied in processing galvanized steel, carbon steel, and color-coated steel coils, providing high-strength, standard-compliant structural purlins for various steel structure projects such as industrial workshops, large warehouses, commercial steel buildings, prefabricated steel houses, and steel structure supporting facilities.
Steel Structure-Specific Adjustable Hydraulic Cutting Cold Roll Forming Process
This machine adopts advanced continuous cold roll forming technology, combined with high-precision adjustable forming system, hydraulic cutting system and integrated automatic transmission, and is optimized for the characteristics of steel structure purlins (high strength, high precision, large load-bearing). It completes the entire production process from steel coil uncoiling, material leveling, optional pre-punching (for steel structure connection), precision adjustable roll forming, fixed-length hydraulic cutting to finished product output in a seamless, synchronized and high-precision manner. The adjustable forming system allows flexible adjustment of purlin specifications without frequent roller replacement, saving time and labor, and perfectly matching the diverse specification requirements of different steel structure projects. The hydraulic cutting system provides stable and powerful cutting force, ensuring fast cutting speed, smooth cutting surface and no burrs on the finished product, which is conducive to subsequent connection and installation of steel structures. The intelligent control system accurately controls every link of production, realizing precise parameter positioning and real-time adjustment, effectively avoiding human errors caused by manual operation, ensuring stable production rhythm, and realizing continuous batch production. The whole process is intelligently monitored, and any abnormal situation can be quickly alarmed and handled, ensuring safe and reliable operation in large-scale steel structure purlin production.
Core Features & Advantages
Steel Structure-Specific Design: Tailor-made for steel structure projects, the machine is optimized for the requirements of steel structure purlins in terms of strength, precision and load-bearing capacity. The heavy-duty frame and precision forming structure ensure that the produced C section purlins can bear large loads, meet the safety standards of steel structure buildings, and adapt to the harsh working environment of industrial and large-scale steel structure projects.
Flexible Adjustable Forming: Equipped with a high-performance adjustable forming system, the machine can flexibly adjust parameters such as purlin width, flange size and lip dimension to produce C section purlins of different specifications. The adjustment process is simple and efficient, without the need for frequent disassembly and replacement of rollers, greatly improving production flexibility and adapting to the diverse specification requirements of different steel structure projects (such as large-span workshops, high-rise steel buildings, and small steel structures).

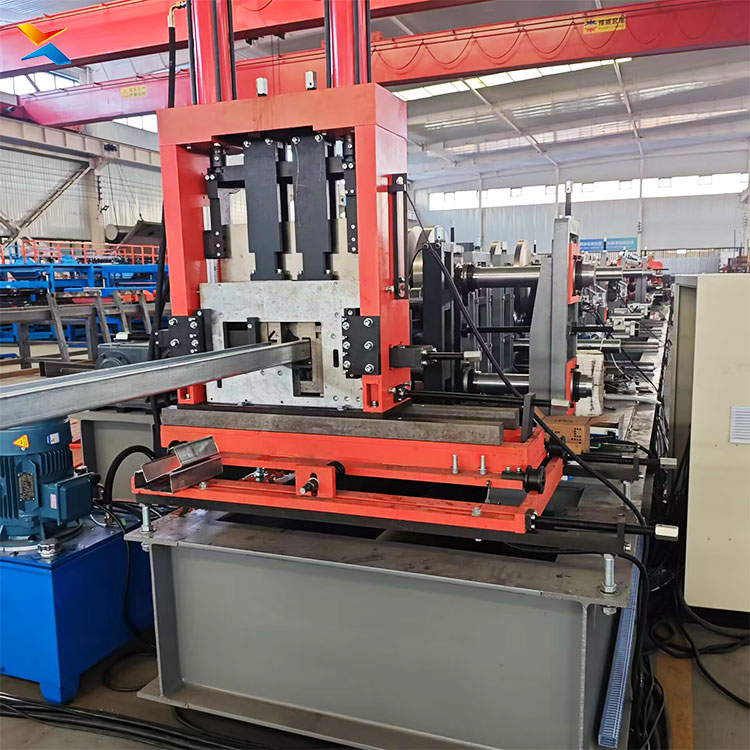

Precise & Efficient Hydraulic Cutting: Equipped with a high-performance hydraulic cutting system, it provides stable and powerful cutting force, realizing fast, precise and smooth cutting. The cutting surface is flat, burr-free and free of deformation, ensuring the dimensional accuracy and appearance quality of the finished C section purlins, which can be directly used for connection and installation of steel structures without secondary processing. The hydraulic cutting system has strong load capacity and stable performance, adapting to long-term continuous production of steel structure purlins.
Intelligent Control & Easy Operation: Equipped with a user-friendly HMI touchscreen and intelligent control system, it realizes precise control of adjustable forming parameters, hydraulic cutting length, punching position (optional, for steel structure connection holes) and other key indicators. The system supports parameter storage, one-key call and intelligent adjustment, which greatly reduces the requirement for operator skills and ensures that each finished product meets the strict precision requirements of steel structure projects.
Full Automation & High Efficiency: Integrating automatic control technology, the machine completes all core production links without manual intervention, including feeding, adjustable forming, hydraulic cutting and finished product output. The seamless connection of each process ensures stable production efficiency, which is especially suitable for batch production of steel structure purlins, helping enterprises reduce production costs and shorten the construction cycle of steel structure projects.
Superior Forming Quality: Adopting precision-machined forming rollers (heat-treated and chrome-plated) and a heavy-duty rigid frame, combined with precise control of the adjustable forming process, it ensures that the formed C section purlins have accurate cross-sectional dimensions, uniform shape, high straightness and consistent quality. The purlins have strong load-bearing capacity and good corrosion resistance, fully meeting the strict requirements of various steel structure projects.
Strong Adaptability & Versatility: The adjustable design and modular structure make the machine suitable for producing C section steel purlins of various specifications, perfectly matching the diverse needs of different steel structure projects (industrial, commercial, prefabricated). It can be quickly adjusted according to the changes of steel structure project requirements, with strong versatility and adaptability.
Durable & Low Maintenance: Core components (rollers, shafts, hydraulic cutting blades, adjustable parts) are made of high-grade heat-treated materials, with excellent wear resistance and long service life, adapting to long-term stable operation in large-scale steel structure purlin production. The hydraulic system, adjustable system and intelligent control system have low failure rates, and the modular structure facilitates daily maintenance and troubleshooting, reducing operational and maintenance costs for enterprises.
Applications (Steel Structure-Specific)
Industrial steel structure workshops, large steel structure warehouses
Commercial steel structure buildings (shopping malls, exhibition centers, office buildings)
Prefabricated steel houses and modular steel structures
Steel structure supporting facilities (solar support steel structures, steel structure mezzanines)
Large-span steel structure projects (stadiums, workshops, logistics centers)
Why Choose Our Machine
Our Special C Section Steel Purlin Forming Machine for Steel Structure is tailor-made for steel structure projects, integrating advanced adjustable forming technology, hydraulic cutting technology, precision cold roll forming process and intelligent control system. It focuses on solving the pain points of poor specification adaptability, uneven cutting, low efficiency, high labor cost and unstable quality in traditional steel structure purlin production. It is designed with the needs of steel structure manufacturers and construction enterprises in mind, featuring steel structure-specific design, flexible adjustability, precise hydraulic cutting, easy operation, stable performance and high cost-effectiveness. Whether it is a small and medium-sized steel structure processing enterprise or a large-scale steel structure manufacturer, this machine can bring significant economic benefits, improve product quality and market competitiveness, and become an ideal equipment for modern high-efficiency, high-precision and multi-specification steel structure C section purlin production.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
