Color Steel C Section Steel Purlin Roll Forming Machine Product Description
The Color Steel C Section Steel Purlin Roll Forming Machine is a high-precision, efficient cold roll forming equipment specially developed for the automated production of high-standard C section steel purlins using color steel coils. Integrating advanced adjustable forming technology, hydraulic cutting technology, precision cold roll forming process and intelligent control system, it is tailor-made for the characteristics of color steel (excellent appearance, corrosion resistance, light weight) and the requirements of various buildings for decorative and structural performance. It highlights the core advantages of color steel-specific forming, flexible adjustability and fast, smooth, precise hydraulic cutting, greatly improving production efficiency, product finish and specification adaptability, reducing labor intervention, and ensuring consistent quality of color steel purlins. It is widely applied in processing color steel coils (including pre-coated color steel, galvanized color steel), providing high-quality, aesthetically pleasing and durable C section purlins for steel structure buildings, prefabricated houses, warehouses, workshops, greenhouses, commercial buildings and other projects that require both structural stability and decorative effect.
Color Steel-Specific Adjustable Hydraulic Cutting Cold Roll Forming Process
This machine adopts advanced continuous cold roll forming technology, combined with high-precision adjustable forming system, hydraulic cutting system and integrated automatic transmission, and is optimized for the characteristics of color steel coils (thin thickness, smooth surface, easy scratch prevention). It completes the entire production process from color steel coil uncoiling, material leveling, optional pre-punching (for connection), precision adjustable roll forming, fixed-length hydraulic cutting to finished product output in a seamless, synchronized and high-precision manner. The adjustable forming system allows flexible adjustment of purlin specifications without frequent roller replacement, saving time and labor, and perfectly matching the diverse specification requirements of different color steel projects. The hydraulic cutting system adopts a gentle and precise cutting mode, avoiding color steel surface scratches and deformation, ensuring fast cutting speed, smooth cutting surface and no burrs on the finished product, which maintains the aesthetic appearance of color steel and facilitates subsequent installation. The intelligent control system accurately controls every link of production, realizing precise parameter positioning and real-time adjustment, effectively avoiding human errors caused by manual operation, ensuring stable production rhythm, and realizing continuous batch production of color steel purlins. The whole process is intelligently monitored, and any abnormal situation can be quickly alarmed and handled, ensuring safe and reliable operation in large-scale color steel purlin production.
Core Features & Advantages
Color Steel-Specific Design: Tailor-made for color steel coil processing, the machine is optimized for the characteristics of color steel (smooth surface, thin thickness, corrosion resistance). The forming rollers are specially treated to avoid scratching the color steel surface, ensuring the aesthetic appearance of the finished purlins. At the same time, the forming process is adjusted to match the material properties of color steel, ensuring that the formed C section purlins have sufficient strength and stability while maintaining the color and luster of the original color steel.
Flexible Adjustable Forming: Equipped with a high-performance adjustable forming system, the machine can flexibly adjust parameters such as purlin width, flange size and lip dimension to produce C section color steel purlins of different specifications. The adjustment process is simple and efficient, without the need for frequent disassembly and replacement of rollers, greatly improving production flexibility and adapting to the diverse specification requirements of different color steel projects (such as prefabricated houses, greenhouses, commercial decoration).

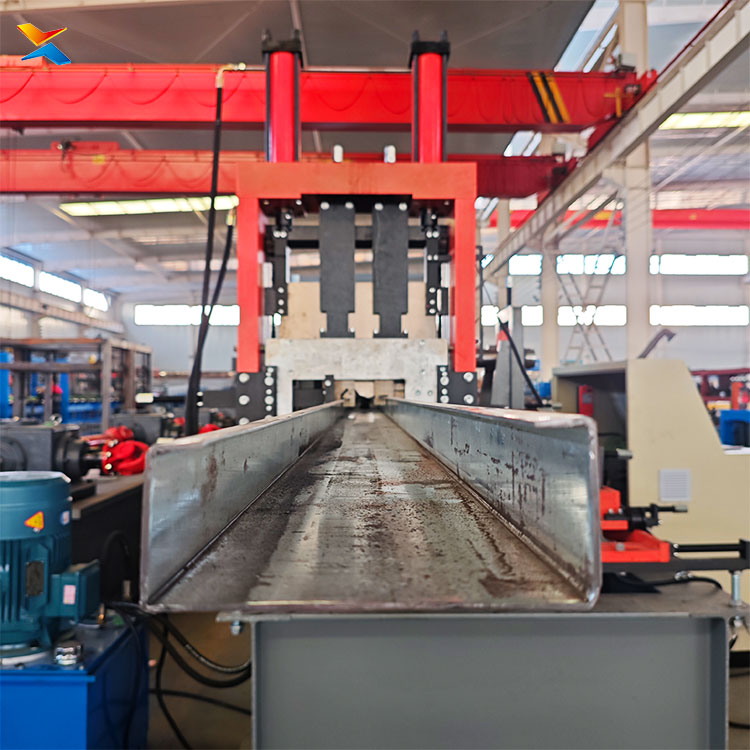

Precise & Gentle Hydraulic Cutting: Equipped with a high-performance hydraulic cutting system with a gentle cutting design, it provides stable and powerful cutting force while avoiding scratches and deformation on the color steel surface. The cutting surface is flat, burr-free and free of color loss, ensuring the dimensional accuracy, appearance quality and corrosion resistance of the finished color steel purlins, which can be directly used for installation without secondary processing. The hydraulic cutting system has strong load capacity and stable performance, adapting to long-term continuous production of color steel purlins.
Intelligent Control & Easy Operation: Equipped with a user-friendly HMI touchscreen and intelligent control system, it realizes precise control of adjustable forming parameters, hydraulic cutting length, punching position (optional, for connection holes) and other key indicators. The system supports parameter storage, one-key call and intelligent adjustment, which greatly reduces the requirement for operator skills and ensures that each finished color steel purlin meets the precision and appearance requirements.
Full Automation & High Efficiency: Integrating automatic control technology, the machine completes all core production links without manual intervention, including color steel coil feeding, adjustable forming, hydraulic cutting and finished product output. The seamless connection of each process ensures stable production efficiency, which is especially suitable for batch production of color steel purlins, helping enterprises reduce production costs and shorten the project construction cycle.
Superior Forming Quality: Adopting precision-machined forming rollers (heat-treated, chrome-plated and surface-polished) and a heavy-duty rigid frame, combined with precise control of the adjustable forming process, it ensures that the formed C section color steel purlins have accurate cross-sectional dimensions, uniform shape, high straightness and consistent quality. The purlins maintain the original corrosion resistance and aesthetic appearance of color steel, with strong load-bearing capacity, fully meeting the requirements of various decorative and structural projects.
Strong Adaptability & Versatility: The adjustable design and modular structure make the machine suitable for processing various types of color steel coils (pre-coated, galvanized color steel) and producing C section purlins of various specifications, perfectly matching the diverse needs of different projects (residential, industrial, commercial, agricultural). It can be quickly adjusted according to project changes, with strong versatility and adaptability.
Durable & Low Maintenance: Core components (rollers, shafts, hydraulic cutting blades, adjustable parts) are made of high-grade heat-treated materials, with excellent wear resistance and long service life. The forming rollers are specially treated to resist wear and avoid scratching color steel, adapting to long-term stable operation in color steel purlin production. The hydraulic system, adjustable system and intelligent control system have low failure rates, and the modular structure facilitates daily maintenance and troubleshooting, reducing operational and maintenance costs for enterprises.
Applications (Color Steel-Specific)
Prefabricated color steel houses and modular buildings
Color steel warehouses, workshops and industrial plants
Agricultural color steel greenhouses and barns
Commercial color steel buildings (shopping malls, exhibition halls, temporary offices)
Color steel decorative structures and light steel keel projects
Why Choose Our Machine
Our Color Steel C Section Steel Purlin Roll Forming Machine is tailor-made for color steel coil processing, integrating advanced adjustable forming technology, hydraulic cutting technology, precision cold roll forming process and intelligent control system. It focuses on solving the pain points of color steel surface scratching, poor specification adaptability, uneven cutting, low efficiency and unstable quality in traditional color steel purlin production. It is designed with the needs of color steel processing enterprises and construction units in mind, featuring color steel-specific design, flexible adjustability, precise gentle cutting, easy operation, stable performance and high cost-effectiveness. Whether it is a small and medium-sized color steel processing enterprise or a large-scale prefabricated building manufacturer, this machine can bring significant economic benefits, improve product quality and market competitiveness, and become an ideal equipment for modern high-efficiency, high-precision and multi-specification color steel C section purlin production.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
