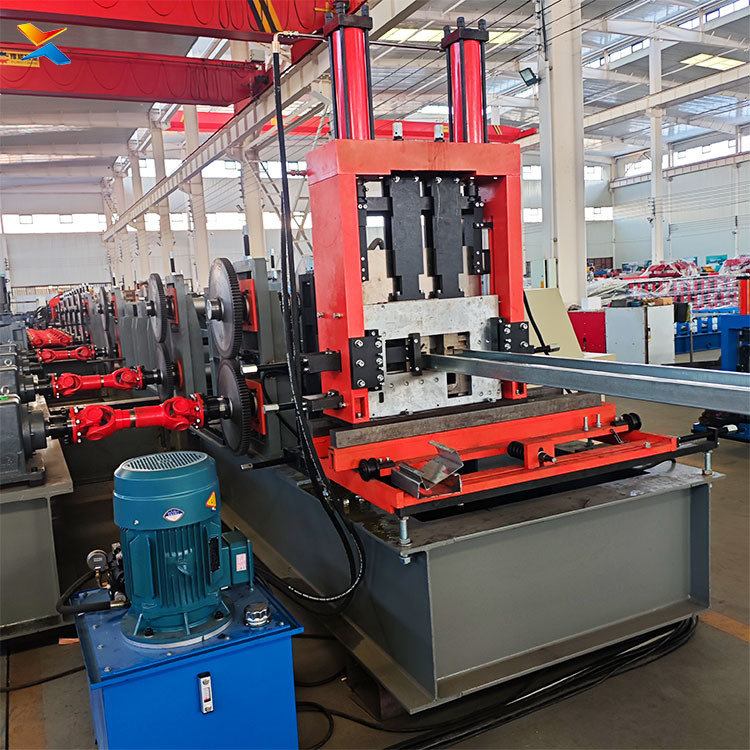

Hydraulic Cutting C Section Steel Purlin Forming Machine Product Description
The Hydraulic Cutting C Section Steel Purlin Forming Machine is a high-precision, efficient cold roll forming equipment specially developed for the automated production of high-standard C section steel purlins. Integrating advanced hydraulic cutting technology, cold roll forming process and intelligent control system, it realizes high-precision, stable and efficient production throughout the entire process, especially highlighting the advantages of fast, smooth and precise hydraulic cutting, greatly improving production efficiency and product finish, reducing labor intervention, and ensuring consistent product quality. It is widely applied in processing galvanized steel, carbon steel, and color-coated steel coils, providing high-strength, standard-compliant structural profiles for steel structure buildings, prefabricated houses, warehouses, factories, workshops, solar support systems, and mezzanine floors.
Hydraulic Cutting Cold Roll Forming Process
This machine adopts advanced continuous cold roll forming technology, combined with high-precision hydraulic cutting system and integrated automatic transmission, to complete the entire production process from steel coil uncoiling, material leveling, optional pre-punching, precision roll forming, fixed-length hydraulic cutting to finished product output in a seamless, synchronized and high-precision manner. The hydraulic cutting system provides stable and powerful cutting force, ensuring fast cutting speed, smooth cutting surface and no burrs on the finished product. The intelligent control system accurately controls every link of production, realizing precise parameter positioning and real-time adjustment, effectively avoiding human errors caused by manual operation, ensuring stable production rhythm, and realizing continuous batch production. The whole process is intelligently monitored, and any abnormal situation can be quickly alarmed and handled, ensuring safe and reliable operation.
Core Features & Advantages
Precise & Efficient Hydraulic Cutting: Equipped with a high-performance hydraulic cutting system, it provides stable and powerful cutting force, realizing fast, precise and smooth cutting. The cutting surface is flat, burr-free and free of deformation, ensuring the dimensional accuracy and appearance quality of the finished C section purlins, which can be directly used for construction and installation without secondary processing. The hydraulic cutting system has strong load capacity and stable performance, adapting to long-term continuous production.
Intelligent Control & Easy Operation: Equipped with a user-friendly HMI touchscreen and intelligent control system, it realizes precise control of forming parameters, hydraulic cutting length, punching position (optional) and other key indicators. The system supports parameter storage, one-key call and intelligent adjustment, which greatly reduces the requirement for operator skills and ensures that each finished product meets the standard.
Full Automation & High Efficiency: Integrating automatic control technology, the machine completes all core production links without manual intervention, including feeding, forming, hydraulic cutting and finished product output. The seamless connection of each process ensures stable production efficiency, which is especially suitable for batch production and helps enterprises reduce production costs and improve production efficiency.
Superior Forming Quality: Adopting precision-machined forming rollers (heat-treated and chrome-plated) and a heavy-duty rigid frame, combined with precise control of the forming process, it ensures that the formed C section purlins have accurate cross-sectional dimensions, uniform shape, high straightness and consistent quality, meeting the strict requirements of various construction projects.
Strong Adaptability & Versatility: It can flexibly adjust parameters to produce C section steel purlins of various specifications, perfectly matching the diverse needs of different construction projects. The modular design makes it easy to replace rollers and adjust specifications, with strong versatility and adaptability to different production requirements.
Durable & Low Maintenance: Core components (rollers, shafts, hydraulic cutting blades) are made of high-grade heat-treated materials, with excellent wear resistance and long service life, adapting to long-term stable operation. The hydraulic system and intelligent control system have low failure rates, and the modular structure facilitates daily maintenance and troubleshooting, reducing operational and maintenance costs.
Applications
Steel structure buildings (warehouses, workshops, factories, commercial buildings)
Prefabricated houses and modular buildings
Agricultural buildings (barns, greenhouses, agricultural sheds)
Solar panel support structures and photovoltaic power stations
Mezzanine floors, partition systems, and light steel keel projects
Why Choose Our Machine
Our Hydraulic Cutting C Section Steel Purlin Forming Machine integrates advanced hydraulic cutting technology, precision cold roll forming process and intelligent control system, focusing on solving the pain points of uneven cutting, low efficiency, high labor cost and unstable quality in traditional purlin production. It is designed with user needs in mind, featuring precise hydraulic cutting, easy operation, stable performance and high cost-effectiveness. Whether it is a small and medium-sized processing enterprise or a large-scale steel structure manufacturer, this machine can bring significant economic benefits, improve product quality and market competitiveness, and become an ideal equipment for modern high-efficiency, high-precision C section steel purlin production.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
