Xinnuo Arch Roof Roll Forming Machine – The Metal Arch Panel Forming Machine from the Factory That Built the Profile Library

When a producer buys an arch roof machine, the producer is not buying a machine — the producer is buying a profile: the curved panel that the machine will make, day after day, for the buildings the producer serves. The arch panel profile determines the roller set, the curving tooling, the machine grade, and the radius envelope; it is the DNA of the entire investment. This is why, in arch roof equipment, the manufacturer’s profile library matters more than in any other machine category: a deep, production-proven profile archive means the machine is matched to a real profile — not built to a guess.

The Xinnuo arch roof roll forming machine — the metal arch panel forming machine from Hebei Xinnuo — is sold from the deepest arch curving profile archive in the supplier’s product family: 17 QG-series in-line curving profiles and 43 DG/DB-series hydraulic arch-pressing profiles, each with production-proven drawings and customer delivery records from 2011–2025. When you buy from Xinnuo, you buy a machine matched to a documented profile — and you buy it from the factory that built the archive.

What the Title Says, Decoded

  • Xinnuo — the factory brand: Hebei Xinnuo Roll Forming Machinery Co., Ltd., the manufacturer in Botou, Hebei — China’s metal forming equipment cluster. In arch roof equipment, the Xinnuo brand stands for one thing above all: profile archive depth, documented by customer records.
  • Arch Roof Roll Forming Machine — the machine class that produces arched metal roof panels: roll forming (shaping the profile from coil) combined with arch curving (bending the profile to the roof’s radius).
  • Metal Arch Panel Forming Machine — the same machine from the product side: the equipment that forms metal arch panels — the curved trapezoidal or corrugated sheets that build arched roofs.
  • Factory — the supply-side signal: direct from the manufacturer, with the factory’s profile drawings, engineering support, and after-sales behind the machine.

Why the Middle East Buyer Needs the Profile-First View

The Middle East’s arched roof demand is served by a limited set of regional profiles — the 840/900-class mainstream and the 1000-class preference of the UAE and Oman markets — but within those families, the details differ: rib height, rib count, effective width, and the triple-width compatibility that some Gulf buyers need. A machine matched to the wrong profile detail is a machine that cannot serve the market it was bought for. The profile-first view — matching the machine to the documented profile from the factory’s archive — is the view that protects the buyer’s investment, and it is the view this page is written from.

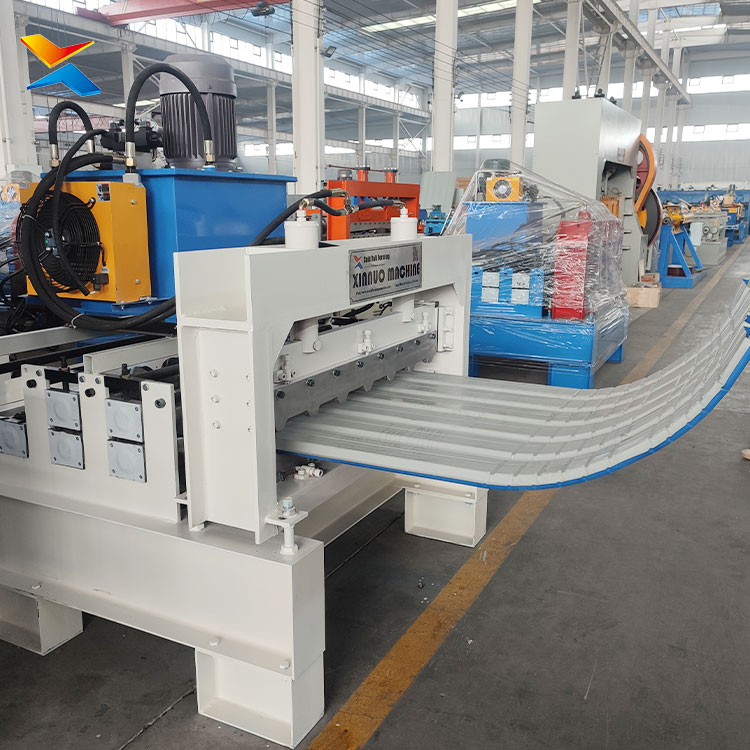

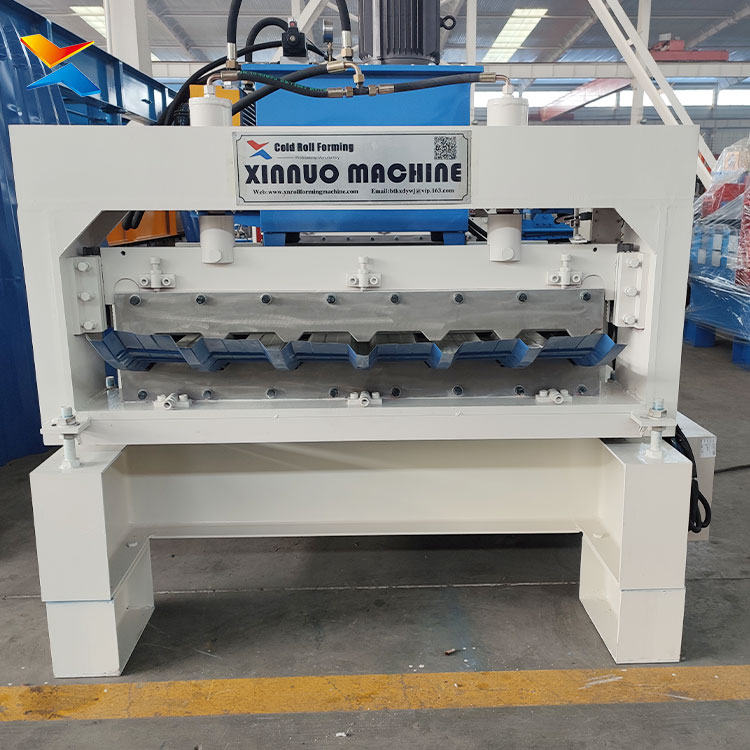

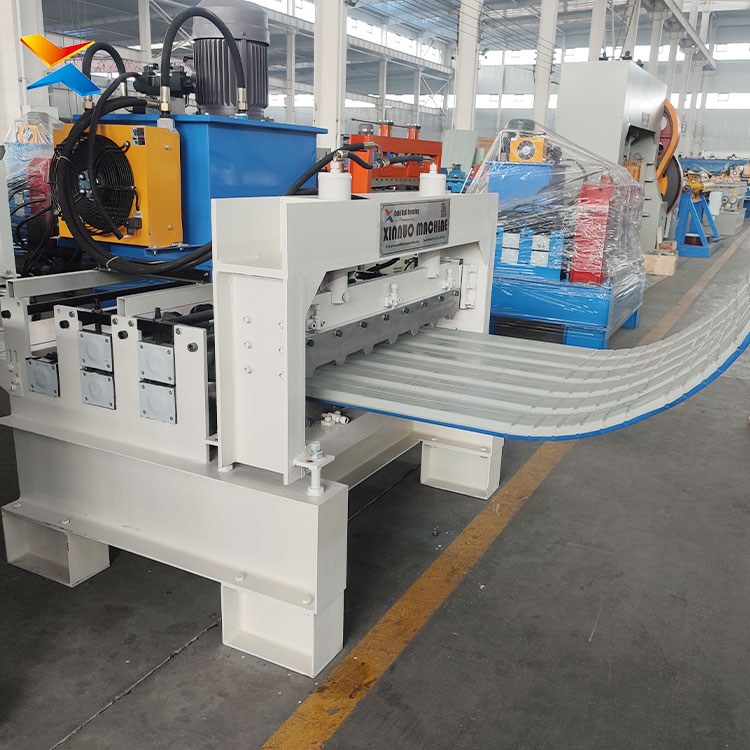

起拱6 起拱5 起拱4

  • Previous:
  • Next:

    • 微信图片_20220406094904 微信图片_202204060949041 微信图片_2022040609490423.png

    ♦ COMPANY PROFILE:

        Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

    Advantages of Roll Forming A Metal Part

    There are several advantages of using roll forming for your projects:

    • The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
    • Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
    • It can provide better dimensional control than other competing metal forming processes.
    • Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
    • Roll forming is typically a higher speed process.
    • Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
    • Roll forming utilizes material more efficiently than other competing processes.
    • Roll formed shapes can be developed with thinner walls than competing processes

    Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
