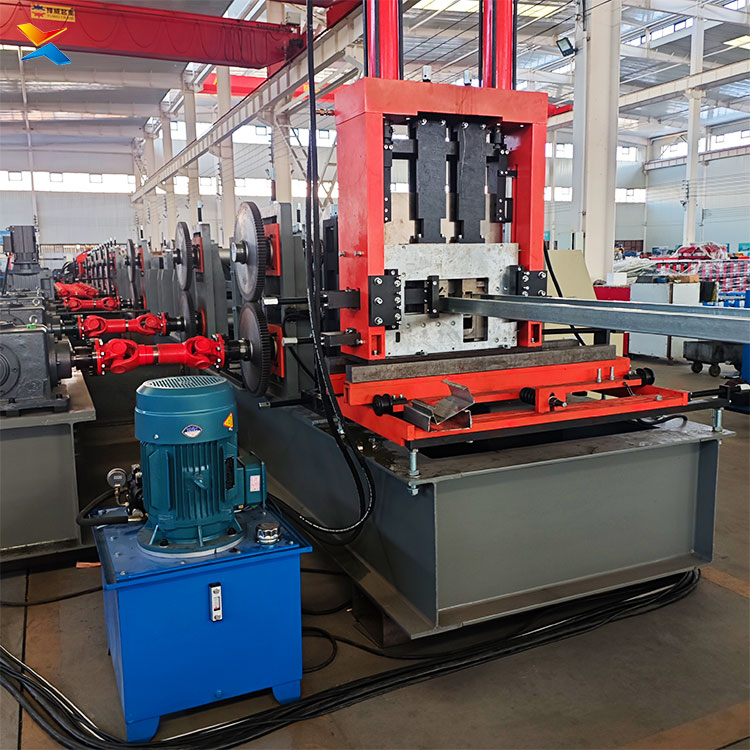

Full Automatic C Section Steel Purlin Forming Machine Product Description
The Full Automatic C Section Steel Purlin Forming Machine is a high-end, intelligent cold roll forming equipment specifically developed for the mass production of high-precision C section steel purlins. Integrating full automation technology, it realizes unmanned or semi-unmanned operation throughout the production process, greatly improving production efficiency, reducing labor costs, and ensuring consistent product quality. It is widely applied in processing galvanized steel, carbon steel, and color-coated steel coils, providing high-strength, standard-compliant structural profiles for steel structure buildings, prefabricated houses, warehouses, factories, workshops, solar support systems, and mezzanine floors.
Full Automatic Production Process
This machine adopts an integrated full-automatic control system, which completes the entire production process from steel coil uncoiling, material leveling, optional pre-punching, precision roll forming, fixed-length cutting to finished product output in a seamless and synchronized manner. Without manual intervention in the core production links, it effectively avoids human errors caused by manual operation, ensures stable production rhythm, and realizes continuous mass production. The whole process is intelligently monitored, and any abnormal situation can be quickly alarmed, ensuring safe and reliable operation.
Core Features & Advantages
- Full Automation & Intelligent Control: Equipped with a high-performance PLC control system and a user-friendly HMI touchscreen, it supports one-key parameter setting (such as product length, quantity, and forming speed) and real-time production monitoring. The system can automatically adjust production parameters according to different specifications, realizing intelligent operation and reducing the requirement for operator skills.
- High Precision & Stable Quality: Adopting precision-machined forming rollers (heat-treated and chrome-plated) and a heavy-duty rigid frame, it ensures that the formed C section purlins have accurate cross-sectional dimensions, uniform shape, high straightness, and no burrs. The finished products can be directly used for construction and installation without secondary processing, saving time and cost.
- High Efficiency & Labor Saving: The full-automatic production mode eliminates the need for manual feeding, forming, and cutting, reducing labor input to the greatest extent. It supports continuous high-speed operation, significantly improving production capacity and shortening the production cycle, which is especially suitable for large-scale batch production.
- Strong Adaptability: It can flexibly adjust parameters to produce C section steel purlins of various specifications, perfectly matching the diverse needs of different construction projects. The modular design makes it easy to replace rollers and adjust specifications, with strong versatility.
- Durable & Low Maintenance: Core components (rollers, shafts, cutting blades) are made of high-grade heat-treated materials, with excellent wear resistance and long service life. The full-automatic system has a low failure rate, and the modular structure facilitates daily maintenance and troubleshooting, reducing operational and maintenance costs.
Applications
- Steel structure buildings (warehouses, workshops, factories, commercial buildings)
- Prefabricated houses and modular buildings
- Agricultural buildings (barns, greenhouses, agricultural sheds)
- Solar panel support structures and photovoltaic power stations
- Mezzanine floors, partition systems, and light steel keel projects
Why Choose Our Machine
Our Full Automatic C Section Steel Purlin Forming Machine integrates advanced automation technology, precision forming technology, and intelligent control system, focusing on solving the pain points of low efficiency, high labor cost, and unstable quality in traditional purlin production. It is designed with user needs in mind, featuring easy operation, stable performance, and high cost-effectiveness. Whether it is a small and medium-sized processing enterprise or a large-scale steel structure manufacturer, this machine can bring significant economic benefits and improve market competitiveness, making it an ideal equipment for modern C section steel purlin production.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
