Product Overview
The High Efficiency Metal Stud & Track Machine is a state-of-the-art, energy-saving roll forming system meticulously designed for the mass production of drywall framing components. Engineered to meet the rigorous demands of modern construction, this advanced equipment seamlessly transforms galvanized steel coils into premium metal studs and tracks. Governed by an intelligent PLC control system and featuring a highly optimized mechanical architecture, it guarantees exceptional production speeds while drastically reducing power consumption. This drywall channel roll former is the ultimate strategic asset for manufacturers seeking to maximize operational efficiency, lower utility costs, and supply high-quality steel framing to the booming light steel construction market.

Key Features & Advantages

Energy-Saving & Eco-Friendly Architecture: Designed with sustainability and cost-efficiency in mind, the machine utilizes high-efficiency variable-frequency drive (VFD) motors and an optimized hydraulic system. This intelligent energy management significantly reduces power consumption during both active forming and idle states, lowering overall electricity bills and promoting a greener manufacturing footprint.
High-Efficiency Continuous Production: Engineered for maximum throughput, the streamlined mechanical layout and precision-calibrated forming stations ensure rapid, uninterrupted material feeding and forming. This high-efficiency design allows manufacturers to effortlessly fulfill large-volume orders and meet tight project deadlines.
Intelligent PLC Automation: Governed by a cutting-edge Programmable Logic Controller (PLC) and a user-friendly touchscreen HMI, the machine automates the entire workflow. Operators can effortlessly set stud/track lengths, batch quantities, and punching parameters. The intelligent system ensures high repeatability, precise length counting via encoders, and rapid recipe switching to minimize downtime.

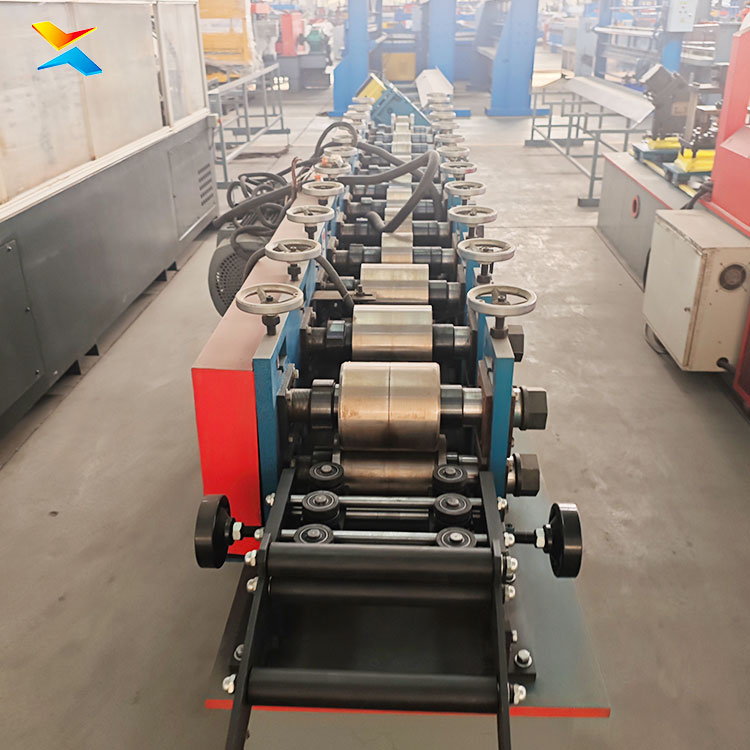

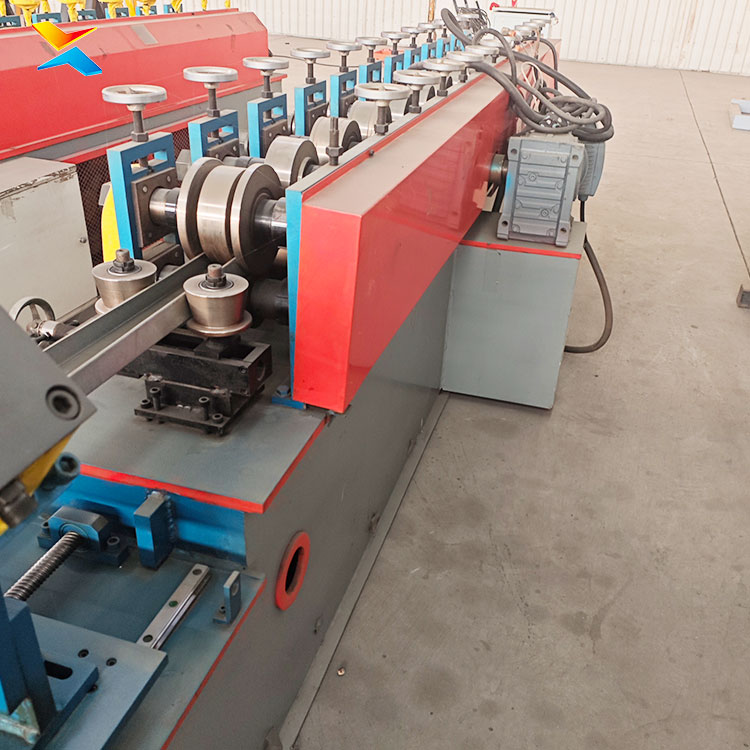

Precision Roll Forming & Integrated Punching: The forming stations are equipped with meticulously calibrated, hard-chromed rollers crafted from premium tool steel (such as Cr12 or 45# steel). This guarantees crisp, uniform channels and perfect interlocking capabilities. Additionally, the integrated hydraulic punching system can automatically create precise mounting holes directly during the forming process, eliminating secondary processing.

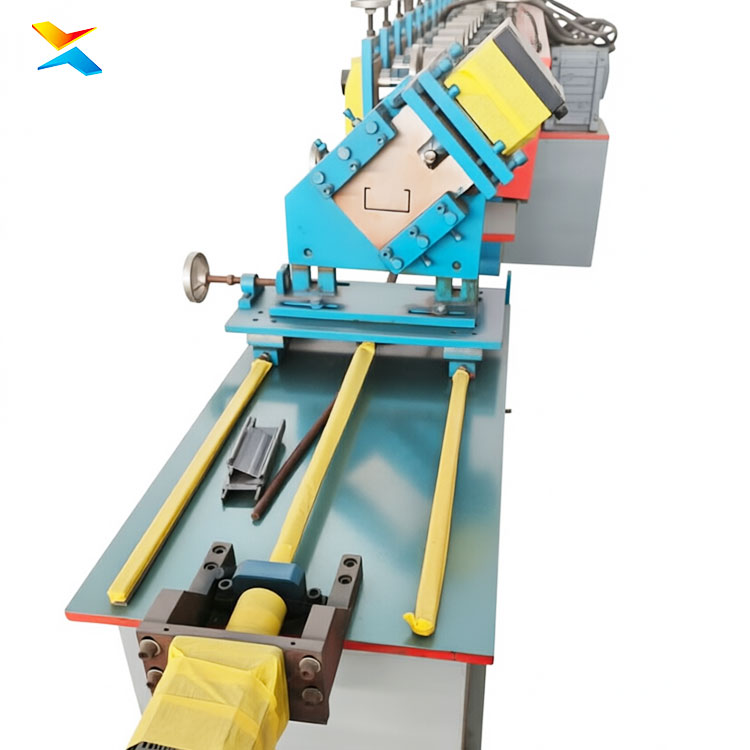

Continuous Hydraulic Flying Cut-Off: Equipped with an advanced hydraulic flying shear mechanism, the machine dynamically tracks the moving profile to execute clean, burr-free cuts at exact lengths without stopping the production line. This seamless cutting technology maximizes manufacturing efficiency while maintaining strict dimensional tolerances.
Surface Protection & Material Versatility: Specifically optimized for processing galvanized steel (GI) and color steel (PPGI) coils, the machine’s smooth roller surfaces and precision guide systems prevent scratching or peeling of the protective zinc coating. This ensures the final drywall channels maintain their superior corrosion resistance, structural integrity, and long-term durability.

Typical Applications
The high-precision, energy-efficient metal studs and tracks produced by this machine are the foundational components for modern construction, widely utilized across diverse sectors, including:

Light Steel Frame Construction: Manufacturing the primary structural framework for residential homes, villas, and multi-story buildings, offering superior seismic resistance and faster assembly times.
Interior Partition Walls & Ceilings: Producing lightweight, fire-resistant, and sound-insulating steel framing for commercial offices, hospitals, hotels, and retail spaces.
Drywall & Plasterboard Systems: Supplying perfectly aligned C-studs and U-tracks that serve as the reliable structural base for gypsum boards and acoustic panels.
Modular & Prefabricated Buildings: Supporting the high-volume, cost-effective production of standardized steel components for rapid-deployment modular housing and temporary structures.

Why Choose This Machine?

The High Efficiency Metal Stud & Track Machine is the definitive choice for forward-thinking manufacturers who understand that operational efficiency and energy conservation are the keys to future profitability. By combining high-speed production with an energy-saving design and intelligent PLC automation, it empowers fabricators to significantly lower their cost-per-unit and reduce their environmental impact. Investing in this equipment allows businesses to streamline their manufacturing processes, deliver superior drywall framing components, and build a highly competitive, sustainable presence in the global light steel construction market, ultimately driving long-term growth and profitability.

Previous: Automatic Light Steel Keel Roll Forming Machine | High Precision C U Channel Steel Framing Machine

Next:

♦ COMPANY PROFILE:

Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

Advantages of Roll Forming A Metal Part

There are several advantages of using roll forming for your projects:

The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
It can provide better dimensional control than other competing metal forming processes.
Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.

Roll forming is typically a higher speed process.
Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
Roll forming utilizes material more efficiently than other competing processes.
Roll formed shapes can be developed with thinner walls than competing processes

Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
