Product Overview
The Gear Box Driven Stud Track Machine is an advanced, high-efficiency roll forming production line engineered for the continuous manufacturing of drywall channels, metal studs, and tracks. Utilizing a robust gear box transmission system and a cutting-edge No-Stop (flying) cutting technology, this equipment ensures uninterrupted, high-speed production. It delivers exceptional operational stability, minimal noise, and precise dimensional accuracy, making it an ideal manufacturing solution for large-scale light steel framing and drywall construction systems.
Key Features & Advantages
- Gear Box Driven Transmission: Unlike traditional chain-driven systems, this machine is powered by a heavy-duty gear box. This advanced transmission design provides superior torque, smoother power delivery, and significantly reduces operational noise. It also minimizes mechanical wear, ensuring long-term stability and extended equipment lifespan.
- No-Stop (Flying) Cutting System: Equipped with a high-precision servo tracking cutting mechanism, the machine achieves continuous, uninterrupted production. The cutter synchronizes perfectly with the moving material, delivering clean, burr-free cuts at exact lengths without halting the roll forming process. This maximizes production speed and eliminates cycle-time bottlenecks.
- High-Speed & Smooth Operation: The combination of the gear box drive and optimized mechanical architecture allows for high-speed continuous forming. The system operates with minimal vibration and noise, ensuring a stable production environment while significantly boosting daily output capacity.

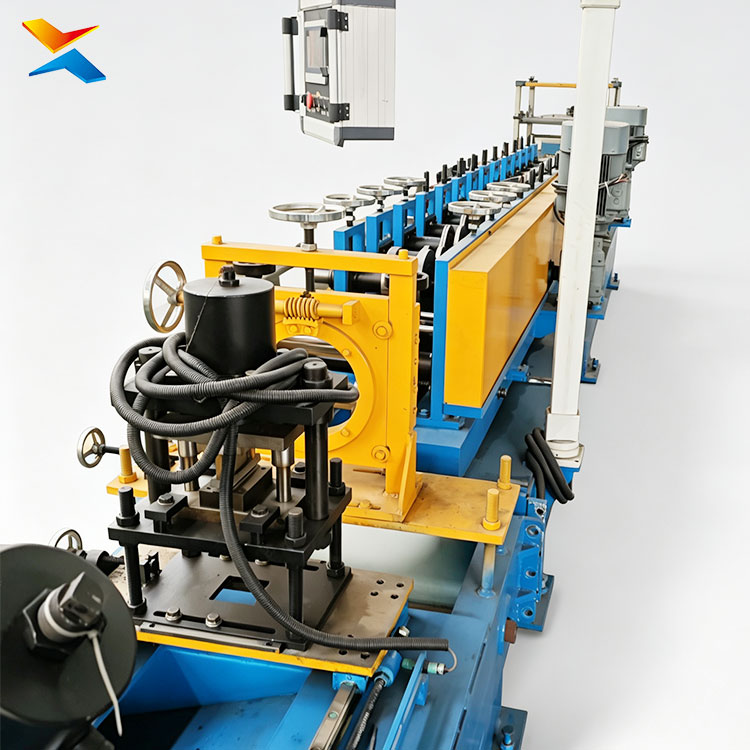

- Intelligent PLC Automation: Driven by a state-of-the-art PLC control system with a user-friendly interface, the production line automates the entire workflow. From decoiling and precision forming to automatic punching and no-stop cutting, it guarantees flawless repeatability and minimizes manual intervention.

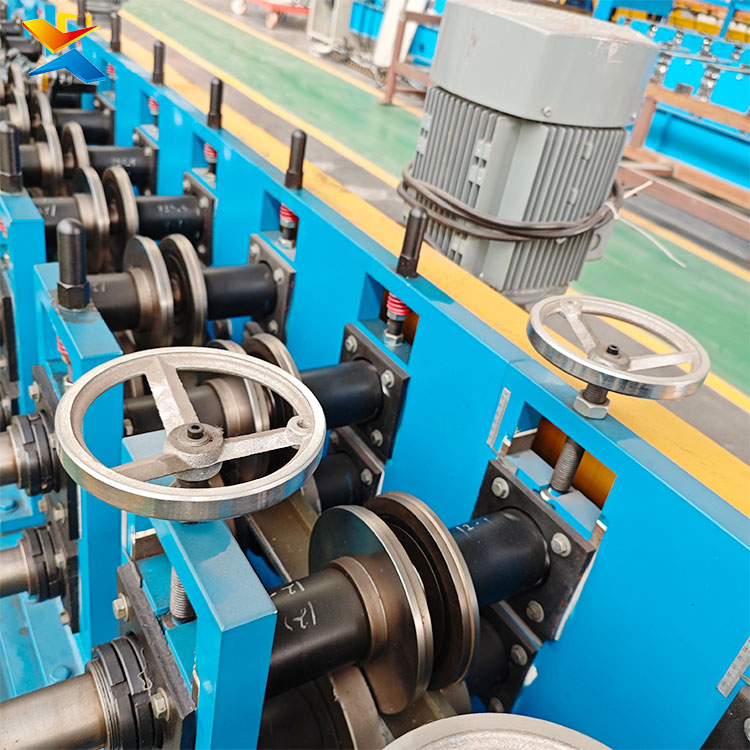

- Precision Roll Forming Technology: Utilizing high-grade, heat-treated rollers and precision-ground shafts, the machine accurately forms consistent C-stud and U-track profiles. This guarantees strict dimensional tolerances, smooth surface finishes, and reliable interlocking for seamless on-site drywall assembly.
- Robust & Durable Construction: Built with a reinforced main frame and premium, wear-resistant components (such as Cr12 mould steel cutting blades), the machine is engineered to withstand continuous, high-load operations. This rugged design ensures consistent product quality and low maintenance frequency.
Applications
This No-Stop Cutting Drywall Channel Roll Former is essential for producing structural components used in:
- High-volume drywall partition walls and interior framing systems
- Suspended ceiling grids and furring channels
- Prefabricated and modular residential/commercial buildings
- Light steel villa construction and industrial steel-framed structures
Value Proposition
By integrating a silent, durable gear box transmission with an uninterrupted No-Stop cutting system, this machine empowers manufacturers to achieve unmatched production efficiency and superior product quality. It drastically reduces cycle times and mechanical maintenance costs, providing a highly reliable, high-speed manufacturing solution for the demanding drywall and light steel framing market.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
