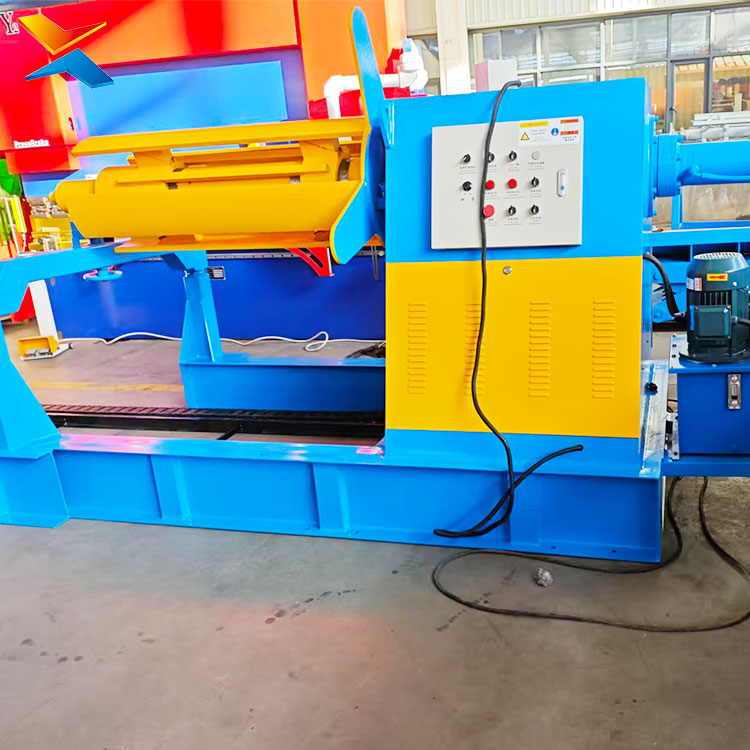

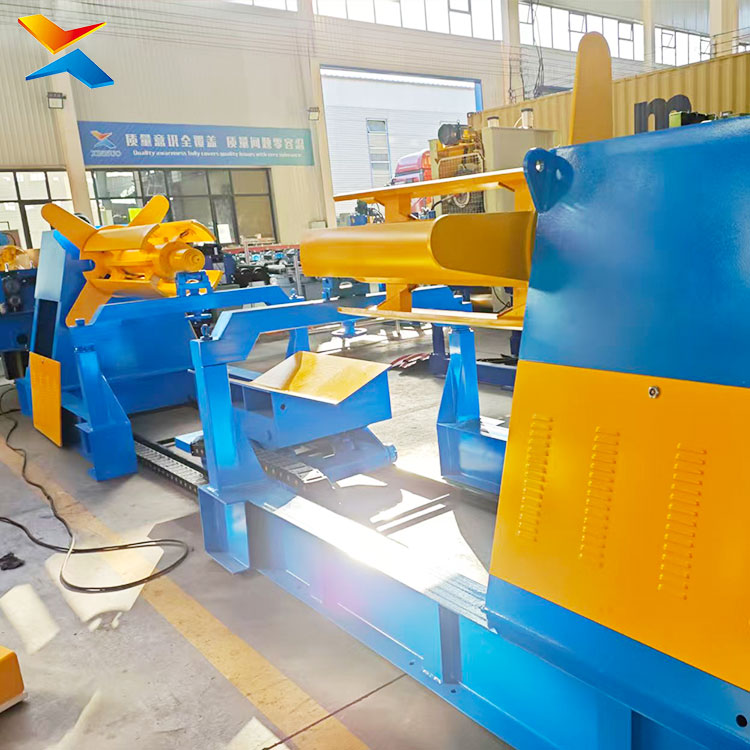

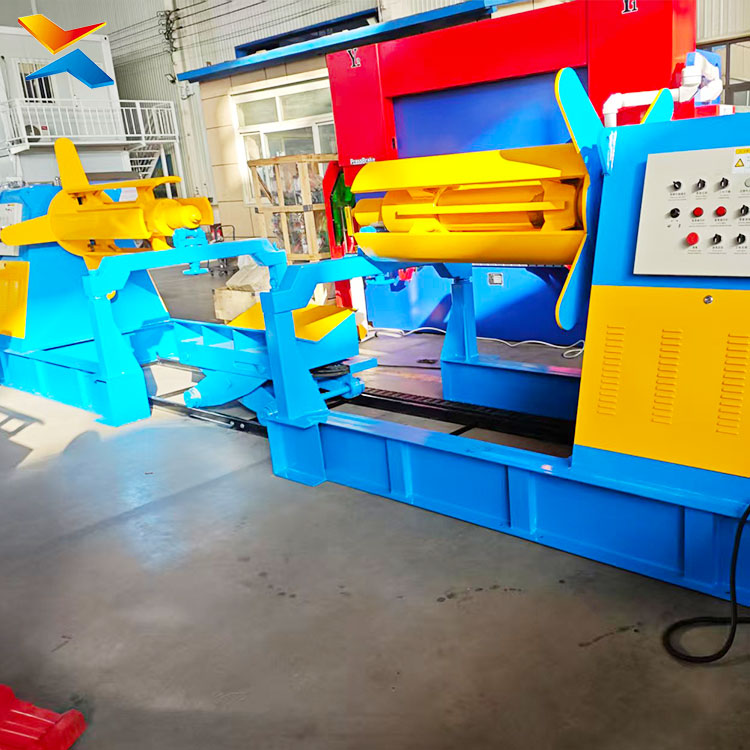

The Xinnuo Automatic Hydraulic Decoiler is the coil-feeding foundation of a metal sheet roll forming factory — the machine that receives steel coil from the factory’s coil yard, grips it with hydraulic precision, and feeds the strip under controlled tension into whichever forming line the production schedule requires. In a modern metal sheet factory — one that produces C/Z purlins for steel structures, trapezoidal roof and wall panels, composite sandwich panels, floor decking, or slit strip for downstream forming — the decoiler is not an isolated machine but the first node of every production line and the point where raw material quality is either preserved or compromised. The factory perspective on the decoiler is different from the line perspective: a factory manages multiple lines, multiple coil specifications, and a coil yard that may hold coils from several suppliers of varying origin. The decoiler’s job in this context is not merely to feed one line but to do so reliably across the factory’s entire coil inventory — accepting every coil the yard holds, feeding it straight and true, and converting raw coil inventory into consistent strip feed quality that the factory’s forming precision was designed to process.
The automatic and hydraulic designations describe the two capability layers that make this reliability possible. The hydraulic layer is the coil-gripping mechanism: the mandrel carries a hydraulically actuated expansion system that grips the coil’s inner diameter with a force set by system pressure — consistent, operator-independent, and maintained continuously from the first wrap to the last, regardless of coil weight or the vibration of a long uncoiling run. The concentric grip holds the coil’s center of rotation on the mandrel axis, preventing the eccentric rotation that causes strip edge-wander entering the forming stations. The automatic layer is the operating mode: on factory-integrated lines, the decoiler’s brake tension is managed by the line PLC — released on line start, engaged on line stop, adjusted with line speed — while the operator’s touchscreen provides the full operating picture: coil loaded, tension setpoint, strip feed status, and fault conditions. The automatic layer also covers the factory’s scheduling reality: quick coil-change sequences that minimize the 20–40 minutes of downtime each coil change represents, converting coil inventory turnover into production time rather than changeover cost.
The Xinnuo decoiler range serves the metal sheet factory across two capacity classes, each with production-proven configurations. The cantilever decoiler — the industry’s most widely deployed configuration — handles standard coils up to 3 tons with a compact 1,100–1,650mm footprint, serving C/Z purlin lines, single-layer roof panel lines, and lighter composite panel configurations. The A-frame decoiler handles 5-ton and above coils with its tripod geometry and inclined loading arms, serving the heavy end: the CZ/CZU flagship purlin lines, composite panel lines requiring dual decoilers (one for the upper skin coil, one for the lower — and up to four decoilers on the three-layer no-change panel line configuration), the floor deck line whose A-frame unit stands 6,500mm tall to accept heavy 3–5-ton coils by crane, and heavy-duty slitting and leveling lines. Across the factory, the same decoiler family standardizes operator training, spare parts inventory, and maintenance procedures — one familiar machine, repeated across every line.
The factory-level engineering data behind these configurations is documented across Xinnuo’s production-proven line layouts. On the floor deck line, the A-frame decoiler is specified at 1,450mm width × 6,500mm height, with a workshop ceiling requirement of 7 meters minimum for crane-based coil loading and a reinforced concrete floor rated at 800 kg/m² or above. On the leveling-and-shear line, the hydraulic decoiler stands approximately 1,800mm high on a 1,700mm base, feeding through a buffer zone of 4,000mm minimum into the shear station. On the slitting line, the decoiler section occupies approximately 3,500mm of line length, and on the Brazil-export leveling line the decoiler is driven by 7.5KW + 4KW motors within the line’s 36.5KW total installed power — concrete numbers that let a factory planner verify that the decoiler they are buying fits the line, the workshop, and the coil yard they already have or are building.
For the Middle East metal sheet factory, three operational realities shape the decoiler specification. Coil-source diversity: Middle East factories import coils from China, Turkey, India, and emerging local production, with varying coil ID, OD, weight, and width specifications. The Xinnuo decoiler’s mandrel expansion range is factory-configured to the customer’s complete coil specification set, ensuring every coil the yard holds — from whichever supplier — feeds correctly. Climate: coils and machinery sit in workshops where ambient temperature exceeds 48°C through the summer months; the hydraulic power unit and circuits are specified with sealed components and a cooling circuit engineered for sustained high-temperature operation, so the decoiler’s grip force and tension control remain consistent through a July afternoon as much as a January morning. Support infrastructure: the factory’s uptime depends on rapid technical response — Xinnuo provides on-site installation and commissioning by senior engineers, 24/7 WeChat/WhatsApp remote diagnostics, and spare parts delivered via DHL express to ports and industrial hubs across the GCC and wider Middle East. Hebei Xinnuo’s 28-year manufacturing history, ISO 9001:2015 certified processes, CE certification issued by an EU Notified Body, 14-year Alibaba Gold Supplier verification with SGS/TÜV audits, and National High-Tech Enterprise certification complete the qualification framework that Middle East factory owners apply when selecting coil-feeding equipment for their production infrastructure.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
