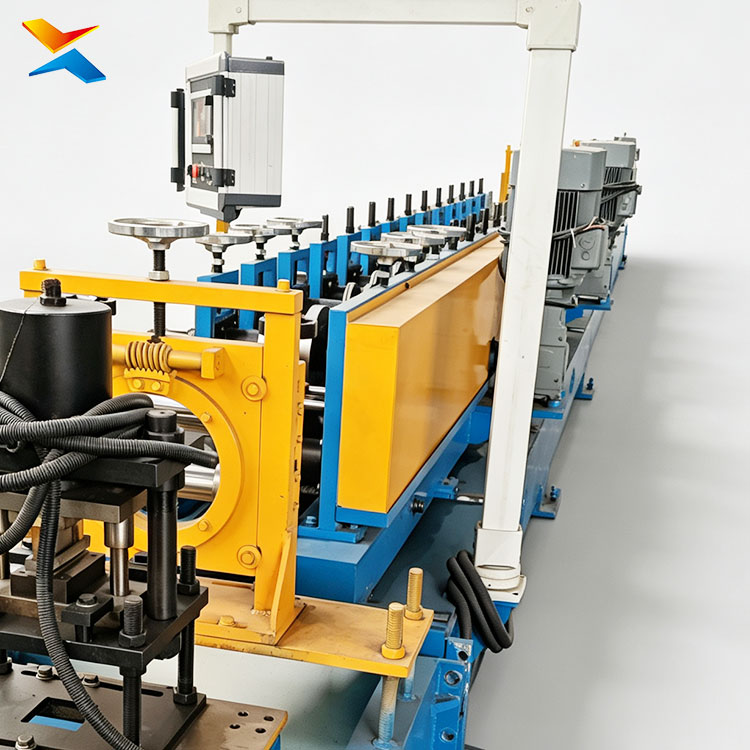

Product Overview
The High Speed CNC Metal Stud Machine is an advanced, fully automatic light steel framing roll forming line designed for the rapid and precise production of cold-formed steel structural components. Utilizing state-of-the-art CNC (Computer Numerical Control) and PLC technology, this equipment efficiently transforms galvanized or color steel coils into high-strength wall studs, floor tracks, and ceiling furring channels. It is an essential manufacturing solution for modern prefabricated construction, drywall partition systems, and suspended ceiling frameworks, offering exceptional speed, accuracy, and operational efficiency.
Key Features & Advantages
- High-Speed CNC Automation: Driven by an intelligent CNC/PLC control system with a user-friendly touchscreen interface, the machine automates the entire production workflow. From decoiling, leveling, and precision roll forming to automatic punching and cutting, it ensures flawless repeatability, exact length tolerances, and minimal human error.
- Optimized High-Speed Production: Engineered for maximum throughput, this line operates at high speeds without compromising structural integrity. Its streamlined mechanical design and efficient transmission systems significantly boost daily output capacity, making it ideal for large-scale manufacturing demands.

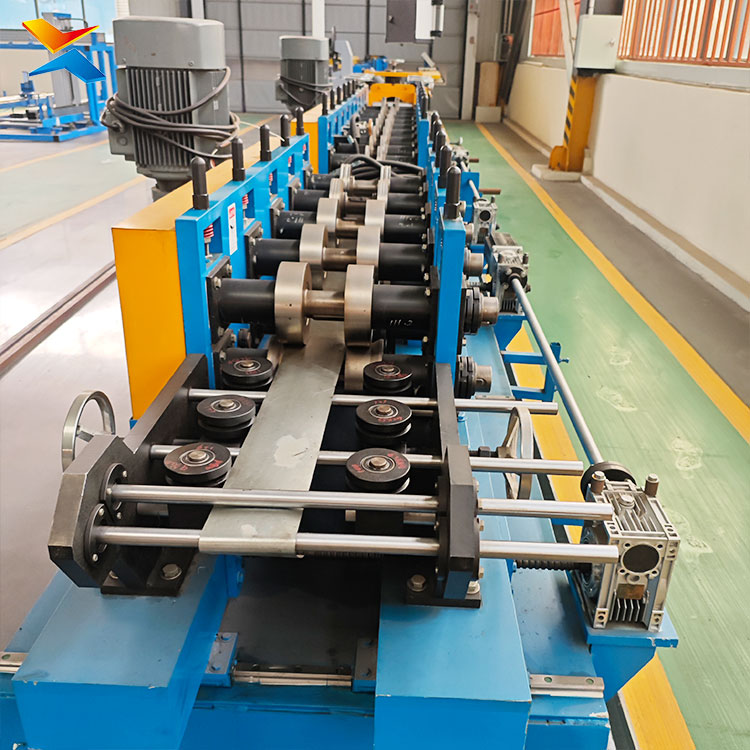

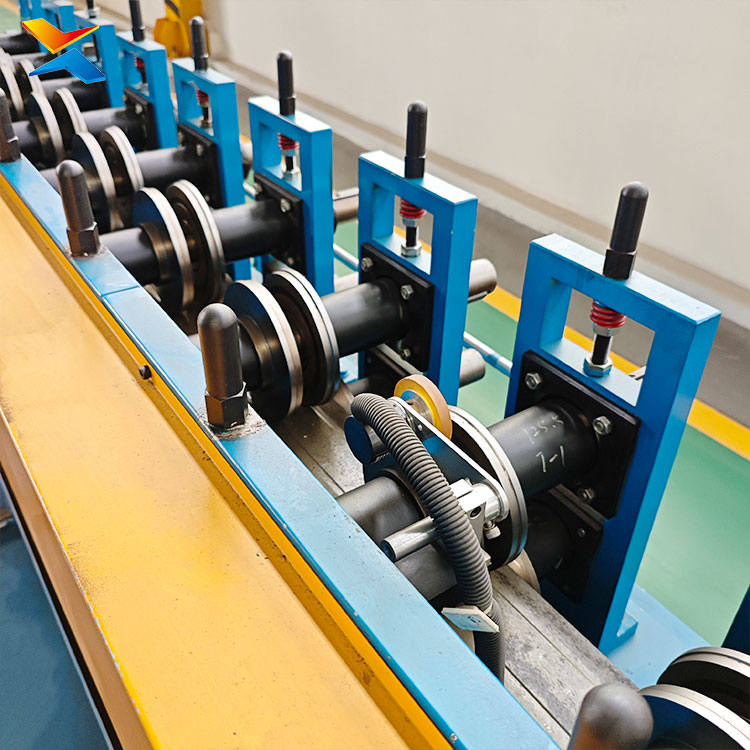

- Precision Roll Forming Technology: The core forming stations feature high-grade, heat-treated rollers and precision-ground shafts. This robust architecture guarantees consistent profile dimensions, smooth surface finishes, and reliable interlocking mechanisms, ensuring seamless on-site assembly for light steel framing systems.
- Integrated Intelligent Punching & Cutting: Equipped with a high-speed hydraulic or mechanical punching system, the machine accurately creates service holes, screw dimples, and structural embossments based on pre-programmed specifications. Coupled with an automatic cutting unit, it delivers clean, burr-free edges with exact length tolerances, effectively minimizing material waste.
- Versatile Profile Compatibility: Designed with high flexibility, this roll forming line can be customized to manufacture a wide variety of light steel framing profiles, including C-studs, U-tracks, and specialized keel shapes. This adaptability allows manufacturers to meet diverse architectural and engineering requirements without extensive retooling.
- Robust & Durable Construction: Built with a heavy-duty main frame and premium, wear-resistant components (such as Cr12 mould steel cutting blades), the machine is engineered to withstand continuous, high-load operations. This rugged design minimizes vibration, extends tooling life, and ensures long-term operational stability.
Applications
This automatic light steel framing roll forming line is essential for producing structural components used in:
- Prefabricated and modular residential/commercial buildings
- Light steel villa construction and interior partition walls
- Suspended ceiling systems and drywall framing
- Industrial steel-framed structures and warehouse facilities
Value Proposition
By combining high-speed CNC automation with precision roll forming technology, this Metal Stud Machine empowers manufacturers to capitalize on the booming green construction market. It enables the mass production of high-precision, code-compliant steel framing components, drastically reducing construction time and labor costs while delivering superior structural safety and sustainability.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
