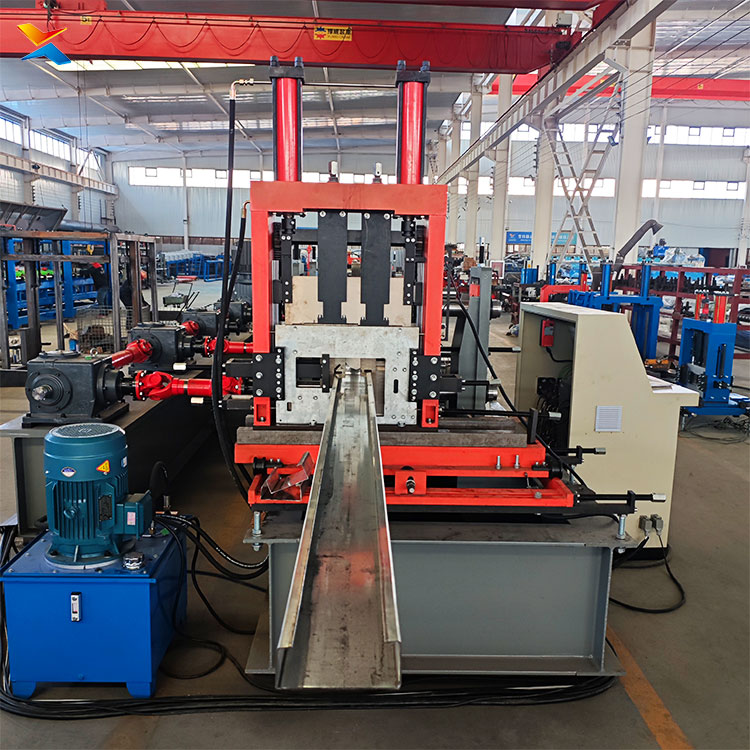

High Speed C Section Steel Purlin Cold Roll Forming Machine Product Description
The High Speed C Section Steel Purlin Cold Roll Forming Machine is a high-performance, fully automatic cold roll forming equipment specially developed for the high-speed, mass production of high-precision C section steel purlins. Integrating advanced high-speed forming technology and full automation control, it realizes efficient, stable, and intelligent production throughout the entire process, greatly improving production capacity, reducing labor costs, and ensuring consistent product quality. It is widely applied in processing galvanized steel, carbon steel, and color-coated steel coils, providing high-strength, standard-compliant structural profiles for steel structure buildings, prefabricated houses, warehouses, factories, workshops, solar support systems, and mezzanine floors.
High-Speed Cold Roll Forming Process
This machine adopts advanced continuous cold roll forming technology, combined with a high-speed transmission system and integrated full-automatic control, to complete the entire production process from steel coil uncoiling, material leveling, optional pre-punching, precision roll forming, fixed-length cutting to finished product output in a seamless, synchronized, and high-speed manner. Without manual intervention in the core production links, it effectively avoids human errors caused by manual operation, ensures a stable high-speed production rhythm, and realizes continuous mass production. The whole process is intelligently monitored, and any abnormal situation can be quickly alarmed, ensuring safe and reliable operation even at high speeds.
Core Features & Advantages
- High-Speed Forming Performance: Equipped with a high-power transmission system and precision-machined forming components, the machine achieves stable high-speed operation, significantly improving production efficiency compared to traditional equipment. It supports continuous high-speed forming, effectively shortening the production cycle and meeting the demand for large-scale batch production.
- Full Automation & Intelligent Control: Equipped with a high-performance PLC control system and a user-friendly HMI touchscreen, it supports one-key parameter setting (such as product length, quantity, and forming speed) and real-time production monitoring. The system can automatically adjust production parameters according to different specifications, realizing intelligent operation and reducing the requirement for operator skills.
- High Precision & Stable Quality: Adopting precision-machined forming rollers (heat-treated and chrome-plated) and a heavy-duty rigid frame, it ensures that the formed C section purlins have accurate cross-sectional dimensions, uniform shape, high straightness, and no burrs—even during high-speed operation. The finished products can be directly used for construction and installation without secondary processing, saving time and cost.
- Efficiency & Labor Saving: The full-automatic production mode eliminates the need for manual feeding, forming, and cutting, reducing labor input to the greatest extent. The high-speed operation mode further improves production capacity, making it especially suitable for large-scale batch production and helping enterprises reduce production costs.
- Strong Adaptability: It can flexibly adjust parameters to produce C section steel purlins of various specifications, perfectly matching the diverse needs of different construction projects. The modular design makes it easy to replace rollers and adjust specifications, with strong versatility and adaptability to different production requirements.
- Durable & Low Maintenance: Core components (rollers, shafts, cutting blades) are made of high-grade heat-treated materials, with excellent wear resistance and long service life, adapting to long-term high-speed operation. The full-automatic system has a low failure rate, and the modular structure facilitates daily maintenance and troubleshooting, reducing operational and maintenance costs.
Applications
- Steel structure buildings (warehouses, workshops, factories, commercial buildings)
- Prefabricated houses and modular buildings
- Agricultural buildings (barns, greenhouses, agricultural sheds)
- Solar panel support structures and photovoltaic power stations
- Mezzanine floors, partition systems, and light steel keel projects
Why Choose Our Machine
Our High Speed C Section Steel Purlin Cold Roll Forming Machine integrates advanced high-speed cold roll forming technology, full automation control, and precision manufacturing. It focuses on solving the pain points of low efficiency, high labor cost, and unstable quality in traditional purlin production, and is designed with user needs in mind. With its high-speed performance, stable quality, easy operation, and high cost-effectiveness, it is suitable for both small and medium-sized processing enterprises and large-scale steel structure manufacturers. This machine can bring significant economic benefits, improve market competitiveness, and become an ideal equipment for modern high-efficiency C section steel purlin production.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
