Product Overview
The High Efficiency Roller Shutter Machine is a next-generation, energy-saving metal door panel roll former meticulously engineered to maximize production throughput while minimizing operational costs and power consumption. Designed for modern manufacturing environments that prioritize sustainability and profitability, this advanced equipment seamlessly transforms steel or aluminum coils into premium rolling shutter slats. Governed by an intelligent PLC control system, the machine ensures flawless precision, rapid setup, and continuous automated production. This high-efficiency roll former is the ultimate strategic asset for door fabricators looking to significantly reduce their carbon footprint, lower utility expenses, and dominate the market with superior, cost-effective security door panels.
- Energy-Saving & Eco-Friendly Design: Engineered with high-efficiency, variable-frequency drive (VFD) motors and an optimized hydraulic system, this machine drastically reduces power consumption during idle and active states. This energy-efficient architecture not only lowers electricity bills but also minimizes heat generation and mechanical wear, promoting a greener manufacturing process.

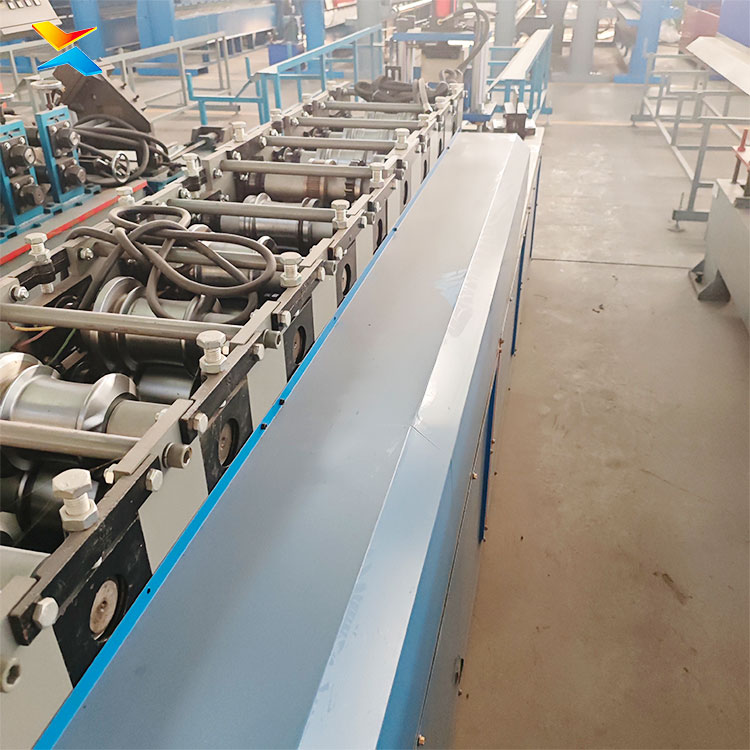

- High-Efficiency Continuous Production: Built for maximum output, the machine features a streamlined mechanical layout and high-speed roll forming stations. This design ensures rapid material feeding, continuous forming, and uninterrupted production cycles, allowing manufacturers to fulfill large-volume orders in record time.
- Intelligent PLC Automation: Governed by a cutting-edge Programmable Logic Controller (PLC) and a multi-language touchscreen HMI, the system automates the entire workflow. Operators can effortlessly input slat dimensions, batch quantities, and punching parameters. The intelligent control ensures high repeatability, precise length counting, and rapid recipe switching.

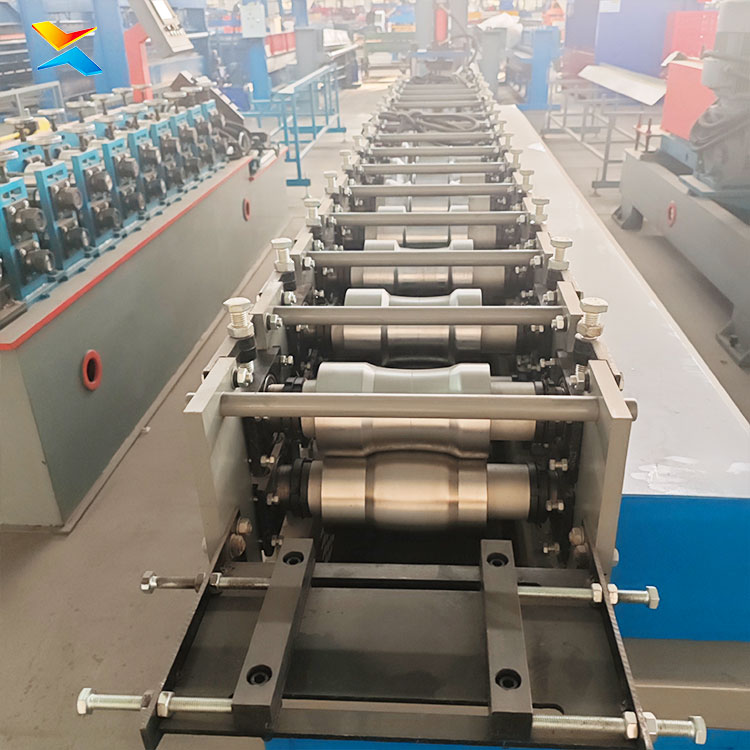

- Precision Roll Forming & Interlocking: The forming stations are equipped with meticulously calibrated, hard-chromed rollers crafted from premium tool steel. This guarantees that every metal door panel features exact interlocking mechanisms, uniform curvature, and crisp edges, ensuring smooth, noise-free operation and superior wind-load resistance.

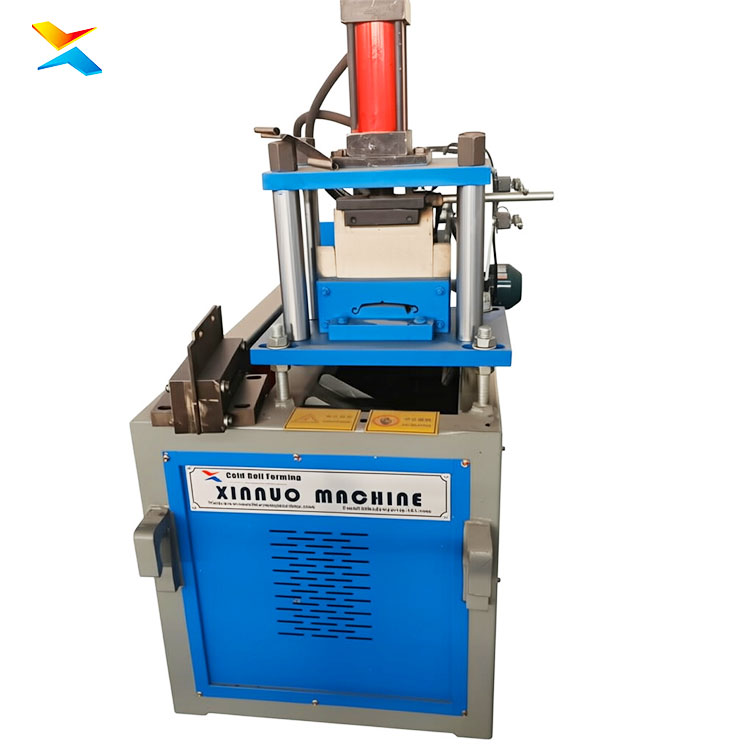

- Continuous Hydraulic Flying Cut-Off: Equipped with an advanced hydraulic flying shear system, the machine dynamically tracks the moving panel to execute clean, burr-free cuts at exact lengths without stopping the production line. This seamless cutting technology maximizes throughput while maintaining strict dimensional tolerances.
- Surface Protection & Versatility: Specifically optimized for processing PPGI, GI, and aluminum coils, the machine’s smooth roller surfaces and precision guide systems prevent scratching or peeling of protective coatings. This ensures the final rolling shutter panels maintain their aesthetic appeal, corrosion resistance, and long-term durability.
The high-efficiency, energy-saving roller shutter panels produced by this machine are widely utilized across diverse commercial and residential sectors, including:
- Industrial & Warehouse Facilities: Manufacturing durable, wind-resistant rolling shutters for large-span factories, logistics hubs, and storage centers.
- Commercial & Retail Spaces: Producing aesthetically pleasing, secure storefront grilles and rolling doors for shopping malls, retail shops, and banks.
- Residential Garages & Parking: Creating sleek, modern, and secure rolling garage doors and parking lot barriers for residential communities and commercial structures.
- Public Infrastructure: Supplying reliable, security-enhanced rolling shutters for schools, hospitals, airports, and government buildings.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
