Product Overview

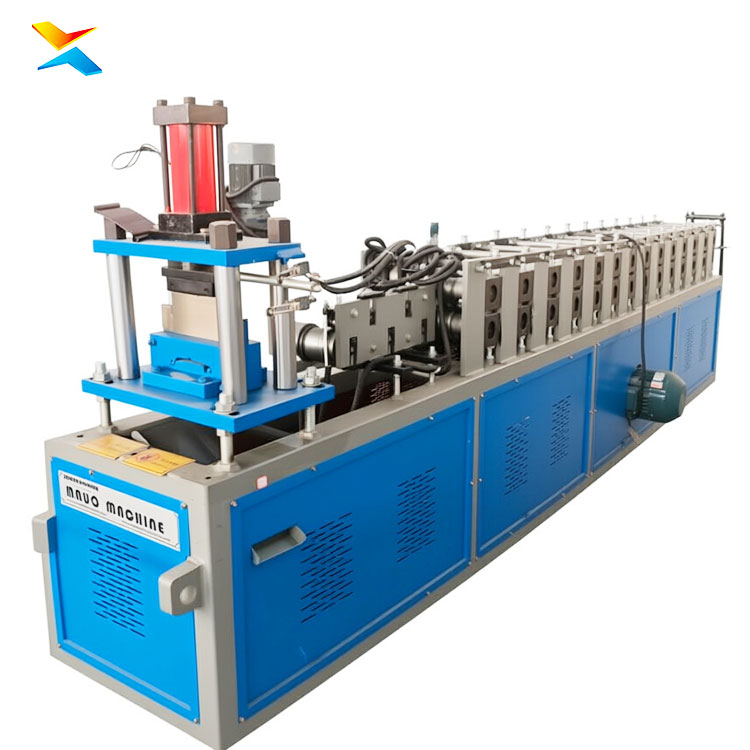

The Automatic Roller Shutter Door Roll Forming Machine is an advanced, high-precision manufacturing system specifically engineered for the continuous production of premium steel rolling doors. Designed to meet the rigorous demands of modern security and architectural applications, this equipment seamlessly transforms steel coils into perfectly interlocking rolling shutter slats with exceptional speed and accuracy. By integrating intelligent PLC automation, precision roll forming stations, and a continuous flying cut-off system, it guarantees flawless dimensional tolerances and structural integrity. This high-precision steel rolling door making machine is the ultimate turnkey solution for fabricators seeking to produce superior security doors, industrial shutters, and commercial garage doors with unmatched efficiency and consistency.

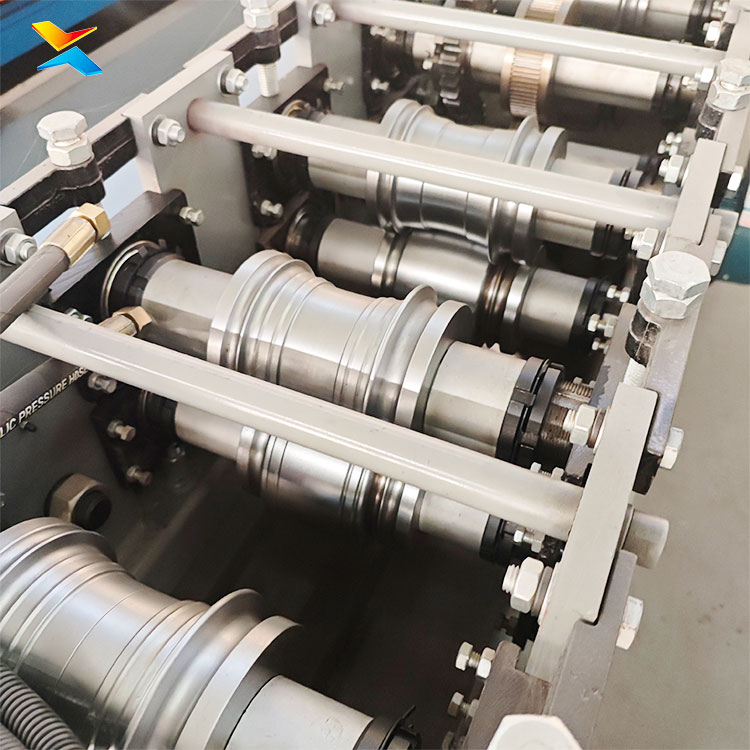

- High-Precision Roll Forming Technology: The core of this machine lies in its meticulously calibrated forming stations. Engineered with premium-grade, hard-chromed rollers, it ensures that every rolling door slat features exact interlocking mechanisms, uniform curvature, and crisp edges. This precision guarantees smooth, noise-free rolling operation and superior wind-load resistance in the final product.
- Fully Automatic PLC Control System: Governed by a cutting-edge Programmable Logic Controller (PLC) and a user-friendly touchscreen HMI, the machine automates the entire production workflow. Operators can effortlessly set slat lengths, batch quantities, and production speeds. The intelligent system ensures high repeatability, automated length counting, and rapid recipe switching, significantly minimizing human error.
- Continuous Hydraulic Flying Cut-Off: Equipped with a high-performance hydraulic flying shear system, the machine dynamically tracks the moving slat profile. This technology executes clean, burr-free cuts at exact lengths without stopping the production line, maximizing throughput and ensuring seamless, high-speed manufacturing.
- Integrated Punching & Perforation Options: Designed for versatility, the machine can be customized with integrated hydraulic punching units to create ventilation holes, viewing windows, or specific locking mechanisms directly during the forming process. This eliminates secondary processing steps and streamlines the manufacturing cycle.

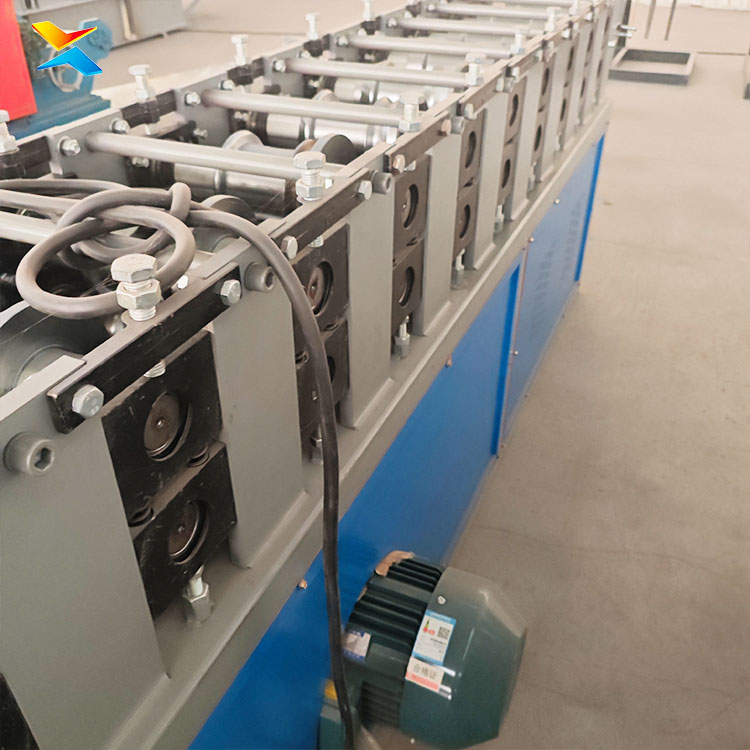

- Heavy-Duty Structural Frame: Built with a reinforced, stress-relieved steel chassis, the machine absorbs the intense forming forces and vibrations generated during high-speed operation. This robust architectural integrity guarantees stable, continuous operation and extends the service life of all mechanical components.
- Surface Protection & Material Compatibility: Specifically optimized for processing PPGI, GI, and aluminum coils, the machine’s smooth roller surfaces and precision guide systems prevent scratching, peeling, or deformation of protective coatings. This ensures the final rolling doors maintain their aesthetic appeal, corrosion resistance, and durability.
The high-precision rolling door slats produced by this automatic machine are essential components across a wide range of security and architectural sectors, including:
- Industrial & Warehouse Security: Manufacturing heavy-duty, wind-resistant rolling shutters for large-span factories, logistics centers, and storage facilities.
- Commercial & Retail Spaces: Producing aesthetically pleasing, secure storefront grilles and rolling doors for shopping malls, retail shops, banks, and exhibition halls.
- Residential Garages & Parking: Creating sleek, modern, and secure rolling garage doors and parking lot barriers for residential homes and commercial parking structures.
- Public Infrastructure: Supplying durable, fire-rated, and security-enhanced rolling shutters for airports, schools, hospitals, and government buildings.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
