Product Overview

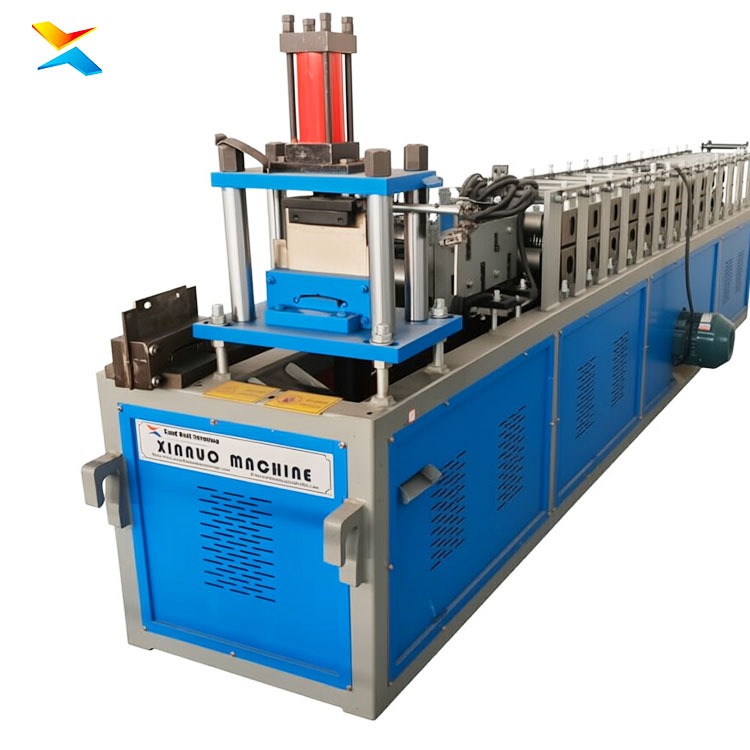

The Galvanized Steel Roller Shutter Door Machine is a specialized, heavy-duty manufacturing system engineered to produce premium security and ventilation rolling shutters. Designed specifically for processing durable galvanized steel coils, this advanced equipment integrates a high-precision hydraulic punching unit and a continuous flying cut-off system into a single automated production line. By combining robust mechanical architecture with intelligent PLC control, it empowers manufacturers to efficiently produce perfectly interlocking, ventilated shutter slats. This hydraulic punching and cutting roll forming equipment is the ultimate turnkey solution for fabricators looking to streamline their workflow, eliminate secondary processing, and dominate the market for commercial, industrial, and residential rolling doors.

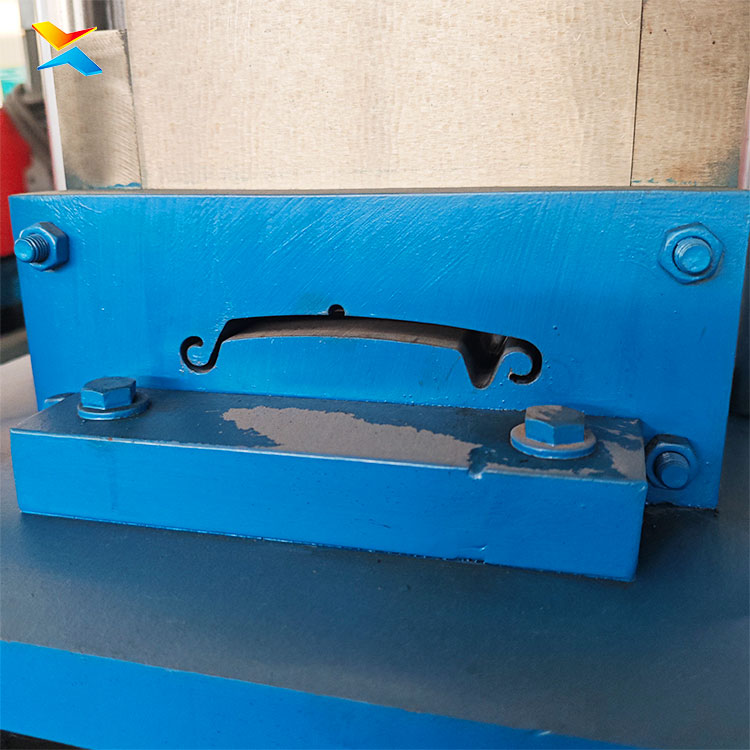

- Integrated Hydraulic Punching System: A standout feature of this machine is its optional, highly precise hydraulic punching module. It can seamlessly punch ventilation holes or viewing windows directly into the galvanized steel strip during the forming process. The hole size and spacing can be easily adjusted or disabled via the control system, providing maximum versatility for different shutter designs without affecting machine performance.
- Premium Galvanized Steel Compatibility: Specifically optimized for galvanized steel, color steel, and aluminum coils (typically ranging from 0.3mm to 1.5mm thickness). The machine features precision leveling and feeding systems to ensure the rigid galvanized material feeds perfectly straight, preventing deformation and guaranteeing consistent panel quality.

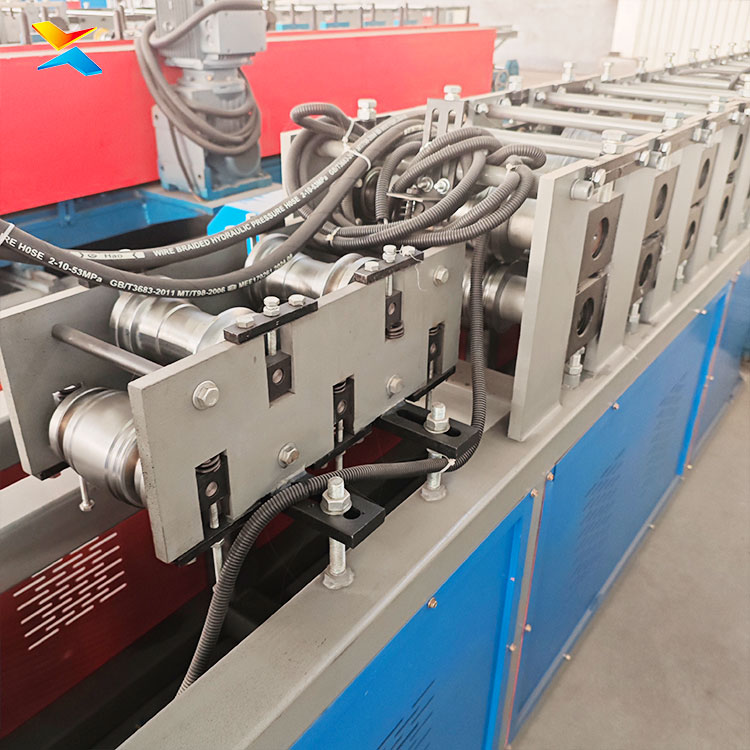

- High-Precision Roll Forming Stations: Engineered with multiple meticulously calibrated forming stations (ranging from 11 to 20 rows depending on the model), the machine utilizes premium-grade forged steel rollers with hard chrome plating. This ensures crisp, uniform interlocking mechanisms, smooth rolling operation, and superior structural integrity for wind-load resistance.
- Continuous Hydraulic Flying Cut-Off: Equipped with an advanced hydraulic cutting system featuring Cr12 mold steel blades with quenched treatment. The flying shear dynamically tracks the moving panel to execute clean, burr-free cuts at exact lengths without stopping the production line, maximizing throughput and maintaining strict dimensional tolerances.
- Intelligent PLC Automation: Governed by a cutting-edge PLC control system (such as Delta or Panasonic) and a user-friendly touchscreen HMI. Operators can effortlessly manage production quantities, slat lengths, and punching parameters. The intelligent system ensures high repeatability, automated length counting via encoders, and rapid recipe switching.
- Heavy-Duty Structural Frame: Built with a reinforced, stress-relieved steel chassis (such as 300#-350# H-beam structures), the machine absorbs the intense forming and punching forces without mechanical deflection. This robust architecture guarantees stable, continuous 24-hour operation and extends the service life of all mechanical components.
The high-precision, ventilated rolling shutter slats produced by this machine are essential components across a wide range of security and architectural sectors, including:
- Commercial & Retail Storefronts: Producing aesthetically pleasing, secure, and ventilated rolling grilles for shopping malls, retail shops, banks, and hotels.
- Industrial & Warehouse Facilities: Manufacturing heavy-duty, wind-resistant, and breathable rolling shutters for large-span factories, logistics centers, and storage facilities.
- Residential Garages & Parking: Creating sleek, modern, and secure rolling garage doors for residential homes and commercial parking structures.
- Public Infrastructure: Supplying durable, fire-rated, and security-enhanced rolling shutters for airports, schools, hospitals, and government buildings.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
