Double Layer Wall Panel Machine, Roof Panel Machine & Tile Making Machine Product Description

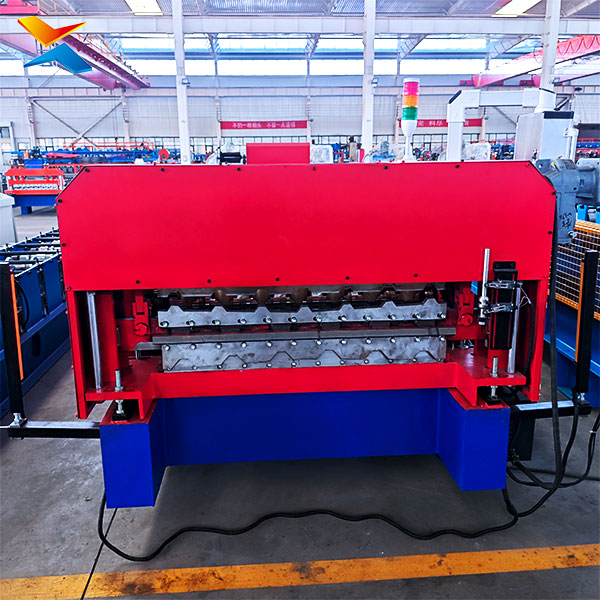

Double Layer Roof Panel Machine
The Double Layer Roof Panel Machine is a high-performance, automated cold roll forming equipment specifically engineered for the continuous production of two types of metal roof panels simultaneously. It adopts advanced cold forming technology, eliminating the need for high-temperature heating, and integrates a full set of production processes including decoiling, leveling, precision feeding, double-layer synchronous roll forming, hydraulic precision cutting, and automatic stacking, achieving one-stop production and significantly improving production efficiency while reducing labor costs.
Featuring a double-layer independent forming structure, this machine can produce two different specifications or types of roof panels (such as trapezoidal roof panels, corrugated roof panels, sandwich roof panels) at the same time. Compared with using two single-layer machines, it saves a lot of workshop space and enables quick switching between roof panel types without replacing roller sets, greatly enhancing production flexibility and adapting to the diversified needs of construction projects.
The machine is constructed with a solid welded steel frame that has undergone stress relief treatment, ensuring stable operation, strong load-bearing capacity, and high forming precision. The forming rollers are made of high-quality alloy steel, processed by quenching and tempering to achieve high hardness, wear resistance, and long service life, which guarantees the flatness, consistency, and structural strength of the produced roof panels. Equipped with an intelligent PLC touch screen control system, it supports automatic parameter setting, stepless speed regulation, accurate length counting, and fault alarm, making operation simple and easy to master even for unskilled operators.
Widely used in the construction and steel structure industries, this machine is suitable for processing various metal materials such as galvanized steel sheets, color steel sheets, aluminum sheets, and stainless steel sheets into high-quality roof panels. It can be fully customized according to customer requirements, including roof panel thickness, width, wave shape, forming speed, and cutting length, making it an ideal production equipment for steel structure factories, building material manufacturers, and construction enterprises.
Key Advantages: Energy-saving and environmentally friendly (no high-temperature heating required); High efficiency (double-layer synchronous production, increasing output by 80% compared with single-layer machines); High precision (roof panel size error ≤±0.5mm, smooth surface without burrs); Space-saving and flexible operation; Low maintenance cost and easy operation. It complies with international quality standards, with reliable performance and perfect after-sales service, helping customers reduce production costs and enhance market competitiveness.
Double Layer Tile Making Machine
The Double Layer Tile Making Machine is a high-efficiency, automated cold roll forming equipment specially designed for producing two types of metal roof tiles or wall tiles simultaneously. Based on advanced cold forming technology, it realizes one-stop continuous production without high-temperature heating, integrating decoiling, leveling, precision feeding, double-layer synchronous roll forming, hydraulic precision cutting and automatic stacking, which greatly improves production efficiency and reduces labor input.
As a professional tile-making equipment, it adopts a double-layer independent forming structure, which can produce two different specifications or styles of metal tiles (such as corrugated tiles, trapezoidal tiles, glazed tiles) at the same time. This design not only saves a lot of workshop space compared with two single-layer machines, but also allows quick switching between tile types without replacing roller sets, effectively enhancing production flexibility and meeting the diversified needs of customers.
The machine is built with a solid welded steel frame, which has undergone stress relief treatment to ensure stable operation, strong load-bearing capacity and high forming precision. The forming rollers are made of high-quality alloy steel, processed by quenching and tempering to achieve high hardness, wear resistance and long service life, ensuring the consistency and smoothness of the tile surface. Equipped with an intelligent PLC touch screen control system, it supports automatic parameter setting, stepless speed regulation, accurate length counting and fault alarm, making operation simple and easy to master even for unskilled operators.
It is widely used in the construction industry, suitable for processing various metal materials such as galvanized steel sheets, color steel sheets, aluminum sheets and stainless steel sheets into high-quality roof and wall tiles. The machine can be fully customized according to customer requirements, including tile specifications, thickness, forming speed and cutting length, which is an ideal production equipment for building material manufacturers, steel structure factories and metal processing enterprises.
Key Advantages: Energy-saving and environmentally friendly (no high-temperature heating required); High efficiency (double-layer synchronous production, improving output by 80% compared with single-layer machines); High precision (tile size error ≤±0.5mm, smooth surface without burrs); Space-saving and flexible; Easy operation and low maintenance cost. It complies with international quality standards, with reliable performance and perfect after-sales service, helping customers reduce production costs and enhance market competitiveness.
Double Layer Wall Panel Machine
The Double Layer Wall Panel Machine is a professional, automated cold roll forming equipment designed specifically for the simultaneous production of two types of metal wall panels. Adopting advanced cold forming technology, it avoids high-temperature heating, thus retaining the original strength and surface quality of metal materials, and integrates key production processes such as decoiling, leveling, precision feeding, double-layer synchronous roll forming, hydraulic precision cutting, and automatic stacking, realizing efficient one-stop continuous production and greatly reducing labor costs and production time.
With its unique double-layer independent forming structure, this machine can produce two different specifications or types of wall panels (such as trapezoidal wall panels, corrugated wall panels, composite wall panels, and partition wall panels) at the same time. Compared with two separate single-layer machines, it saves more than 50% of workshop space and allows quick switching between wall panel types without replacing roller sets, which significantly improves production flexibility and meets the diverse needs of different construction projects, such as industrial workshops, warehouses, residential buildings, and commercial buildings.
The machine is constructed with a heavy-duty welded steel frame, which has undergone strict stress relief treatment to ensure stable operation, strong load-bearing capacity, and high forming precision even during long-term continuous work. The forming rollers are made of high-quality alloy steel,经过 quenching and tempering treatment to achieve high hardness, wear resistance, and long service life, ensuring that the produced wall panels have a flat surface, uniform size, and strong structural stability. Equipped with an intelligent PLC touch screen control system, it supports automatic parameter setting, stepless speed regulation, accurate length counting, and real-time fault alarm, enabling operators to master the operation quickly without professional training.
Widely applied in the construction, steel structure, and building material industries, this machine is suitable for processing various metal materials, including galvanized steel sheets, color steel sheets, aluminum sheets, and stainless steel sheets, into high-quality wall panels. It can be fully customized according to customer requirements, such as wall panel thickness, width, shape, forming speed, and cutting length, making it an ideal production equipment for steel structure factories, building material manufacturers, and construction enterprises.
Key Advantages: Energy-saving and environmentally friendly (no high-temperature heating, low energy consumption); High efficiency (double-layer synchronous production, output increased by 80% compared with single-layer machines); High precision (wall panel size error ≤±0.5mm, no burrs on the surface); Space-saving and flexible operation; Easy maintenance and simple operation. It meets international quality standards, with reliable performance and perfect after-sales service, helping customers reduce production costs and enhance market competitiveness.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
