High Precision Trapezoidal Sheet Cold Roll Forming Machine

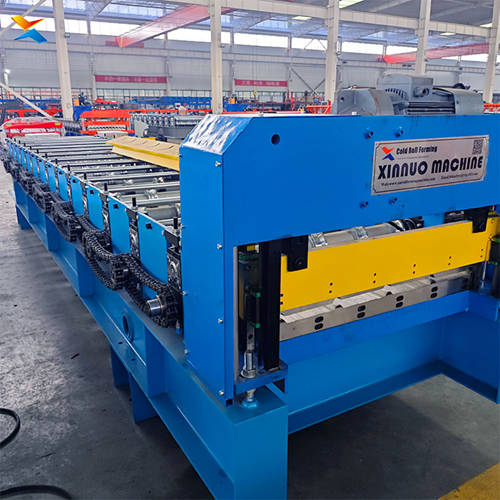

The High Precision Trapezoidal Sheet Cold Roll Forming Machine is a professional, fully automatic industrial equipment specifically developed for the continuous production of high-quality, high-precision trapezoidal metal sheets. Widely used as roof cladding, wall cladding, and building envelope materials in various construction projects, this machine integrates advanced cold roll forming technology, intelligent automatic control, and heavy-duty structural design. It is dedicated to solving the efficiency and quality problems of traditional trapezoidal sheet processing, realizing a one-stop automated workflow from raw material feeding to finished product output, and becoming an indispensable core equipment for manufacturers engaged in high-standard metal building material production.
Tailored for the characteristics of high-precision trapezoidal metal sheets—requiring ultra-high dimensional accuracy, stable structural performance, and adaptability to diverse high-standard construction scenarios—this forming machine adopts a heavy-duty welded steel frame structure. Undergoing precision machining, heat treatment, and stress relief processes, the frame maximizes structural rigidity and stability, laying a solid foundation for high-precision forming. The integral frame design effectively avoids vibration, deformation, and displacement during long-term high-load continuous operation, ensuring the machine’s stable performance even in harsh industrial workshops or outdoor operation environments, and extending its service life to meet the long-term production needs of enterprises. The machine’s base is equipped with shock-absorbing pads, which further reduces vibration impact, avoids interference with precision forming, protects the workshop ground, and improves the overall operation stability.
The core highlight of this machine lies in its high-precision forming system, which is equipped with multi-station precision forming rollers. Made of high-quality alloy steel through chrome plating, polishing, and other advanced surface treatment processes, the rollers feature extremely high dimensional accuracy and smoothness. This not only enhances the rollers’ wear resistance and corrosion resistance but also ensures that during the forming process, the metal coil is evenly stressed and gently shaped, without scratching or damaging the surface of the metal material. Whether processing galvanized steel coils, color-coated steel coils, aluminum coils, or other common building metal materials, the finished trapezoidal sheets have neat lines, uniform rib height, flat surface, and strong three-dimensional sense. The dimensional error of the finished products is strictly controlled, perfectly meeting the high-standard requirements of high-end building cladding in terms of appearance, structural performance, and installation accuracy. The trapezoidal structure of the finished sheets is scientifically designed to enhance structural stability and water flow guidance (for roof applications), effectively preventing rainwater accumulation and leakage, and adapting to various roof slopes and outdoor environments.
The machine is equipped with an intelligent fully automatic control system, featuring a high-performance PLC controller and a user-friendly touch-screen operation interface, which simplifies the operation process and reduces the threshold for operator training. Operators only need to set key parameters such as the length, width, and forming speed of the trapezoidal sheets on the touch screen, and the machine can automatically complete the entire production process—including coil uncoiling, material leveling, continuous cold roll forming, fixed-length positioning, hydraulic cutting, and finished product stacking—without manual intervention. The control system supports high-precision parameter adjustment and storage, which is convenient for batch production of different specifications of high-precision trapezoidal sheets, greatly improving production flexibility and adaptability. In addition, the system is equipped with a complete fault alarm and self-diagnosis function, which can promptly detect and display faults such as material jamming, insufficient hydraulic pressure, abnormal roller operation, and power failure, facilitating operators to quickly locate and solve problems, reducing downtime, and ensuring continuous and stable production of high-precision products.
In terms of cutting performance, the machine adopts a high-efficiency hydraulic cutting system, equipped with high-hardness mold steel blades that have undergone special heat treatment. This ensures clean, smooth, and burr-free cutting of the trapezoidal sheets, avoiding dimensional errors caused by uneven cutting and ensuring the high precision of the finished products. The cutting speed is perfectly synchronized with the forming speed, realizing non-stop continuous cutting, which maximizes production efficiency and avoids material waste caused by intermittent cutting. The cutting length can be freely adjusted within a certain range with high precision, meeting the diverse size requirements of different high-standard construction projects, such as high-end industrial plants, modern warehouses, logistics centers, gymnasiums, commercial buildings, and high-end residential communities. The cutting part is equipped with a protective device to prevent metal scraps from splashing, ensuring the safety of operators and the cleanliness of the production environment.
With strong material compatibility, the High Precision Trapezoidal Sheet Cold Roll Forming Machine is suitable for processing various common building metal materials with different thicknesses, which can meet the diverse needs of different high-standard construction projects for material performance. The finished high-precision trapezoidal sheets produced by the machine have excellent comprehensive performance: high structural strength, good compression resistance, wind resistance, and weather resistance, able to withstand harsh outdoor environments such as strong wind, heavy rain, high temperature, and low temperature; the surface of the sheets is smooth and flat, not easy to fade, peel, or rust, ensuring long-term durability and aesthetics; at the same time, the sheets are light in weight, easy to transport and install, which can greatly improve construction efficiency and reduce construction costs, while ensuring the installation accuracy of the entire building envelope system.
The machine also pays attention to humanized design and energy conservation and environmental protection. The whole machine adopts a closed protective cover, which not only prevents dust, debris, and other impurities from entering the internal components, protecting the precision parts of the machine and extending its service life, but also effectively reduces noise pollution during operation, creating a comfortable and safe working environment for operators. The motor and hydraulic system of the machine adopt energy-saving designs, which can effectively reduce energy consumption while ensuring production efficiency and high precision, helping enterprises reduce operating costs and achieve green and energy-saving production.
Widely used in high-end steel structure construction, prefabricated buildings, high-standard industrial and civil building projects, the High Precision Trapezoidal Sheet Cold Roll Forming Machine is a reliable, efficient, and cost-effective processing solution for high-precision trapezoidal metal sheet production. It not only solves the problems of low efficiency, poor product consistency, high labor intensity, and high material waste of traditional manual and semi-automatic processing but also focuses on improving the precision and quality of finished products, helping enterprises improve product competitiveness, enter high-end markets, and realize large-scale, standardized, and automated production of high-precision trapezoidal metal sheets.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
