Customizable Trapezoidal Profile Machine | 840/850 Type Metal Roofing Sheet Roll Former

Short Description:

The Customizable Trapezoidal Profile Machine, specifically engineered for the highly popular 840 and 850 type metal roofing sheets, is a versatile and adaptable roll forming system designed to meet diverse architectural and structural demands. The 840/850 profiles are globally recognized for their excellent load-bearing capacity, aesthetic appeal, and cost-effectiveness. This advanced roll former allows manufacturers to easily customize panel dimensions, rib heights, and spacing within the 840/850 family. By combining a flexible mechanical architecture with intelligent PLC control, this customizable metal roofing sheet roll former empowers fabricators to seamlessly switch between variations of these profiles, making it an indispensable asset for responding to varied market requirements and bespoke construction projects.


Product Detail

configuration

COMPANY PROFILE:

Advantage of Roll Forming Machine: Efficiency, Precision, and Superior ROI

what is metal roll forming?

Product Tags

Product Overview

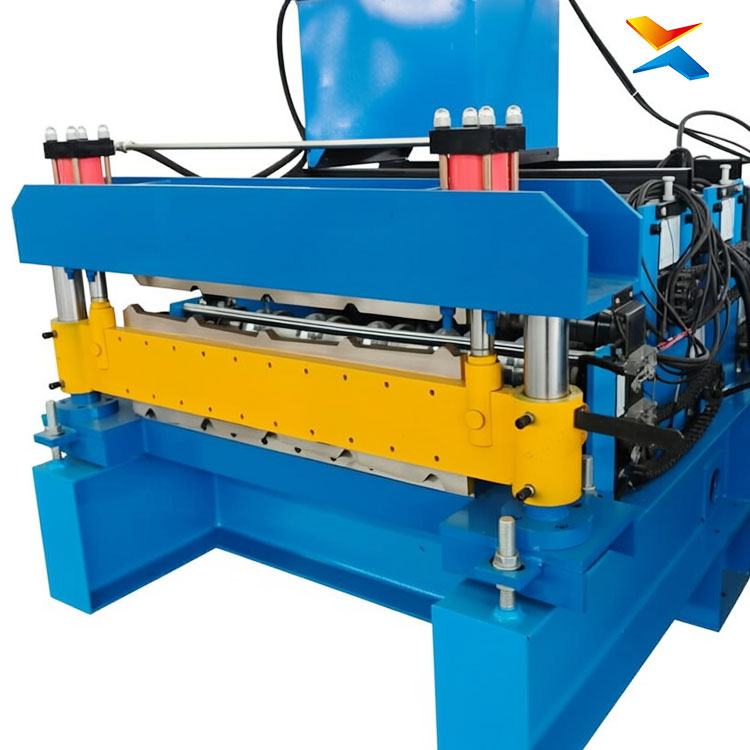

The Customizable Trapezoidal Profile Machine, specifically engineered for the highly popular 840 and 850 type metal roofing sheets, is a versatile and adaptable roll forming system designed to meet diverse architectural and structural demands. The 840/850 profiles are globally recognized for their excellent load-bearing capacity, aesthetic appeal, and cost-effectiveness. This advanced roll former allows manufacturers to easily customize panel dimensions, rib heights, and spacing within the 840/850 family. By combining a flexible mechanical architecture with intelligent PLC control, this customizable metal roofing sheet roll former empowers fabricators to seamlessly switch between variations of these profiles, making it an indispensable asset for responding to varied market requirements and bespoke construction projects.

Key Features & Advantages
  • High Customizability & Profile Flexibility: Engineered with an adjustable forming station design, this machine allows for precise modifications to accommodate various 840 and 850 profile variations. Operators can easily adjust rib dimensions, panel width, and pitch, enabling the production of customized panels tailored to specific architectural designs or structural engineering requirements.

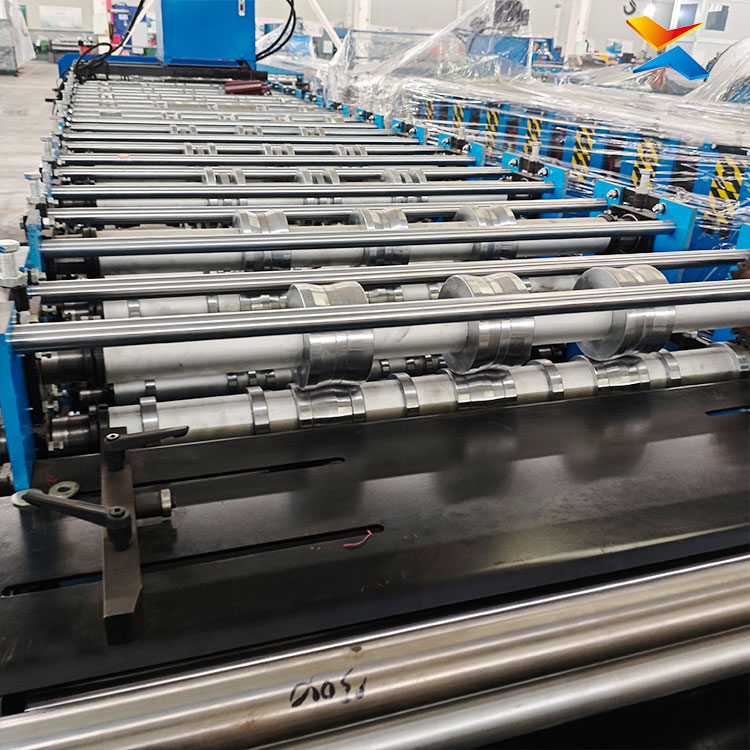

  • Precision Roll Forming Technology: The machine features meticulously calibrated, heavy-duty forming rollers crafted from premium-grade tool steel. These stations are engineered to execute exact 840/850 bends with crisp, uniform ribs, guaranteeing perfect interlocking capabilities, superior structural strength, and exceptional water-shedding performance.
  • Intelligent PLC Automation & Quick Recipe Switching: Governed by an advanced PLC control system and a user-friendly touchscreen HMI, the machine allows for seamless operation and rapid customization. Operators can effortlessly store, recall, and adjust parameters for different 840/850 variations, significantly reducing changeover downtime and human error.
  • Continuous High-Speed Automatic Cutting: Equipped with a high-performance hydraulic flying shear system, the machine dynamically tracks the moving panel to execute clean, burr-free cuts at exact lengths without stopping the production line. This continuous cutting technology maximizes throughput while maintaining strict dimensional tolerances.
  • Surface Protection & Material Compatibility: Specifically optimized for processing PPGI, GI, and aluminum coils, the machine’s smooth, hard-chromed rollers and precision guide systems prevent scratching, peeling, or deformation of protective coatings. This ensures the final panels maintain their aesthetic appeal and corrosion resistance.

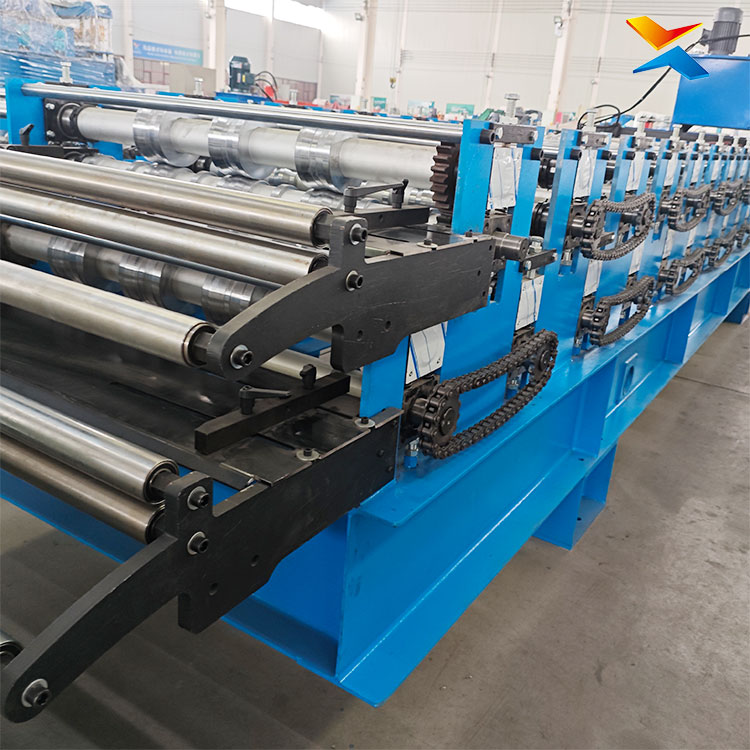

  • Robust & Stable Structural Frame: Built with a reinforced, stress-relieved steel chassis, the machine absorbs high forming forces and vibrations without mechanical deflection. This robust architecture guarantees stable, continuous operation and consistent panel quality even during prolonged, high-speed manufacturing.
Typical Applications
The highly customizable 840/850 trapezoidal panels produced by this machine are widely utilized across a broad spectrum of construction and architectural sectors, including:
  • Industrial & Warehouse Construction: Manufacturing durable, weather-resistant roofing and wall cladding for large-span factories, logistics centers, and storage facilities.
  • Commercial & Public Buildings: Producing aesthetically pleasing, high-strength exterior facades and roofing for shopping malls, exhibition halls, sports arenas, and airports.
  • Residential & Modern Housing: Creating sleek, modern metal roofing and siding for residential homes, villas, and prefabricated modular buildings.
  • Agricultural & Rural Structures: Providing reliable, long-lasting roofing solutions for greenhouses, poultry farms, and agricultural equipment storage.
Why Choose This Machine?
The Customizable Trapezoidal Profile Machine (840/850 Type) is specifically designed for forward-thinking manufacturers who demand versatility and market agility. By leveraging adjustable forming technology and advanced automation, it empowers fabricators to consistently produce structurally superior, visually flawless metal panels while catering to bespoke client specifications. Investing in this machine allows businesses to significantly reduce the need for multiple single-profile machines, lower operational costs, and build a dominant, highly adaptable reputation in the competitive metal building materials market, ultimately driving long-term profitability and growth.
白底图 5 4
