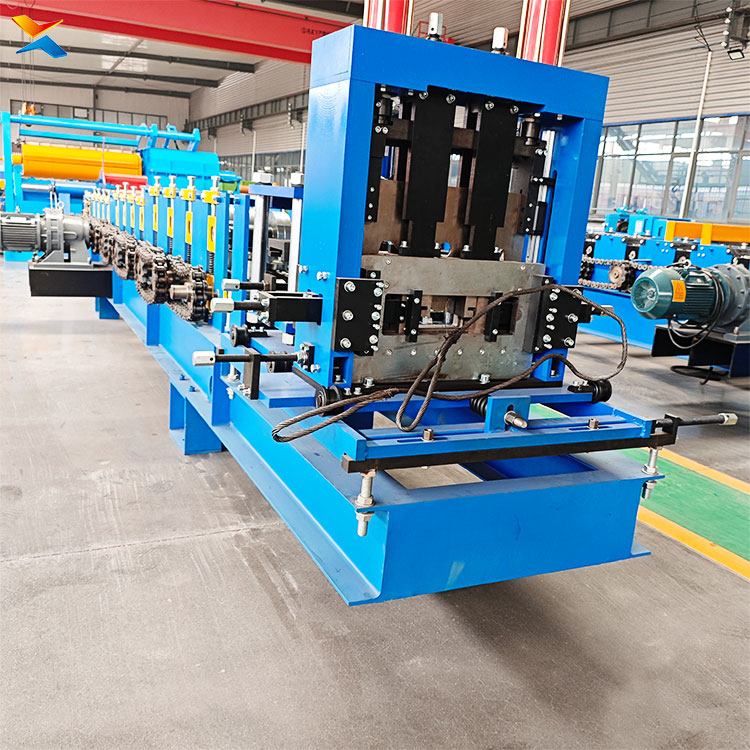

C Purlin Contour Forming Machine Product Description
The C Purlin Contour Forming Machine is a high-efficiency, precision-oriented roll forming equipment specifically designed for the contour forming of C-shaped steel purlins. Widely applied in industrial workshops, large warehouses, steel structure projects, and prefabricated building scenarios, this equipment integrates advanced contour forming technology, intelligent control, and stable operation, ensuring consistent product contour, high production efficiency, and perfect adaptability to C purlin contour forming requirements in various construction and industrial scenarios.
Equipped with a high-performance motor and precision gearbox, the C Purlin Contour Forming Machine features smooth transmission, strong load-bearing capacity, and excellent stability, which effectively reduces operational costs while ensuring efficient and precise contour forming of C-shaped steel purlins. The equipment adopts a specialized multi-station contour roll forming structure, tailored to the characteristics of C purlin contours (precise shape, uniform cross-section, and stable load-bearing performance), with each forming station precision machined from high-quality alloy steel and scientifically adjusted to avoid material deformation or contour deviation during the forming process. It ensures that the produced C purlins have accurate contour, uniform cross-section, smooth surface, no wrinkles, and precise dimensions—strictly complying with international and industry standards for C steel purlin components.
The core advantage of this equipment lies in its exceptional contour forming precision, reliability, and efficient operation. It is specially optimized for steel coils suitable for C purlin production (with thickness ranging from medium to thick, meeting purlin load-bearing requirements), ensuring smooth feeding, stable contour forming, and no material waste. The equipment can be flexibly adjusted according to different contour specifications of C purlins (such as different widths, heights, thicknesses, and contour curves), without the need for frequent mold replacement, greatly reducing production preparation time and labor costs, and improving production efficiency for various C purlin manufacturing projects.
The feeding system of the C Purlin Contour Forming Machine is equipped with an industrial-grade high-efficiency leveling and guiding device, which can effectively correct the flatness of raw materials (steel coils), ensure stable and uniform feeding, and avoid defects such as surface scratches, edge warping, or contour deviation caused by uneven raw materials or feeding instability. This ensures the consistency and reliability of the final C purlin products, meeting the contour precision and installation requirements of industrial structures, large warehouses, and prefabricated buildings.
In terms of operation, the C Purlin Contour Forming Machine is equipped with an intelligent industrial control system, featuring a user-friendly touch screen interface that allows operators to easily set and adjust parameters (such as contour forming speed, cutting length, and quantity), monitor the contour forming process in real time, and quickly troubleshoot simple faults. The automatic cutting device adopts high-precision industrial hydraulic or mechanical cutting, suitable for purlin steel materials, ensuring clean cutting edges, no burrs, and accurate length control—critical for the assembly accuracy of C purlins with precise contours in industrial structures, warehouses, and prefabricated building projects.
Made of high-quality industrial steel and wear-resistant components, the equipment boasts excellent durability and long service life, reducing the frequency of maintenance and repair, and ensuring long-term stable operation under continuous industrial production conditions. It is also equipped with multiple industrial-grade safety protection devices (such as emergency stop buttons, reinforced protective covers, overload protection, and fault alarm) to ensure the safety of operators and the stable operation of the equipment during long-term continuous contour forming of C purlins.
The C-shaped steel purlins produced by this equipment are widely used as key load-bearing components in various industrial and construction scenarios, serving as roof purlins, wall beams, supporting brackets, and connecting parts in industrial workshops, large warehouses, steel structure buildings, and prefabricated buildings. They have the characteristics of precise contour, high strength, strong load-bearing capacity, wear resistance, corrosion resistance, and stable performance, which can effectively enhance the structural stability and service life of buildings and industrial facilities, lower long-term maintenance costs, and improve the safety and efficiency of construction and production sites.
Whether for large-scale mass production of standard contour C purlins or small-batch production of special-specification C purlins with customized contours tailored to project requirements, the C Purlin Contour Forming Machine can perfectly meet the production needs of customers. We provide professional technical support, including pre-sales contour specification consultation, equipment debugging, and after-sales maintenance, to help customers improve production efficiency, reduce production costs, and achieve stable and efficient contour forming of C purlins.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
