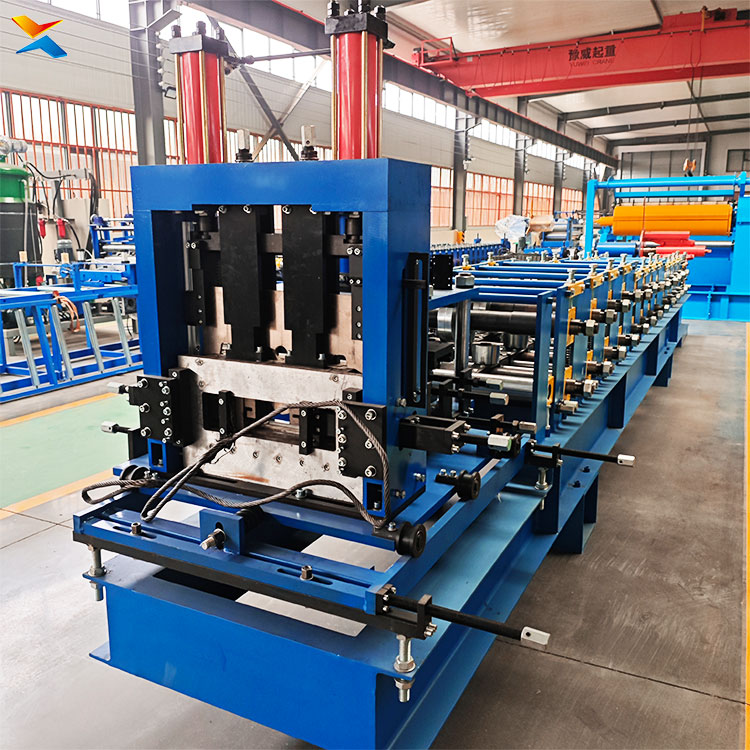

Precision C Profile Machine Product Description
The Precision C Profile Machine is a high-precision, high-efficiency roll forming equipment specifically designed for the production of high-precision C-shaped steel profiles. Widely applied in the steel structure, mechanical manufacturing, precision engineering, and prefabricated building industries, this machine integrates advanced precision forming technology, intelligent control, and stable operation, ensuring ultra-high consistency, dimensional accuracy, and production efficiency for various high-precision C-profile application scenarios.
Equipped with a high-performance servo motor and precision planetary gearbox, the Precision C Profile Machine features ultra-smooth transmission, low noise, and strong load-bearing capacity, which effectively reduces energy consumption while maximizing the stability and precision of the forming process. The machine adopts a high-precision multi-station roll forming structure, with each forming station processed by precision CNC equipment, strictly controlled in dimensional tolerance, and equipped with adjustable positioning devices, ensuring that the C-profiles produced have uniform cross-section, smooth surface, no deformation, and ultra-accurate dimensions—strictly complying with international and industry high-precision steel component standards.
The core advantage of this machine lies in its excellent precision control capability and stable performance. It is equipped with a high-precision displacement sensor and real-time monitoring system, which can dynamically detect and adjust the forming parameters during the production process, effectively avoiding dimensional deviations caused by equipment wear, material changes, or environmental factors. The machine can be flexibly adjusted according to different specifications of high-precision C-profiles (such as different widths, heights, and thicknesses), with precise parameter adjustment functions, reducing the error range to the minimum and ensuring the consistency of each batch of products.
The feeding system of the Precision C Profile Machine is equipped with a high-precision leveling, guiding, and tension control device, which can effectively correct the flatness of raw materials (high-quality steel coils or steel plates), ensure stable and uniform feeding, and avoid defects such as surface scratches, edge warping, or dimensional deviation caused by uneven raw materials or feeding instability, thus guaranteeing the high precision and reliability of the final C-profile products.
In terms of operation, the Precision C Profile Machine is equipped with an intelligent precision control system, featuring a user-friendly touch screen interface that allows operators to easily set and adjust precision parameters (such as forming speed, cutting length, dimensional tolerance, and forming pressure), monitor the production process and dimensional accuracy in real time, and quickly troubleshoot simple faults. The automatic cutting device adopts high-precision servo cutting technology, ensuring clean cutting edges, no burrs, and ultra-accurate length control—critical for the assembly accuracy of high-precision C-profiles in precision mechanical equipment, high-end steel structures, and precision engineering projects.
Made of high-quality alloy steel and wear-resistant precision components, the machine has excellent durability and long service life, reducing the frequency of maintenance and repair, and ensuring long-term stable precision operation. It is also equipped with multiple safety protection devices (such as emergency stop buttons, protective covers, overload protection, and precision deviation alarm) to ensure the safety of operators and the stable operation of the machine during long-term continuous high-precision production.
The high-precision C-shaped steel profiles produced by this machine are widely used as key components in various high-precision fields, serving as precision brackets, guide rails, structural beams, and connecting parts in precision mechanical equipment, high-end steel structure buildings, precision engineering, and prefabricated high-end buildings. They have the characteristics of light weight, high strength, excellent dimensional accuracy, and easy assembly, which can effectively meet the high-precision design requirements of customers, improve the overall performance and stability of equipment or structures, and reduce assembly errors and maintenance costs.
Whether for large-scale mass production of high-precision standard C-profiles or small-batch production of high-precision special-specification C-profiles, the Precision C Profile Machine can perfectly meet the high-precision production needs of customers. We provide professional technical support, including pre-sales precision parameter consultation, equipment debugging, and after-sales maintenance, to help customers improve production efficiency, ensure product precision, and achieve stable and efficient high-precision C-profile production.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
