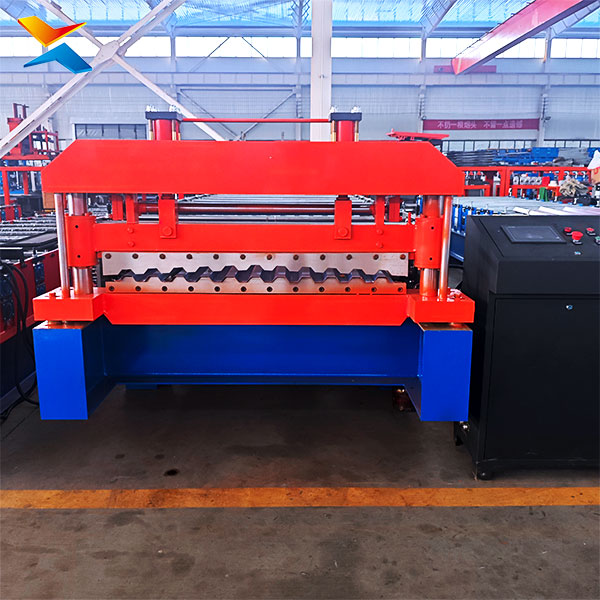

High Efficiency Trapezoidal Roll Forming Machine Product Description
The High Efficiency Trapezoidal Roll Forming Machine is a professional cold roll forming equipment engineered for high-speed, stable production of high-precision trapezoidal metal panels. Designed to maximize production efficiency while ensuring consistent product quality, this machine integrates full-automatic feeding, precision roll forming, rapid cutting, and orderly stacking into a seamless production process, reducing manual intervention to the minimum and achieving a production efficiency 30%-70% higher than that of conventional trapezoidal roll forming machines. It is widely used in the metal forming and construction industries, suitable for mass production of trapezoidal roof panels, wall cladding, and structural components for industrial warehouses, residential buildings, transportation infrastructure, and renewable energy projects.
Efficiency is the core advantage of this machine, supported by advanced hardware and intelligent control systems. Equipped with a high-performance PLC control system and a user-friendly touchscreen interface, it enables one-click parameter setting, including panel length, forming speed, trapezoidal rib height, and cutting precision. The system can store up to 80 sets of production recipes, allowing quick switching between different panel specifications without time-consuming reconfiguration, greatly reducing downtime and improving overall production continuity. Combined with high-power servo motors and precision hydraulic cutting components, the machine achieves a stable forming speed of 20-80 m/min (adjustable according to material thickness and panel specification), with an output capacity of 400-800 ㎡/h—far exceeding the efficiency of traditional models.
While pursuing high efficiency, the machine does not compromise on product quality and structural stability. Its frame is made of high-strength H-beam welded steel,经过 tempering and aging treatment to eliminate internal stress, ensuring no deformation during long-term high-speed operation. The core forming rollers are precision-machined from 45# steel with chrome plating and heat treatment, featuring excellent wear resistance and smooth surface, which not only guarantees stable trapezoidal profile forming but also avoids scratches on the metal surface. The forming section is equipped with 14-26 sequential roller stations (adjustable according to profile complexity), adopting incremental cold forming technology to gradually bend metal coils into standard trapezoidal shapes, effectively preserving the mechanical properties of the base material and ensuring the finished panels have strong rigidity, excellent water drainage, and reliable overlap performance.
This high-efficiency machine supports a wide range of metal materials, including color-coated steel (PPGI/PPGL) coils, galvanized steel coils, aluminum alloy coils, and plain steel coils, with a material thickness range of 0.3-2.5mm. The customizable panel width ranges from 300-1300mm, and the trapezoidal rib height can be adjusted between 15-90mm, meeting diverse application needs of different construction projects. It is specially designed with an automatic tension control system and a deviation correction device, which can real-time adjust the feeding tension and correct coil deviation, ensuring uniform feeding and consistent forming quality, even during high-speed continuous production.
In terms of operation safety and convenience, the machine is equipped with full-length safety guards, emergency stop switches, and automatic fault alarm functions, effectively preventing operational accidents and ensuring safe production. Its low-noise design (below 75 db) creates a comfortable working environment, while the modular structure facilitates daily maintenance and spare parts replacement, reducing maintenance time and costs. Additionally, the machine complies with ISO and CE certifications, comes with a 12-month warranty, and provides global on-site installation, professional technical training, and 24/7 remote troubleshooting support, ensuring smooth operation of the production line.
The High Efficiency Trapezoidal Roll Forming Machine is an ideal choice for enterprises pursuing high productivity, high quality, and cost optimization. Its perfect combination of high efficiency, precision, and durability helps enterprises reduce labor costs, shorten production cycles, and enhance market competitiveness. Whether for large-scale manufacturing plants or medium-sized workshops, this machine provides a cost-effective, high-performance solution for trapezoidal metal panel production, becoming an indispensable core equipment in the modern metal forming industry.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
