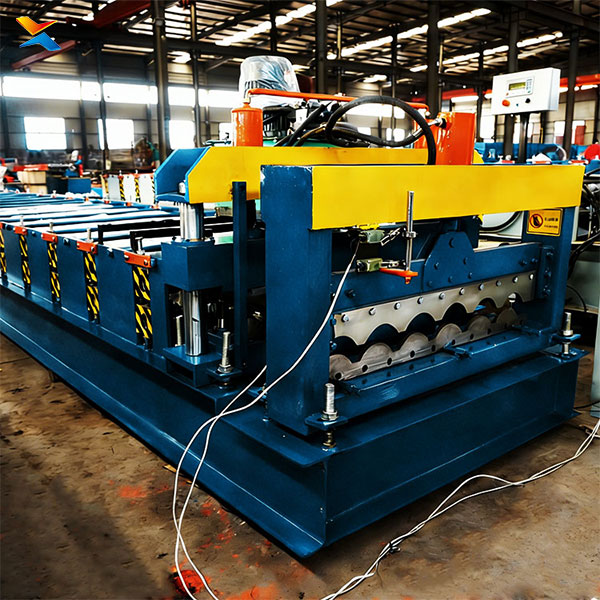

XinNuo Glazed Tile Roll Forming Machine – Detailed Specifications
Product Type: CNC Automatic Glazed Tile Roll Forming Machine
Core Advantages
-
High Precision Forming
Adopts advanced PLC control system with touch screen operation interface, realizing intelligent parameter setting and real-time production monitoring. The forming accuracy is controlled within ±0.5mm, ensuring consistent tile size and perfect surface finish, meeting high-standard construction requirements.
-
Durable Key Components
- Wear-Resistant Tile Boxes: Made of high-quality alloy steel, through quenching and tempering treatment, the hardness reaches HRC58-62. Effectively resist wear and tear during long-term operation, service life increased by 30% compared with ordinary tile boxes.
- High-Strength Pull Rods: Integrated forging process, tensile strength up to 800MPa, no deformation under heavy load operation, ensuring stable equipment structure and reducing maintenance frequency.
-
Efficient Production Capacity
Realizes one-time forming of glazed tiles from coil feeding, leveling, forming to cutting, without secondary processing. The production speed can reach 8-12m/min, greatly improving production efficiency and reducing labor costs. It supports continuous 24-hour operation, suitable for large-scale batch production.
-
Wide Material Compatibility
Applicable to color steel plate, galvanized steel plate, aluminum-magnesium-manganese plate and other metal sheets with thickness of 0.3-0.8mm. It can process various specifications of glazed tiles (customizable according to customer requirements), adapting to different architectural styles such as industrial workshops, civil residences and antique buildings.
-
Energy-Saving & Eco-Friendly Design
Equipped with frequency conversion speed regulation system, which can adjust the production speed according to actual needs, saving 15% of power consumption compared with traditional equipment. The whole machine adopts closed dust-proof design, reducing noise and dust pollution, in line with international environmental protection standards.
After-Sales Service
- Installation & Commissioning: Provide on-site installation and commissioning services, train operators to master equipment operation and daily maintenance skills.
- Warranty Period: 12 months warranty for the whole machine, lifelong maintenance service.
- Spare Parts Supply: Supply original spare parts for a long time at preferential price, ensuring timely replacement and reducing downtime.
Application Scenarios
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
