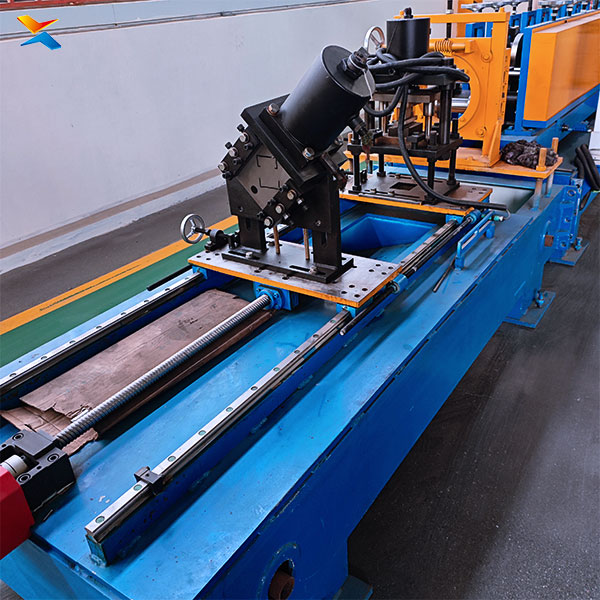

Our keel machine is a high-end professional cold roll forming equipment, specially developed to meet the mass production needs of building keels in the modern construction industry. As the core supporting equipment for building materials processing, it is mainly used to process metal coils (galvanized steel coils, stainless steel coils, aluminum coils, etc.) into various standard and customized keel profiles, which are widely used as the “skeleton” of ceilings, partition walls, prefabricated buildings, light steel villas, and commercial building decoration projects. Unlike traditional manual forming or semi-automatic equipment, this keel machine realizes fully automated production from raw material feeding to finished product output, which not only solves the problems of low efficiency, poor product consistency, and high labor costs in traditional processing, but also ensures the high precision and stable quality of each finished keel.

The machine adopts advanced cold roll forming technology, which does not require high-temperature heating during the processing process, thus avoiding thermal deformation of the metal material, retaining the original surface coating and structural strength of the raw material, and ensuring that the processed keel has a smooth surface, no burrs, and uniform cross-sectional shape. The whole production line is equipped with a high-precision guiding and leveling system, which can effectively correct the deviation of the metal coil, ensuring that the forming process is stable and the dimensional error of the keel is controlled within ±0.5mm. The fixed-length cutting system adopts servo motor control, which can realize accurate cutting according to the set length (adjustable from 0.5m to 6m), with a cutting error of less than ±0.2mm, fully meeting the strict requirements of building engineering for keel dimensions.

In terms of structure design, the main frame of the keel machine is made of high-quality thickened square steel through integral welding and stress relief treatment, which has strong stability and load-bearing capacity, and can withstand long-term high-intensity continuous production without deformation. The forming rollers are made of GCR15 high-carbon chromium bearing steel, which is processed by quenching and tempering, with a hardness of HRC60-62, strong wear resistance and corrosion resistance, and a service life of more than 10 years. The transmission system adopts a high-precision gearbox, which ensures stable power transmission, low noise, and low failure rate. The operation interface adopts a 7-inch touch screen, which is simple and intuitive, and operators can complete parameter setting, start and stop control, and fault query with one key, and can master the operation skills after simple training.

This keel machine is highly versatile and can produce various types of keels by replacing different molds, including C-type, U-type, T-type, L-type, omega-type, and furring channel keels, which can be widely used in different construction scenarios. At the same time, we provide personalized customization services according to customer needs, which can adjust the thickness (0.2mm-2.0mm), width (50mm-200mm), cross-sectional shape, and processing speed (15-50m/min) of the keel to meet the specific requirements of different markets and projects. In addition, the machine is equipped with complete safety protection devices, including emergency stop buttons, protective covers, and overload protection, which can automatically shut down and alarm in case of abnormal operation, ensuring the personal safety of operators. It is an ideal production equipment for building material manufacturers, prefabricated house factories, and large-scale construction enterprises.

Designed for long-term stable operation and green production, our keel machine is a professional cold forming equipment integrating durability, energy conservation, and high efficiency, which is widely used in the processing and production of building keels in construction, building materials, and prefabricated construction industries. The keel processed by this machine is an essential structural component in modern buildings, which plays a supporting and fixing role in ceilings, partition walls, and prefabricated building frames, and its quality directly affects the safety and service life of the building. Therefore, we adhere to the concept of “quality first” in the design and production of the keel machine, and strictly control every link from material selection to processing to ensure that the equipment has excellent performance and long service life.

In terms of material selection, the keel machine adopts high-quality components to ensure its durability. The main frame is made of Q235B square steel, which is thickened and reinforced, with strong impact resistance and load-bearing capacity, and can adapt to the harsh working environment of long-term continuous production. The forming rollers are made of high-quality alloy steel, which is processed by precision grinding and quenching, with high hardness, wear resistance, and corrosion resistance, and can effectively avoid roller wear and deformation caused by long-term contact with metal coils. The motor and reducer adopt well-known brand products, which have stable performance, low energy consumption, and long service life, and can provide strong power support for the operation of the machine.

In terms of energy conservation and environmental protection, this keel machine has obvious advantages compared with traditional equipment. It adopts an advanced servo drive system, which can adjust the output power according to the actual processing needs, avoiding the energy waste caused by the constant speed operation of traditional motors, and saving 30%-40% of energy. At the same time, the machine adopts a fixed-length cutting design, which can fully utilize the metal coil, with a material utilization rate of up to 99% or more, almost no leftover materials, reducing resource waste and construction waste, and conforming to the national green production policy. In addition, the machine is equipped with a silent design, which reduces the noise generated during operation to below 75 decibels, creating a comfortable working environment for operators.

The keel machine is easy to maintain and has a low failure rate. It is equipped with a fault self-diagnosis system, which can quickly locate the fault point and display the fault information on the touch screen, facilitating operators to carry out maintenance and repair. The key components (motor, reducer, rollers, etc.) of the machine enjoy a 1-year warranty, and we provide lifelong technical support and spare parts supply services to ensure that customers can use the equipment without worry. The machine is suitable for mass production of keels, with a forming speed of 15-50m/min, which can greatly improve production efficiency and reduce labor costs. It can process various metal materials, including galvanized steel, stainless steel, aluminum, etc., and can produce keels of different specifications and types by replacing molds, which is widely applicable to residential buildings, commercial buildings, prefabricated houses, and other construction projects.

As a multi-functional and customizable cold roll forming equipment, our keel machine is designed to meet the diverse needs of the construction industry for keel specifications and types, and is widely used in building decoration, prefabricated construction, building materials manufacturing, and other fields. It can process metal coils into various types of keels with high efficiency and high precision, providing a one-stop production solution for customers, and helping customers reduce production costs and improve market competitiveness.

The biggest advantage of this keel machine is its strong versatility and flexible customization capabilities. It is equipped with a detachable mold system, which allows quick mold replacement (usually within 30 minutes) without disassembling the whole machine, thus realizing the production of different types of keels, including C-type, U-type, T-type, L-type, omega-type, furring channel, and other common keel types. The mold is made of high-quality alloy steel, which is precision processed and has a long service life, ensuring that the processed keel has a uniform cross-section and accurate dimensions. At the same time, we can customize molds according to customer needs, adjust the cross-sectional shape, size, and structure of the keel, and even develop special keels for special construction projects, fully meeting the personalized needs of customers.

In terms of processing performance, the keel machine adopts advanced multi-pass progressive cold forming technology, which can gradually form the metal coil into the required keel shape through multiple passes of rolling, ensuring that the keel has strong rigidity and load-bearing capacity, and can withstand the weight of ceilings, partition walls, and other components. The processing thickness of the machine can be adjusted from 0.2mm to 2.0mm, and the processing width can be adjusted from 50mm to 200mm, which can adapt to different thicknesses and widths of metal coils. The whole production process is fully automated, from uncoiling, guiding and leveling, forming, fixed-length cutting to finished product receiving, which can be completed in one line, without manual intervention, greatly improving production efficiency and product consistency.

The keel machine is equipped with a high-performance PLC control system, which can accurately control the forming speed, cutting length, and processing quantity, and can store multiple sets of parameter programs, which is convenient for customers to switch between different keel types quickly. The operation interface is simple and easy to understand, with Chinese and English bilingual display, which is suitable for operators of different countries and regions. The machine is also equipped with a variety of safety protection devices, including emergency stop buttons, protective covers, and photoelectric protection, which can effectively prevent safety accidents. In addition, the machine has a compact structure, small floor area, and easy installation and transportation, which is suitable for both large-scale factories and on-site processing of construction projects. Whether you are a small and medium-sized processing factory or a large-scale building material enterprise, this keel machine can provide you with a flexible, efficient, and cost-effective production solution.
