Trapezoidal Plate Roll Forming Machine Product Description
Our Trapezoidal Plate Roll Forming Machine is a high-efficiency, precision-engineered automatic equipment, specifically designed for the high-speed cold roll forming of trapezoidal plates, trapezoidal roof panels and various PPGI (Pre-Painted Galvanized Iron) sheet products. Widely applied in industrial, commercial, and residential building projects, it integrates automatic high-speed cold roll forming, precision cutting, and shaping functions into one.
With advanced automation, high-speed transmission technology and professional cold roll forming technology, it not only significantly improves production efficiency (far exceeding ordinary forming machines) but also ensures the consistency, flatness, and high quality of finished trapezoidal plates, PPGI sheets and roof panels, perfectly meeting the large-scale production needs of enterprises.
Crafted with high-quality steel and precision components, the machine boasts excellent durability and wear resistance, capable of withstanding long-term continuous high-speed automatic operation in harsh working environments. The reinforced, anti-deformation frame ensures stable performance during the high-speed cold roll forming process, avoiding deviations in trapezoidal plate and PPGI sheet size and ensuring dimensional accuracy.
Its surface is treated with professional anti-rust and anti-corrosion technology, effectively extending service life and reducing daily maintenance costs—perfectly matching the corrosion-resistant characteristics of PPGI materials and adapting to long-term high-load operation.
Equipped with an intelligent automatic control system and a user-friendly touch screen operation interface, the machine is easy to operate and adjust, minimizing manual intervention. It supports flexible adjustment of trapezoidal plate size, PPGI sheet thickness, width, and trapezoidal dimensions, specially optimized for PPGI sheets (pre-painted galvanized iron), while also compatible with other metal materials such as galvanized steel plates and aluminum plates—fully meeting diverse construction and processing needs.
The cold roll forming rollers are processed by precision grinding, ensuring the smoothness and flatness of the trapezoidal plate and PPGI sheet surface, protecting the paint layer from damage during high-speed forming, and maintaining clear trapezoidal lines and consistent specifications for every finished product.

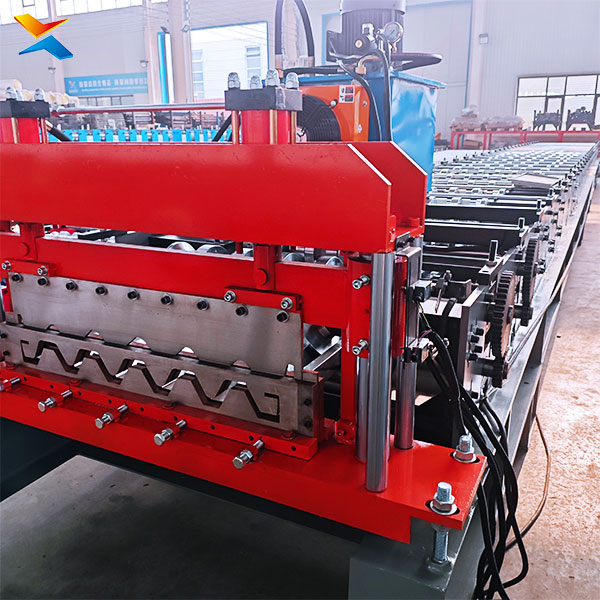

With outstanding high-speed automatic production efficiency, the machine completes cold roll forming and cutting of trapezoidal plates, PPGI sheets and trapezoidal roof panels in one automatic step, greatly reducing manual operation and significantly improving production capacity. It is equipped with a high-precision automatic cutting device, which cuts trapezoidal plates and PPGI sheets according to preset lengths with accurate dimensions and no burrs, avoiding paint peeling and reducing subsequent processing procedures.
The stable, smooth automatic feeding system avoids material jamming and paint scratches, ensuring continuous and uninterrupted high-speed production, and effectively reducing production downtime.
Safety is a top priority in our design. The Trapezoidal Plate Roll Forming Machine is equipped with multiple safety protection devices, including emergency stop buttons, protective covers, and overload protection, effectively preventing operational accidents and ensuring operator safety during high-speed operation. It also features an easy-maintenance structure, facilitating daily inspection, maintenance, and part replacement—reducing equipment downtime and improving production continuity.
We provide a variety of models and specifications to meet different high-speed production scales and trapezoidal plate, PPGI sheet cold roll forming requirements. We also offer customized services according to customers’ specific needs, such as adjusting forming molds to match different trapezoidal plate sizes and PPGI sheet thicknesses, optimizing high-speed transmission systems, and adding additional automatic functions.
Our machine complies with international quality standards, with reliable performance, energy-saving and environmental protection features, making it an ideal automatic high-speed equipment for trapezoidal plate processing, PPGI sheet processing enterprises, trapezoidal roof panel production factories, construction companies, and processing workshops that pursue high efficiency and high quality.
Whether you are engaged in large-scale industrial roof construction, mass production of trapezoidal plates and PPGI sheets, or large-batch residential roof renovation projects, our Trapezoidal Plate Roll Forming Machine provides efficient, stable, and high-quality automatic high-speed production solutions—helping you reduce production costs, improve work efficiency, and enhance market competitiveness.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
