Trapezoidal Single Board Computer Detailed Product Descriptions
Version 1: Concise Professional Edition (Suitable for Homepage & Short Details)
The Trapezoidal Single Board Computer (SBC) is a compact, high-performance embedded computing device, specially designed with a trapezoidal structure to adapt to limited installation spaces and harsh working environments. As an integrated solution, it combines core computing, I/O expansion and stable operation in one, making it an ideal choice for industrial control, IoT terminals and intelligent equipment applications.
Key Features:
- Innovative Trapezoidal Design: Space-saving, easy to install in narrow cabinets or special-shaped equipment, with enhanced structural stability and anti-vibration performance.
- Stable Core Performance: Equipped with a high-efficiency processor, matching DDR4 memory and expandable storage, ensuring smooth multi-task operation and fast data processing.
- User-Friendly Operation: Integrated PLC control system with a clear touch screen, supporting simple parameter setting and one-button operation, reducing operational difficulty.
- Wide Compatibility: Supports multiple operating systems (Linux, Windows 10) and various peripheral connections, adapting to different application scenarios.
Application Scenarios: Industrial control systems, intelligent building equipment, IoT monitoring terminals, embedded intelligent devices, etc. It provides reliable, cost-effective computing support for manufacturers and project integrators, helping to improve work efficiency and reduce operation costs.
Version 2: Foreign Trade Marketing Edition (Highlighting Advantages)
Our Trapezoidal Single Board Computer is a high-quality embedded solution tailored for global industrial and IoT markets, integrating advanced technology, robust performance and flexible expansion. With a focus on durability and practicality, it solves the pain points of traditional SBCs such as large size, poor stability and difficult installation, becoming a trusted partner for customers in various industries.
Core Advantages:
- Superior Structural Design: Trapezoidal profile not only saves installation space but also enhances heat dissipation and anti-interference ability, ensuring stable operation in high-temperature, high-vibration industrial environments (-40°C to +85°C operating temperature range).
- Powerful Performance Configuration: Optional high-performance quad-core processor, up to 16GB DDR4 memory and multiple storage options (eMMC, SATA, M.2 SSD), supporting complex algorithm operation and large data storage.
- Rich Expansion Interfaces: Equipped with multiple Ethernet ports, USB ports, serial ports, display interfaces and GPIO interfaces, supporting Wi-Fi/BT/4G/5G expansion, meeting diverse connection and communication needs.
- Cost-Effective & Durable: Adopting industrial-grade components, strict quality testing, long service life and low maintenance cost; supporting OEM/ODM customization to meet personalized project needs.
Widely used in industrial plants, warehouses, commercial buildings, outdoor monitoring and other scenarios, it is compatible with steel, aluminum and other material processing equipment, providing efficient and stable core computing support for global customers. We provide international certifications (CE, RoHS) and professional after-sales service, ensuring smooth cooperation and use.
Version 3: High-End Technology Edition (Suitable for Detailed Product Page)
The Trapezoidal Single Board Computer is a high-end embedded computing device integrating advanced technology and precision manufacturing, designed to meet the high requirements of modern intelligent equipment for computing performance, stability and expandability. It adopts international advanced production technology and strict quality control standards, becoming a core component for high-end industrial control and IoT applications.
Technical Parameters:
- Processor: Optional Intel® Elkhart Lake Atom® x6425E quad-core processor (1.8GHz, up to 3.0GHz turbo) or equivalent high-performance embedded processor.
- Memory: DDR4 2400MHz, up to 16GB (2 x SO-DIMM slots, support dual-channel).
- Storage: 64GB eMMC (built-in), 1 x SATA Gen 3 slot, 1 x M.2 M-Key slot (support NVMe SSD), supporting large-capacity storage expansion.
- I/O Interfaces: 2 x 10/100/1000Mbps Ethernet ports (RJ45), 1 x HDMI 2.0, 1 x LVDS, 1 x eDP, 4 x USB 3.0, 2 x USB 2.0, 4 x RS232/RS422/RS485 serial ports, 8 x GPIO interfaces.
- Wireless Expansion: 1 x M.2 E-Key slot, supporting Wi-Fi 6/BT 5.2, 4G/5G module expansion (optional).
- Operating System: Support Linux (Ubuntu, Debian), Windows 10 IoT Enterprise, Windows 11 IoT Enterprise.
- Environmental Adaptability: Operating temperature: -40°C to +85°C; Storage temperature: -55°C to +100°C; Relative humidity: 5%-95% (non-condensing); Vibration resistance: MIL-STD-202G, 10-500Hz, 1.5g.
- Certifications: CE, RoHS, FCC.
Product Features:
- Precision Manufacturing: Adopting high-precision PCB board and industrial-grade components, ensuring low power consumption, low noise and stable operation for 24/7 continuous work.
- Intelligent Control: Equipped with advanced PLC control system, supporting automatic fault self-diagnosis, remote monitoring and secondary development (SDK provided), facilitating customized function development.
- Efficient Heat Dissipation: Trapezoidal structure optimizes heat dissipation path, no need for additional cooling equipment, adapting to harsh working environments.
- Long-Term Reliability: Undergoes strict high-temperature, low-temperature, vibration and aging tests, with a service life of more than 5 years, reducing maintenance costs for customers.
Application Scenarios: High-end industrial control systems, intelligent manufacturing equipment, IoT terminal nodes, outdoor intelligent monitoring, medical equipment, transportation equipment and other fields. It provides high-speed, stable and reliable computing support for modern intelligent industries, helping customers improve product competitiveness and realize intelligent upgrading.
♦ COMPANY PROFILE:

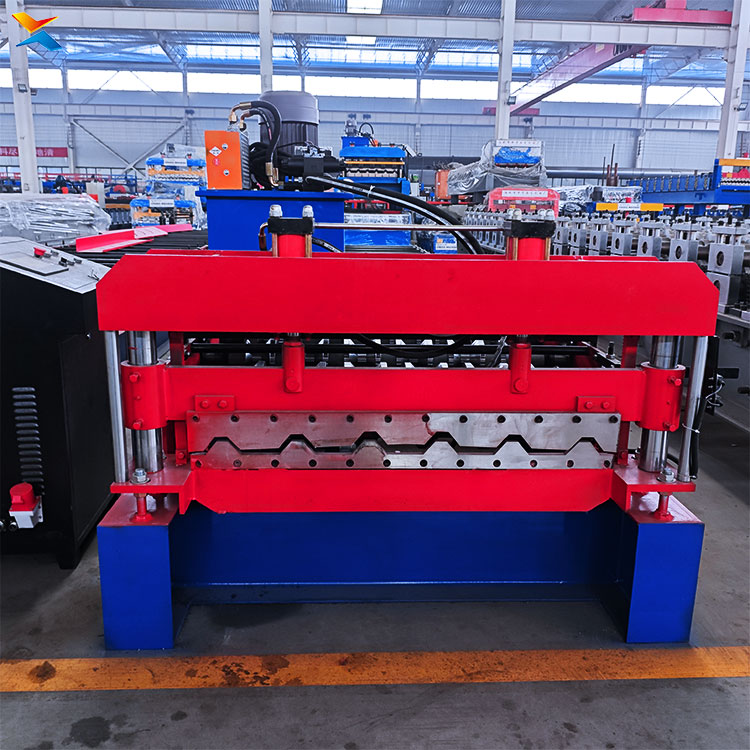

Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
