Corner Rib Panel Roll Forming Machine Detailed Description
1. Product Overview
The Corner Rib Panel Roll Forming Machine is a high-efficiency, automatic metal processing equipment specifically designed for producing corner rib panels (also known as standing seam roof panels or trapezoidal corner panels). It is widely applied in the manufacturing of metal roofing and wall cladding for industrial workshops, warehouses, steel structures, exhibition halls, cold storage facilities, and residential buildings. With advanced PLC control technology and precision mechanical design, this machine realizes full-automatic production from raw material feeding to finished product output, ensuring consistent product quality, high production efficiency, and low labor intensity.
Our corner rib forming machine is engineered to process various metal coils, including color-coated steel coils, galvanized steel coils, aluminum coils, and stainless steel coils, meeting the diverse needs of different construction projects. It adopts a modular design, which is convenient for maintenance, adjustment, and customization according to customer-specific profile specifications.
2. Core Technical Parameters
|
Parameter Name
|
Specification
|
|---|---|
|
Raw Material
|
Color steel coil, galvanized steel coil, aluminum coil, stainless steel coil
|
|
Material Thickness
|
0.3mm – 1.2mm (customizable according to requirements)
|
|
Coil Width
|
1000mm – 1250mm (adjustable)
|
|
Forming Speed
|
5m/min – 15m/min (stepless speed regulation)
|
|
Panel Profile
|
Corner rib panel, standing seam panel (customizable per drawing)
|
|
Cutting Method
|
Hydraulic cutting / Mechanical cutting (optional)
|
|
Control System
|
PLC control with touch screen, automatic counting and length setting
|
|
Power Supply
|
380V/50Hz, 3-phase (customizable for 220V/60Hz)
|
|
Total Power
|
7.5KW – 15KW (depending on model)
|
|
Machine Weight
|
2500kg – 5000kg (varies by specifications)
|
|
Machine Dimension
|
6000mm×1200mm×1500mm – 10000mm×1500mm×1800mm (L×W×H)
|
3. Main Structure & Components
The machine is composed of 7 core components, each with strict quality control to ensure stable operation and long service life:
3.1 Uncoiler
Equipped with a hydraulic expansion uncoiler, with a maximum coil loading capacity of 5 tons. It is equipped with a coil centering device and a tension control system to prevent coil deviation during feeding, ensuring smooth and stable material supply. The uncoiler can be adjusted according to the diameter of the raw material coil, adapting to different coil specifications.
3.2 Leveling Device
Adopts a multi-roller leveling mechanism (12-16 rollers), made of high-quality carbon steel with quenching treatment, which can effectively eliminate the internal stress of the metal coil, correct the deformation of the sheet, and ensure the flatness of the material before forming. The leveling roller spacing is adjustable, suitable for different thicknesses of metal sheets.
3.3 Roll Forming Unit
The core part of the machine, composed of 16-24 groups of forming rollers (depending on the panel profile). The rollers are made of 45# steel,经过 carburizing, quenching, and grinding treatment, with a hardness of HRC58-62, ensuring wear resistance and long service life. The forming rollers are designed with precise CAD drawings, and the forming process is scientific and reasonable, ensuring that the formed panel has a smooth surface, uniform size, and no scratches.
3.4 Cutting Device

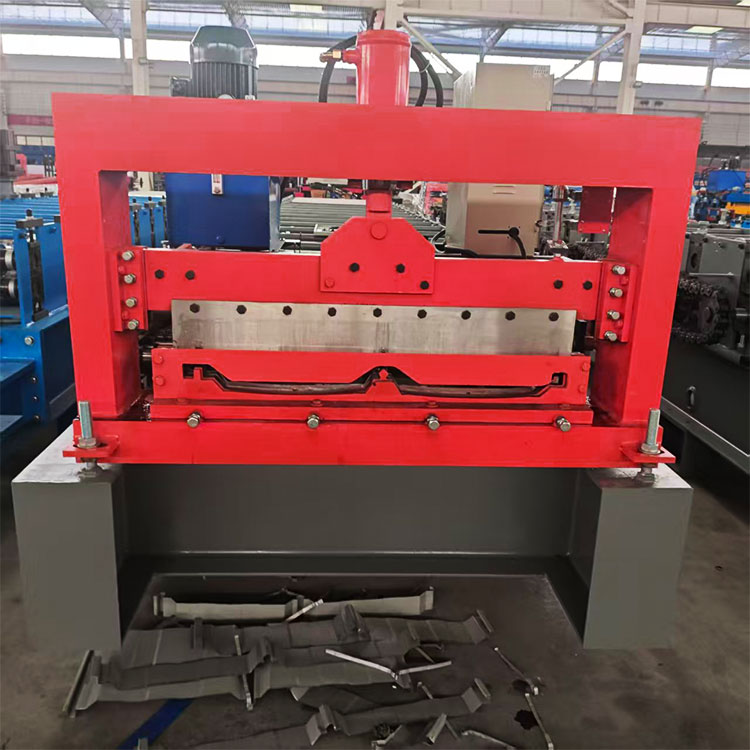

Optional hydraulic or mechanical cutting, with high cutting precision (error ≤±0.5mm). The cutting knife is made of high-speed steel, sharp and durable, and can cut the formed panel quickly and smoothly without burrs. The cutting length can be set freely through the touch screen, and the machine will automatically cut according to the set length, realizing automatic counting and cutting.
3.5 PLC Control System
Adopts imported or domestic high-quality PLC controller (Mitsubishi/Siemens/Delta optional) with a 7-inch or 10-inch touch screen, easy to operate. The control system integrates functions such as automatic feeding, leveling, forming, cutting, counting, and fault alarm. It can store multiple sets of profile parameters, which is convenient for switching between different products. In case of equipment failure, the system will automatically alarm and display the fault point, facilitating maintenance.
3.6 Transmission System
Adopts a frequency conversion speed regulation system, with stepless speed adjustment, which can adjust the forming speed according to the production needs. The transmission shaft is made of high-quality alloy steel, with precise processing and stable transmission, ensuring that the speed of each forming roller is consistent, avoiding panel deformation caused by speed inconsistency.
3.7 Frame Structure
The frame is made of thickened rectangular steel pipe, welded by robot, with high strength and good stability, preventing the machine from shaking during operation. The surface of the frame is treated with shot blasting and electrostatic spraying, which is anti-corrosion and anti-rust, suitable for long-term use in industrial environments.
4. Working Process
The working process of the corner rib panel roll forming machine is fully automatic, with simple operation and high efficiency, and the specific steps are as follows:
- Uncoiling: Place the metal coil on the uncoiler, fix it with the hydraulic expansion device, and adjust the centering device to ensure that the coil is aligned with the feeding direction.
- Leveling: The metal sheet is fed into the leveling device, and the multi-roller leveling mechanism corrects the sheet to make it flat and free of deformation.
- Roll Forming: The flattened sheet is fed into the roll forming unit, and through the step-by-step forming of multiple groups of forming rollers, the sheet is gradually formed into the required corner rib panel profile.
- Cutting: When the formed panel reaches the set length, the PLC control system sends a signal, and the cutting device automatically cuts the panel, and the counting system records the number of finished products.
- Output: The cut finished panels are conveyed to the discharge table through the conveyor belt, and the operator can directly collect and stack them.
The entire working process can be completed with only 1-2 operators, greatly reducing labor costs and improving production efficiency.
5. Product Advantages
- High Automation: Adopts PLC touch screen control, realizing full-automatic production from feeding to output, reducing manual intervention, and improving production efficiency and product consistency.
- Precise Forming: The forming rollers are designed with CAD precision and processed by professional equipment, ensuring that the formed panel has uniform size, smooth surface, and no scratches or deformations.
- Strong Customization: Can be customized according to customer’s profile drawings and technical requirements, including panel size, thickness, and profile shape, adapting to different construction needs.
- Stable Performance: The frame is thickened and welded firmly, the rollers are wear-resistant and durable, and the transmission system is stable, ensuring long-term continuous operation of the machine with low failure rate.
- Easy Operation & Maintenance: The touch screen operation interface is simple and intuitive, and the modular design is convenient for daily maintenance, part replacement, and equipment adjustment.
- Energy-Saving & Environmentally Friendly: Adopts frequency conversion speed regulation technology, which can adjust the speed according to production needs, saving energy; the machine operates with low noise, no pollution, and meets environmental protection requirements.
6. Application Scenarios
The corner rib panels produced by this machine have the advantages of strong load-bearing capacity, good waterproof performance, corrosion resistance, and beautiful appearance, and are widely used in:
- Industrial buildings: workshops, warehouses, factories, power plants, etc.
- Commercial buildings: shopping malls, exhibition halls, supermarkets, office buildings, etc.
- Residential buildings: villas, high-rise residential buildings, prefabricated houses, etc.
- Special buildings: cold storage, greenhouses, stadiums, airports, railway stations, etc.
7. After-Sales Service
We provide comprehensive after-sales service to ensure that customers can use the machine with confidence:
- Installation & Commissioning: Professional engineers will be sent to the customer’s site to install and commission the machine, and train the operator to master the operation and maintenance skills.
- Quality Guarantee: The machine has a 1-year quality guarantee period (excluding易损 parts), and we will provide free replacement of damaged parts caused by quality problems during the guarantee period.
- Spare Parts Supply: We have a complete spare parts warehouse, and can provide high-quality spare parts in a timely manner to avoid affecting production due to lack of spare parts.
- Technical Support: Provide 24-hour online technical support, and timely solve the technical problems encountered by customers during the use of the machine.
- Maintenance Service: Provide regular maintenance guidance and on-site maintenance service according to customer needs, extending the service life of the machine.
8. Packaging & Shipping
Packaging: The machine is packaged with waterproof film and wooden cases to prevent damage during transportation.易损 parts are packed separately and marked clearly.
Shipping: We can arrange shipping by sea, air, or land according to customer’s needs, and provide complete shipping documents (commercial invoice, packing list, bill of lading, etc.) to ensure that the machine arrives at the destination safely and on time.
