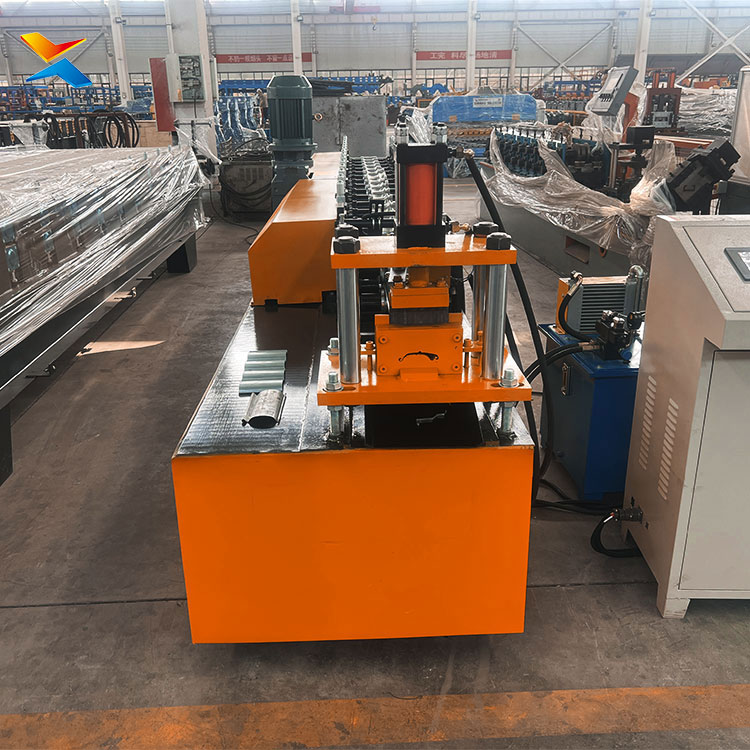

Hebei Xinnuo Roller Shutter Door Roll Forming Machine – Product Details
Core Function: High-precision roll forming of steel, aluminum, and galvanized sheet metal into roller shutter door panels.
Technical Specifications
- Material Thickness Range: 0.3–1.2mm
- Forming Speed: Up to 20m/min
- Drive System: Gearbox + frequency conversion motor (energy-saving, low noise)
- Control System: PLC + touch screen operation (CNC calibrated for precise parameter setting)
- Forming Stations: 12–18 stations (adjustable for different panel profiles)
- Cutting Method: Hydraulic cutting (clean, burr-free edges)
- Dimension: Customizable based on configuration
- Power Supply: 380V/50Hz 3-phase (or customized for global voltage standards)
Key Features
- High Efficiency: Automatic feed, forming, cutting, and stacking—reduces manual labor by 60% and boosts production capacity.
- Durable Build: Heavy-duty steel frame with anti-rust coating, wear-resistant rollers—ensures 10,000+ hours of stable operation.
- Flexible Customization: Adaptable to various panel widths, profiles, and materials; quick changeover between production tasks.
- Safety Compliance: Equipped with emergency stop buttons, safety sensors, and protective covers—meets CE, ISO industrial standards.
- Low Maintenance: Energy-saving components, minimal wear parts, and easy access for routine servicing.
After-Sales Services
- Factory-direct installation guidance (on-site or remote video support)
- 12-month warranty for core components
- Global supply of spare parts (fast delivery to key markets)
- Lifetime technical consultation and maintenance training
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
