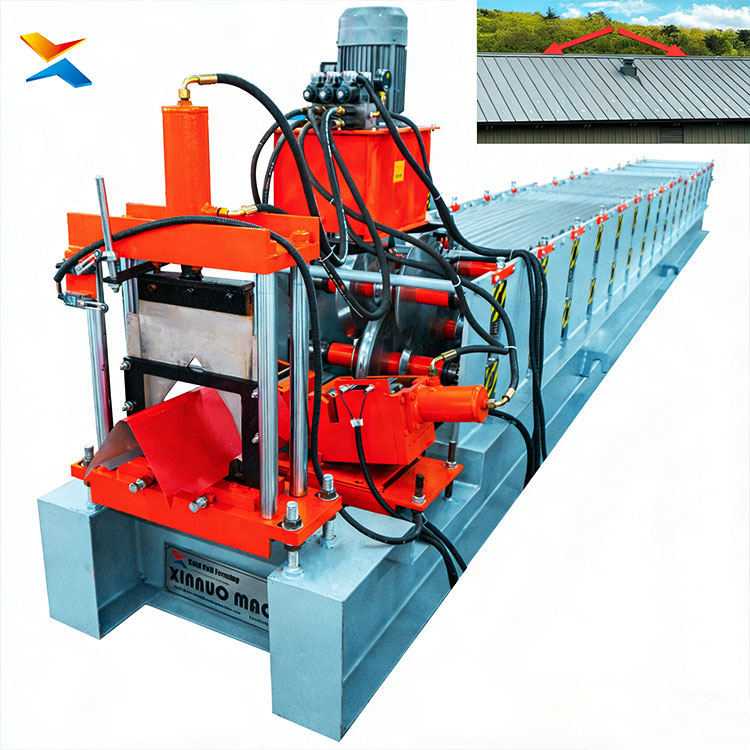

Product Details (Ridge Tile Forming Machine)
Model: XN-RTM Series
Application: Specialized in producing high-precision ridge tiles for metal roofing systems, widely used in residential, commercial, and industrial steel building projects.
Structural Features
- Heavy-Duty Frame: Welded by high-strength steel, with stress relief treatment to ensure no deformation during long-term operation.
- High-Precision Rollers: CNC-machined, heat-treated rollers for wear resistance and consistent tile profile shaping.
- Automatic Cutting System: Hydraulic cutting with high positioning accuracy, no burrs on tile edges.
- Feeding & Guiding Device: Ensures smooth material feeding, prevents deviation, and improves finished product qualification rate up to 99.9%.
Operational Advantages
- Intelligent Control: One-click start/stop, preset tile dimensions for quick switching between different models.
- Low Energy Consumption: Optimized motor design reduces power consumption by 15% compared to traditional models.
- Easy Maintenance: Modular structure for quick replacement of parts; no professional skills required for daily upkeep.
- Customization Support: Accept OEM/ODM orders for special ridge tile profiles according to customer drawings or samples.
After-Sales Service
- 12-month warranty for the whole machine; lifetime maintenance support.
- Free on-site installation, debugging, and technical training for operators.
- Spare parts supply with factory price; fast delivery within 7 days worldwide.
- 24/7 online technical consultation to solve problems in 2 hours.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
