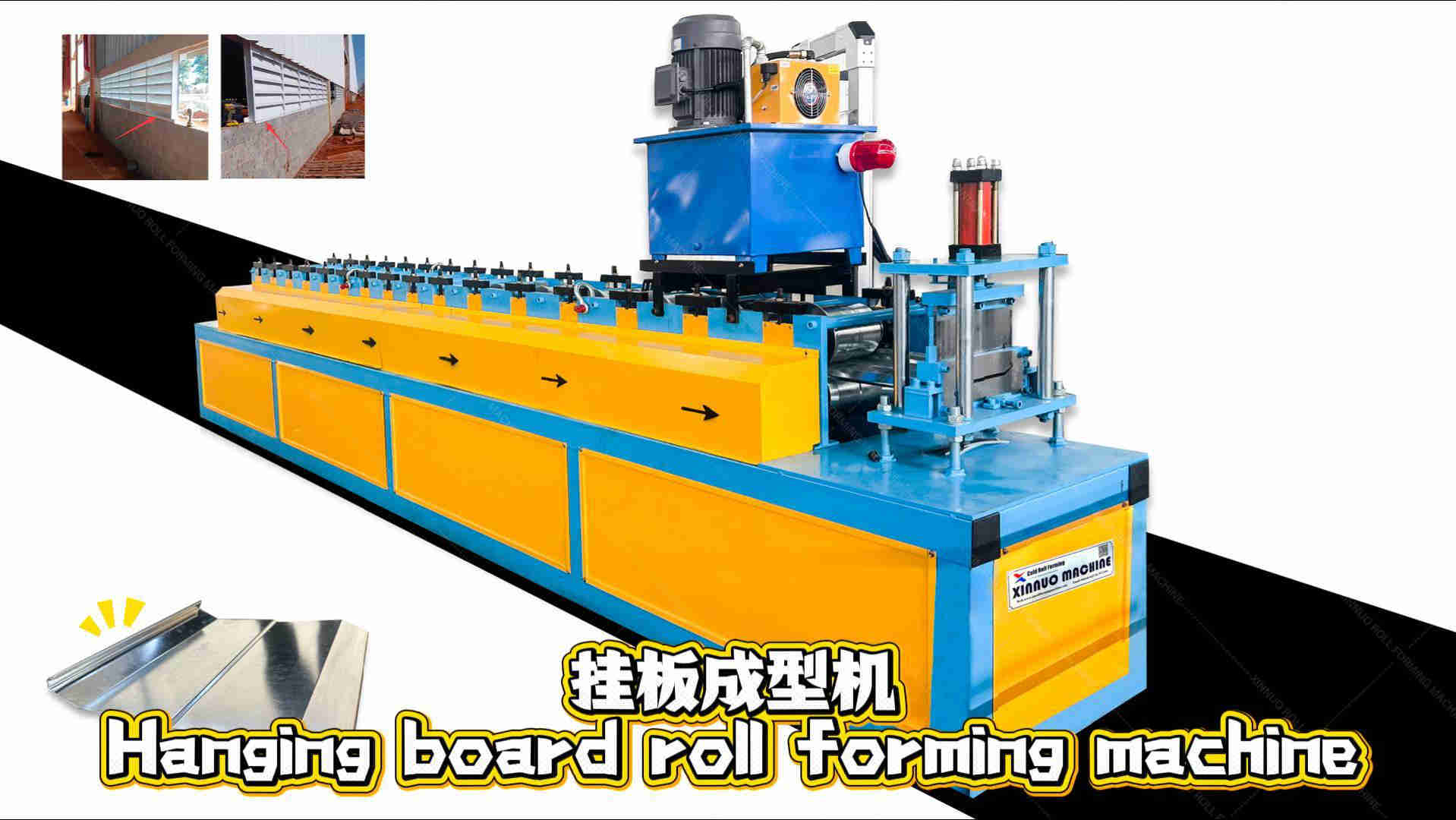

SUMMARY: Driven by the rapid growth of sustainable industrial architecture and high-end modern real estate worldwide, Xinnuo Roll Forming Machine Co., Ltd. (鑫诺压瓦机械有限公司) has officially launched its premium, heavy-duty automated Louver & Hanging Board Cold Roll Forming Machine. Engineered for severe operational environments, this advanced production line has successfully passed rigorous factory load testing and quality acceptance, preparing for strategic dispatch to high-temperature regions across South America and the Middle East.

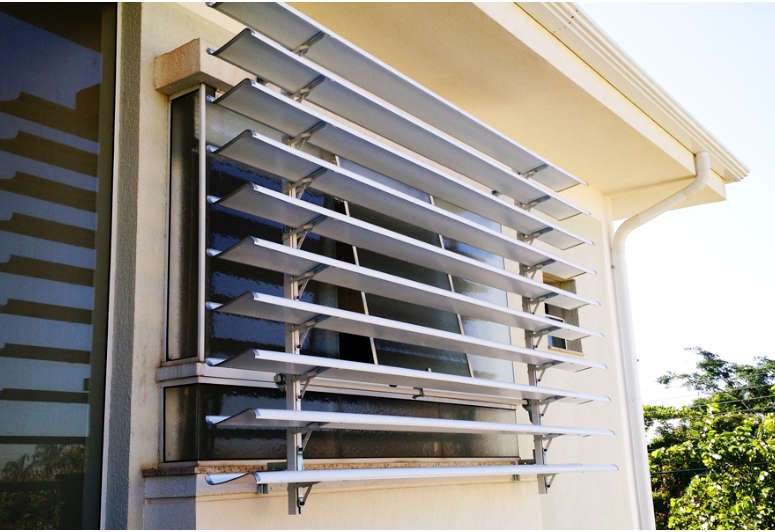

This high-performance louver roll forming machine by Xinnuo represents a technological milestone in structural metal cladding fabrication, purpose-built to deliver robust technical execution for modular container housing assemblies, external architectural ventilation facades, and advanced sun-shading systems.
1. Engineered for Extremes: Ultimate Thermal Resilience in High-Ambient Environments
To address the punishing ambient temperatures and intensive continuous operation schedules characteristic of tropical industrial project sites, the engineering team at Xinnuo Roll Forming Machine Co., Ltd. has prioritized advanced heat mitigation and heavy-duty structural fatigue resistance:
-
Active Thermal Control Framework: The main integrated electrical enclosure features upgraded, high-velocity active cooling fans, coupled with specialized heat-resistant internal wiring and high-temperature-rated core logic controllers to eliminate heat-induced system downtime.
-
Heavy-Duty Roller Shutter Frame: Utilizing a massive, high-rigidity roller shutter type stand structure (牌坊结构), the machine is equipped with $\phi70\text{ mm}$ solid 45# steel main shafts and premium anti-back washers. This robust architectural layout guarantees superior torsional resistance and maintains long-term geometric precision under maximum manufacturing loads.
2. Precision Engineering: 16-Station Precision Rolling for Complex Architectural Profiles
Xinnuo’s advanced engineering ensures high-efficiency, ultra-precise cold rolling of heavy-duty aluminum alloy profiles and color steel sheets:
-
Multi-Stage Gradual Deforming: Configured with 16 distinct forming stations, the system incorporates precisely cut 45# steel roller sets. This gradual progression model balances material stress distribution smoothly, eliminating surface scuffing, micro-cracking, or paint fracture.
-
Broad Material Thickness Capability: The production line processes raw metal coils with thicknesses ranging flawlessly from $0.3\text{ mm}$ to $0.65\text{ mm}$, offering full compatibility with standard Q235 steel, galvanized steel coils, and premium color-coated steel coils.
-
Complex Flange & Ribbon Processing: The production line masterfully handles intricate structural blueprints including integral structural reinforcing ribs, crisp 30° structural bends, and multi-layered edge-folding/hemming (Amassar) protocols. Finished louver panels feature sharp aesthetic contours with absolute flatness tolerances.
-
Premium Post-Forming Hydraulic Cut: Equipped with a heavy-duty hydraulic shear mechanism powered by a 4 KW reinforced pump station and a 5.5 KW main motor, the non-following cutting array utilizes top-grade $\text{Cr12MoV}$ die steel blades, providing burr-free cuts at a maximum running line speed of $18\text{ m/min}$.
3. Technological Leadership: Intelligent Automation & Multi-Dimensional Field Safety
Digital intelligence, industrial IoT connectivity, and flexible processing are the core benchmarks of Xinnuo’s machinery. Utilizing an integrated “PLC Automatic Control + Remote Monitoring” system, the machine injects data-driven capabilities into cold roll forming workflows:
-
Ergonomic HMI Interface: Operational parameters are managed through a 7-inch industrial touchscreen display mounted on a rotatable, height-adjustable control panel arm to maximize workspace operator ergonomics.
-
Global Language Localization: The machine firmware natively supports Chinese, English, and Portuguese interfaces, while physical operational panels feature clear dual-language English and Chinese engraved metal identification labels.
-
IoT Production Analytics & Diagnostics: The automated control logic logs essential performance metrics including hourly throughput, targeted order batch progress, and lifetime cumulative yields. Remote technical support allows engineers to optimize parameters or troubleshoot logic off-site.
Integrated Multi-Tiered Safety & Protection Grid
Worker safety is central to Xinnuo’s manufacturing philosophy. The master console integrates a physical Emergency Stop button that instantly interrupts power across the entire grid—including the hydraulic station, PLC, and frequency inverter. This is further backed by a wireless remote controller with an independent emergency cut-off. For grid protection, an integrated phase fault relay automatically secures the system panel against incoming power anomalies. Moving components are fully shielded by high-visibility yellow guards with integrated direction-of-travel indicators, and keyed quick connectors prevent improper terminal mating during setup.
4. Turnkey Plant Integration: Full-Stack Layout Built for Immediate Production
To enable rapid on-site commissioning and minimize lead times for global construction buyers, Xinnuo Roll Forming Machine Co., Ltd. delivers this line as a turnkey system. The complete line includes the primary cold roll forming machine, a heavy-duty 5-Ton manual decoiler/uncoiler, and a 3-meter simplified run-out discharge rack.
The system is coated in Xinnuo’s distinct international branding scheme—featuring an industrial safety blue chassis, obsidian black accents, and bright yellow protection elements. The lower frame includes integrated structural support legs and engineered crane lifting eyes/holes, allowing secure maritime container packing, efficient shipping, and straightforward field placement.
About Xinnuo Roll Forming Machine Co., Ltd. (鑫诺压瓦机械有限公司)
Established as a premier global leader in cold roll forming technology, Xinnuo Roll Forming Machine Co., Ltd. (鑫诺压瓦机械有限公司) specializes in the custom engineering, manufacturing, and deployment of high-end intelligent panel roll forming systems. Serving global infrastructure, solar tracking components, and architectural cladding industries, Xinnuo delivers durable, precision-engineered manufacturing systems designed to thrive in severe operating environments, creating sustainable economic value for global enterprise partners.
