EPS Board Foaming Line is a full-automatic production line specially used to continuously produce expanded polystyrene (EPS) foam boards, also known as insulation boards. It is widely applied in building insulation, packaging, shockproof materials, floor heating modules, cold storage, and construction filling fields.
Main Structure & Working Process
-
Raw Material Silo
Stores EPS raw beads and provides stable feeding for the whole line.
-

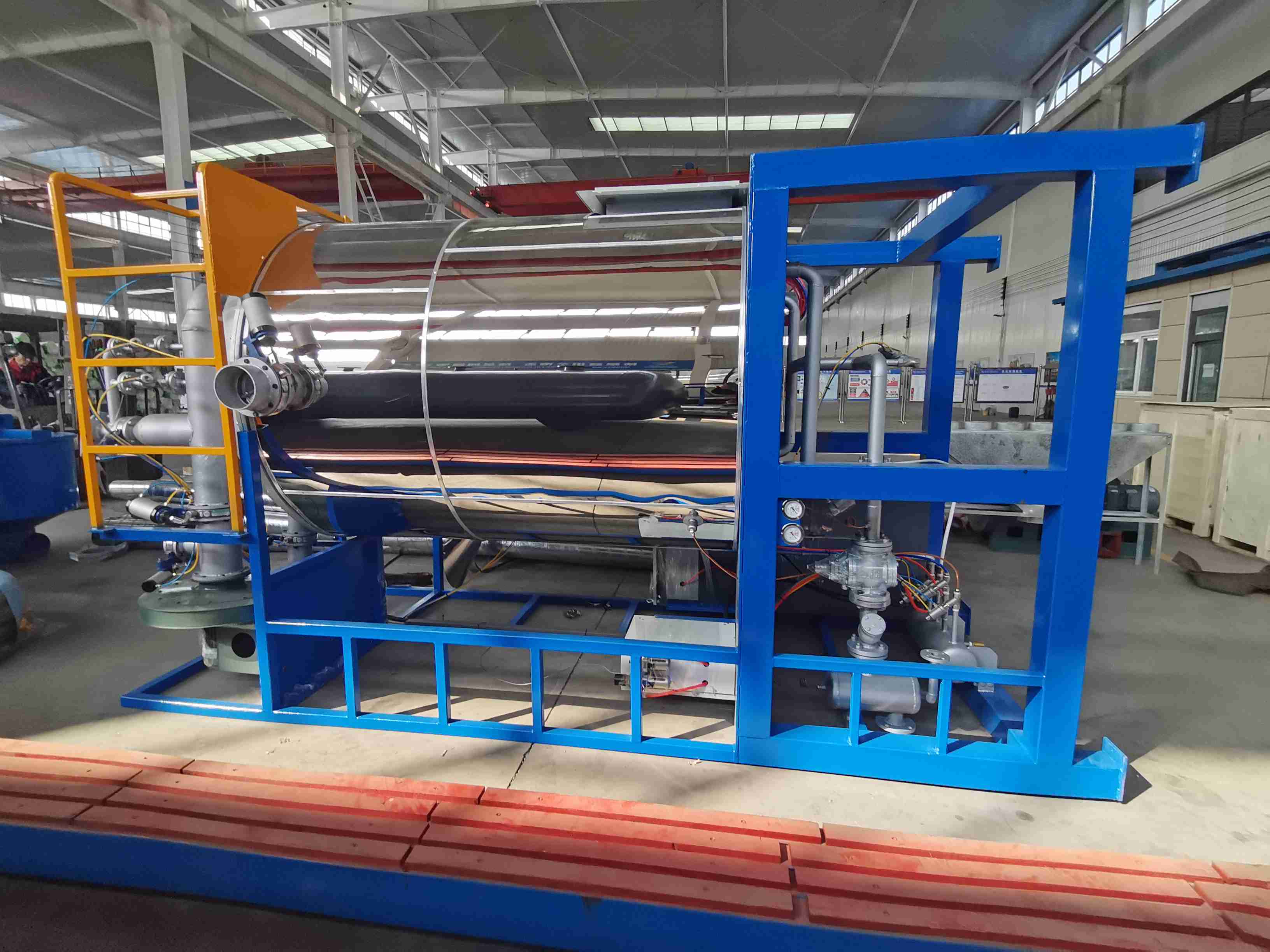

Pre-expander
Heats EPS beads with steam to expand them into lightweight porous beads. It controls expansion ratio and density accurately.
-
Aging Silo
Stores pre-expanded beads for a period of time to balance internal air pressure, stabilize moisture and temperature, ensuring stable quality in later forming.
-
Continuous Block Molding Machine
Fills aged beads into the molding chamber. Under high-temperature steam heating, the beads fuse together to form large EPS foam blocks with high strength and uniform density.
-
Block Cooling & Storage System
Cures and cools the formed EPS blocks to avoid deformation.
-

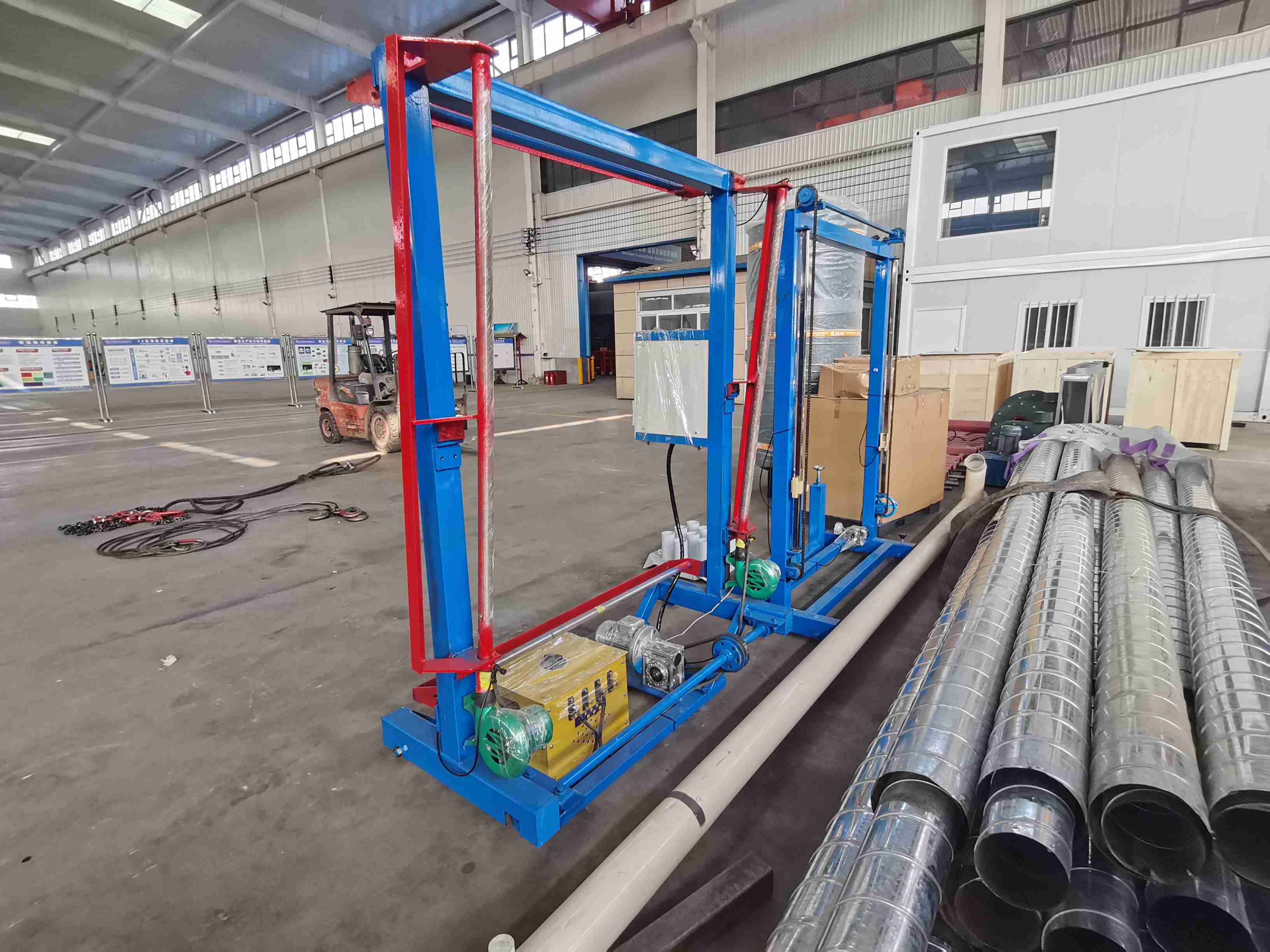

Cutting Machine
Cuts large foam blocks into standard EPS boards of different sizes, thicknesses and lengths with high precision.
-
Electrical Control System
Adopts PLC and touch screen to realize fully automatic operation. It can adjust temperature, pressure, feeding speed, block size and cutting dimensions.
Main Technical Features
- Fully automatic production, high degree of automation, stable operation.
- Accurate control of foam density and expansion ratio.
- High efficiency, low energy consumption and low waste rate.
- Produced EPS board has good heat insulation, shock absorption, light weight and high strength.
- Stable performance, easy operation and maintenance.
Main Applications
- Building external wall insulation and internal thermal insulation.
- Packaging for electronic products, instruments and furniture.
- Floor heating modules, construction filling materials.
- Insulation materials for cold storage, logistics and transportation.
