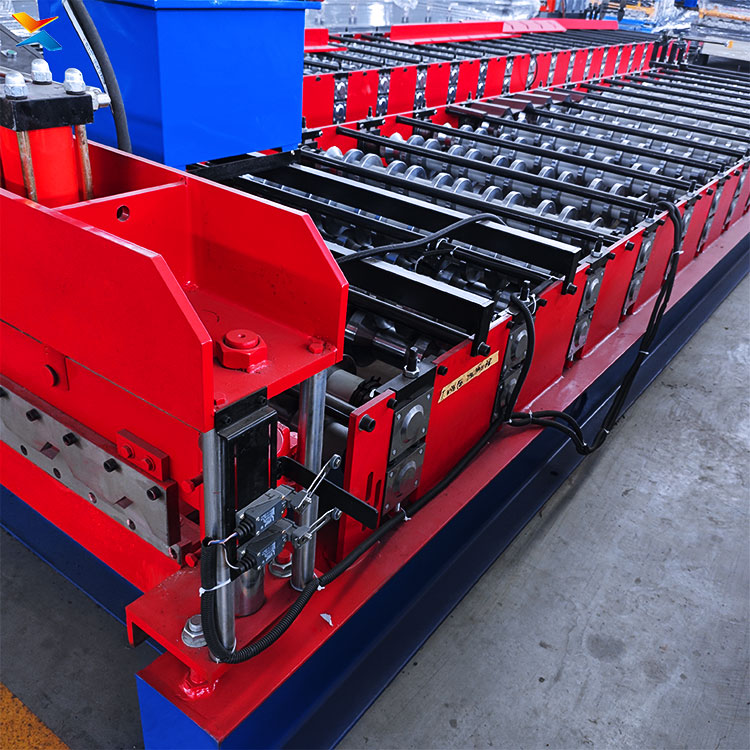

Trapezoidal Sheet Roll Forming Machine — Full Product Description
Our Trapezoidal Sheet Roll Forming Machine is a fully automatic, high-efficiency production line specially designed for manufacturing trapezoidal profiled metal sheets. It is widely used in the production of roof panels, wall cladding sheets, ceiling panels and structural panels for industrial workshops, warehouses, commercial buildings and residential construction.
The machine integrates sheet feeding, leveling, punching, roll forming, length measuring, hydraulic cutting and automatic stacking in one complete system. It adopts a heavy-duty steel frame structure with overall welding and stress relief treatment, ensuring high stability, low noise and long service life even under long hours of continuous working.
Equipped with a high-performance PLC control system and touch screen operation panel, the machine supports easy parameter setting, automatic length counting, fixed-length cutting, production quantity statistics and fault self-diagnosis. Users can set sheet length, quantity and forming speed conveniently, realizing fully automatic production with minimal labor.
The forming system consists of high-precision rollers made of 45# forged steel with fine grinding and hard chrome plating treatment. The rollers are processed by CNC machining center to ensure high dimensional accuracy and smooth surface, so that the finished sheets have beautiful appearance, stable size and no scratch. The main motor adopts high-quality copper motor with stable power and low energy consumption.
The hydraulic cutting system uses high-strength cutting tools, providing clean cutting, no burrs and high precision. The cutting length error can be controlled within ±1mm. The machine supports quick adjustment for different sheet widths and profiles, helping customers improve production flexibility and reduce mold change time.
This trapezoidal sheet roll forming machine can process galvanized steel, aluminum alloy, color coated steel and other metal coils. It features high forming speed, stable performance, simple operation and easy maintenance. It is an ideal equipment for metal construction sheet manufacturers to improve production efficiency and product quality.
We offer customized profile design, various voltage options and complete after-sales service. The machine is strictly tested before delivery and complies with international safety standards, providing reliable and cost-effective solutions for global customers.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
