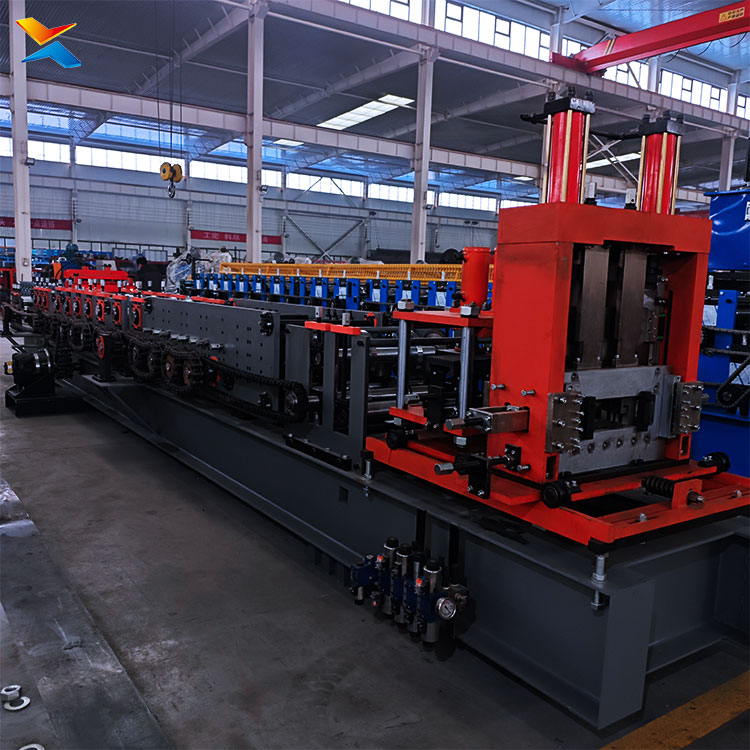

C-Type Purlin Forming Machine Product Details
The C-Type Purlin Forming Machine is a specialized cold-formed steel processing equipment, mainly used for continuous production of C-shaped steel purlins with high precision and high efficiency. It integrates multiple functions such as feeding, leveling, punching, forming, cutting and discharging, and is widely used in steel structure processing, prefabricated building production, and various construction projects that require load-bearing components. This product details will elaborate on the machine’s structure, working principle, core components, operation steps, maintenance methods and other key information to help you fully understand the equipment.
1. Machine Overall Structure
The machine is composed of 6 core parts, each of which cooperates closely to ensure the smooth operation of the entire production line. The structure is compact, the layout is reasonable, and it is easy to install and maintain.
- Feeding Device: It consists of a coil support frame, a feeding roller and a guide device. The coil support frame adopts a hydraulic lifting structure, which can easily load steel coils with a weight of 1-5 tons, and the feeding roller is covered with anti-slip rubber to prevent the steel coil from slipping during feeding. The guide device ensures that the steel coil enters the leveling device smoothly and avoids deviation.
- Leveling Device: Equipped with 7-9 groups of leveling rollers made of high-quality alloy steel, which are precisely ground and heat-treated. It can effectively eliminate the internal stress of the steel coil, correct the deformation of the steel plate, and ensure that the steel plate is flat before forming, laying a foundation for precise forming.
- Punching Device: Optional automatic punching module, equipped with a hydraulic punching head and a replaceable die. It can punch holes of different sizes and shapes (round holes, square holes) at the specified position of the steel plate according to the needs of the project, with high punching precision (±0.5mm) and fast speed, which can be synchronized with the forming process without affecting production efficiency.
- Forming Device: The core part of the machine, composed of 12-16 groups of forming rollers. The rollers are designed with a scientific multi-pass progressive forming structure, which gradually bends the flat steel plate into a C-shaped cross-section. The roller surface is chrome-plated, which has strong wear resistance and corrosion resistance, and can ensure the smooth surface of the formed purlin without scratches.
- Cutting Device: Adopts hydraulic cold cutting technology, with a high-hardness cutting blade. It can cut the formed C-type purlin according to the set length, with smooth cutting surface, no burrs, no deformation, and the cutting length error is controlled within ±1mm. The cutting process is fast and stable, and can be automatically triggered after the purlin reaches the set length.
- Discharging Device: Equipped with a conveying roller and a receiving frame, which can automatically convey the cut C-type purlins to the receiving area, avoiding manual handling, reducing labor intensity, and ensuring the orderliness of the finished products.
2. Working Principle
The working process of the C-Type Purlin Forming Machine is fully automatic, and the whole process is controlled by the PLC system, which is simple and efficient. The specific working principle is as follows:
- First, place the cold-rolled steel coil on the coil support frame, and adjust the height and position of the coil to align with the feeding device.
- Start the machine, the feeding roller drives the steel coil to enter the leveling device, and the leveling rollers correct the steel plate to make it flat.
- The flat steel plate enters the punching device (if equipped), and the hydraulic punching head punches holes at the set position according to the pre-set parameters.
- The steel plate after punching enters the forming device, and the multi-group forming rollers gradually bend the steel plate into a C-shaped cross-section through progressive forming.
- When the formed C-type purlin reaches the set length, the cutting device is automatically triggered to cut the purlin, and the cut purlin is conveyed to the receiving frame through the discharging device.
- The machine repeats the above steps to realize continuous mass production, and the production process can be monitored in real time through the touch screen, and parameters can be adjusted at any time if necessary.
3. Core Component Advantages
The quality of core components directly determines the performance and service life of the machine. We select high-quality components and adopt advanced processing technology to ensure the stability and reliability of the equipment.
- PLC Control System: Adopts imported Siemens or Mitsubishi PLC controller, with strong anti-interference ability and stable performance. The touch screen interface is intuitive and easy to operate, supporting parameter setting, production counting, fault alarm, data storage and other functions. It can realize one-key start and stop, and the operation threshold is low.
- Forming Rollers: Made of high-strength 40Cr alloy steel,经过 precision turning, grinding and heat treatment (quenching and tempering), the hardness reaches HRC58-62, which has excellent wear resistance and shape retention. The roller design is optimized by professional engineers, which can reduce the stress of the steel plate during forming and avoid material damage.
- Hydraulic System: Equipped with a high-pressure hydraulic pump and a hydraulic cylinder from well-known brands, with stable pressure output and fast response speed. It is used for punching and cutting, ensuring smooth and efficient operation, and the hydraulic oil is equipped with a filtration system to extend the service life of the hydraulic components.
- Motor: Adopts high-efficiency three-phase asynchronous motor, with low power consumption, high torque and low noise. The motor is equipped with a thermal protection device, which can automatically cut off the power when overheated, preventing motor damage.
- Frame: Made of 16mm thick high-quality steel plate, through integral welding and tempering treatment, the frame has strong rigidity and deformation resistance, which can withstand the vibration and pressure during the forming process, ensuring the stability of the machine during long-term operation.
4. Operation Steps
The machine is easy to operate, and operators can get started quickly after simple training. The specific operation steps are as follows:
- Pre-operation inspection: Check whether the machine is connected to the power supply normally, whether the hydraulic oil level is sufficient, whether the rollers and blades are worn, and whether the safety protection devices are intact.
- Parameter setting: Turn on the power, enter the PLC control interface through the touch screen, set the length, quantity, punching position (if needed) and forming speed of the purlin according to the production requirements.
- Loading: Use a crane to hoist the steel coil to the coil support frame, adjust the position to align with the feeding device, and fix the steel coil to prevent slipping.
- Start production: Press the “start” button, the machine will automatically start feeding, leveling, punching (if equipped), forming, cutting and discharging. Operators only need to monitor the production process and sort out the finished products.
- Shutdown: After the production task is completed, press the “stop” button, turn off the power supply, clean the machine, remove the residual steel plate and debris, and check the wear of the components.
5. Maintenance and Maintenance
Regular maintenance and maintenance can effectively extend the service life of the machine, reduce the failure rate, and ensure the stability of production. The specific maintenance methods are as follows:
- Daily Maintenance: After each use, clean the machine surface and the rollers, remove the residual steel chips and dust; check the hydraulic oil level, if it is lower than the specified level, add hydraulic oil in time; check the tightness of the transmission chain and belt, and adjust if necessary.
- Weekly Maintenance: Lubricate the rotating parts (rollers, bearings, transmission chain) with lubricating oil to reduce friction; check the wear of the cutting blade and punching die, and replace them if they are worn; check the safety protection devices to ensure they are sensitive and effective.
- Monthly Maintenance: Check the electrical system, including wires, connectors and sensors, to ensure there is no loose or damaged; check the frame for deformation or welding cracks; clean the hydraulic oil filter and replace the hydraulic oil every 6 months.
- Matters Needing Attention: Do not operate the machine with faults; do not put hands or other objects into the running parts during operation; the operator must wear protective equipment (gloves, goggles) when working; the machine must be shut down and powered off during maintenance.
6. Safety Instructions
- The machine must be installed and commissioned by professional technicians, and it can be used only after passing the inspection.
- Operators must receive professional training, be familiar with the operation procedures, and operate the machine in strict accordance with the instructions.
- Equipped with emergency stop buttons on the operation panel and both sides of the machine, which can be pressed immediately in case of emergency to stop the machine quickly.
- The rotating parts of the machine are equipped with protective covers, which are not allowed to be removed during operation to avoid safety accidents.
- Do not overload the machine, and do not process steel plates that exceed the specified thickness and width.
Our C-Type Purlin Forming Machine is designed with high precision, high efficiency and high stability, and provides comprehensive after-sales service to solve your worries in use. If you have any questions about the product details, please feel free to contact us, and we will provide you with professional answers and solutions.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
