Rolling Shutter Door Forming Machine Detail Description

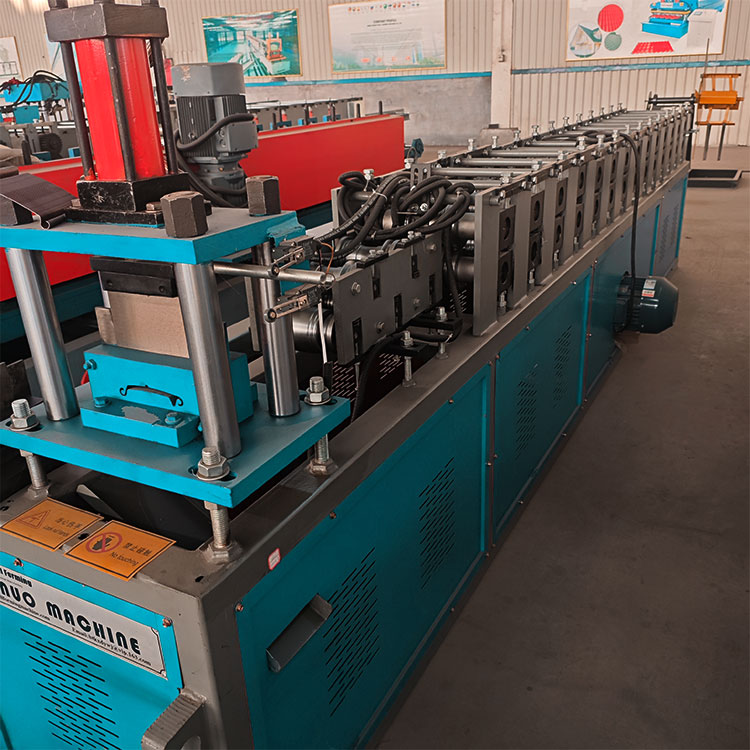

Our rolling shutter door forming machine is a professional and reliable production equipment, specially developed for manufacturing high-quality rolling shutter door slats, widely used in construction, warehousing, commerce and residential fields. It integrates advanced cold roll forming technology, automatic control system and robust structural design, solving the pain points of low efficiency, poor precision and high labor cost in traditional rolling shutter production, and becoming an essential core equipment for door and window manufacturers.
In terms of forming performance, the machine is equipped with high-precision Cr12MoV forming rollers, which are hardened and precision ground to ensure that the formed slats have uniform thickness, smooth surface and no burrs, with a forming precision of ±0.1mm. It effectively avoids slat deformation and unevenness, ensuring the overall quality and service life of the rolling shutter door. The adjustable forming structure supports multiple slat types (C-type, U-type, Z-type) and specifications, with slat width 75-125mm and thickness 0.3-1.2mm, compatible with galvanized steel, color steel, aluminum and stainless steel sheets.
For operation convenience, the machine adopts PLC touch screen control, realizing full-automatic feeding, forming, cutting, punching and counting. The stepless adjustable speed (5-15m/min) can be flexibly adjusted according to production demand, and one operator can complete the whole process, greatly reducing labor cost and improving production efficiency. The parameter memory function allows quick switching between different specifications, saving adjustment time.
In terms of stability and safety, the frame is made of high-quality steel plate, through integral welding and tempering treatment, with strong rigidity and no deformation during long-term operation. Key components are from well-known brands, with low noise (≤75dB) and low failure rate. It is also equipped with emergency stop, overload protection and photoelectric protection devices to fully protect the safety of operators and equipment.
We provide comprehensive after-sales service, including free installation and commissioning, one-year quality guarantee, permanent technical support and preferential spare parts supply, ensuring that your production runs smoothly. This machine combines efficiency, precision and durability, helping you reduce costs and enhance market competitiveness.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
