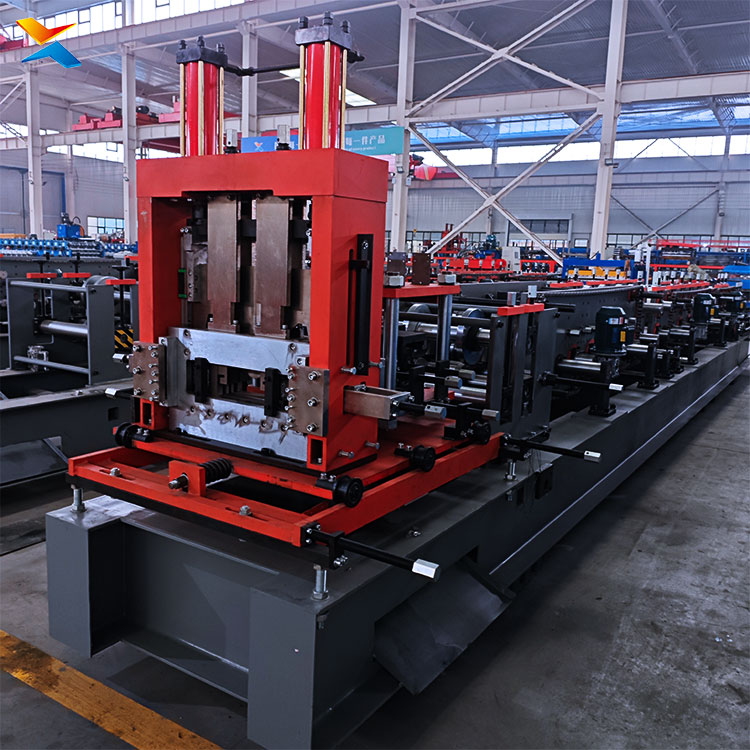

C-Type Purlin Forming Machine Product Description
As a key equipment in modern steel structure processing, the C-Type Purlin Forming Machine integrates cold forming, automatic control and precision processing, dedicated to manufacturing high-quality C-shaped purlins for various construction projects. Unlike traditional manual or semi-automatic equipment, this machine realizes full-process automation, which not only improves production efficiency but also ensures the consistency and stability of product quality, making it a preferred choice for construction enterprises, steel processing factories and prefabricated building manufacturers.
Product Highlights
- Intelligent Control System: Equipped with a high-performance PLC control system and a humanized touch screen, the machine allows for one-key parameter setting, automatic counting, and fault alarm functions. Operators can easily adjust the length, punching position and forming speed of purlins according to actual needs, reducing operational errors and improving production accuracy. The system also supports data storage and recall, facilitating batch production and parameter management.
- Superior Forming Quality: The forming roller group is made of high-strength alloy steel,经过 precision grinding and heat treatment, which ensures excellent wear resistance and shape retention. The scientific roller design adopts multi-pass progressive forming technology, which effectively avoids the problems of material deformation, wrinkling and burrs during the forming process. The finished C-type purlins have a neat cross-section, uniform wall thickness and strong structural stability, which can withstand large loads in practical applications.
- Flexible Customization: We understand that different construction projects have different requirements for purlin specifications. This machine supports flexible customization of purlin sizes, including height, width and thickness. By replacing the corresponding molds and adjusting the roller spacing, it can produce C-type purlins with specifications ranging from 80×40mm to 300×120mm, suitable for different span and load requirements of industrial and civil buildings. It can also be customized with additional functions such as hole punching, notching and embossing according to customer needs.
- Energy-Saving & Environmentally Friendly: Adopting an optimized transmission structure and high-efficiency motor, the machine has the advantages of low power consumption, low noise and low energy consumption. During the production process, there is no waste gas, waste water or waste residue generated, which meets the national environmental protection standards. The compact design of the machine saves workshop space, making it suitable for both large-scale factories and small and medium-sized processing workshops.
- Easy Maintenance & Long Service Life: The machine adopts a modular design, which makes the disassembly and assembly of components convenient and quick. Key components such as motors, gearboxes and hydraulic systems are selected from well-known brands, ensuring reliable performance and long service life. We provide detailed maintenance manuals and professional technical guidance, enabling customers to carry out daily maintenance and troubleshooting easily, reducing equipment failure rate and extending service life.
Key Technical Specifications
|
Item
|
Details
|
|---|---|
|
Product Type
|
Automatic C-Type Purlin Forming Machine
|
|
Raw Material Specification
|
Cold-rolled Steel Coil, Thickness: 1.5-4.0mm, Width: 300-600mm
|
|
Forming Speed
|
10-18m/min (Adjustable)
|
|
Purlins Specification Range
|
Height: 80-300mm, Width: 40-120mm
|
|
Cutting Precision
|
±1mm
|
|
Control Mode
|
PLC + Touch Screen, Automatic/Manual Dual Mode
|
|
Power Supply
|
380V/50Hz, 3-Phase (Customizable for overseas markets)
|
|
Total Power
|
15-25KW
|
|
Machine Dimension (L×W×H)
|
6000×1200×1500mm (Depends on specifications)
|
|
Weight
|
4000-9000KG
|
|
Punching Function
|
Optional, Automatic Punching (Position Adjustable)
|
Application Fields
The C-type purlins produced by this machine are widely used in the construction of industrial workshops, logistics warehouses, agricultural greenhouses, commercial buildings, residential buildings, and other steel structure projects. They can be used as main load-bearing components such as roof purlins, wall purlins, and floor beams, and can also be combined with other steel components to form a stable structural system. With the advantages of light weight, high strength, easy installation and cost-saving, C-type purlins have become an indispensable part of modern steel structure buildings.
Our Commitment
We are committed to providing customers with high-quality C-Type Purlin Forming Machines and perfect after-sales service. All machines are subject to strict quality inspection before leaving the factory to ensure that they meet the standards. We provide on-site installation, commissioning and training services, so that customers can use the equipment proficiently. In addition, we have a professional after-sales team to provide 24-hour technical support and timely supply of spare parts, solving customers’ worries in the process of use.
Whether you are a large-scale steel structure enterprise or a small and medium-sized processing workshop, our C-Type Purlin Forming Machine can meet your production needs. We look forward to cooperating with you to create more value for your business.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
