Trapezoidal Single Panel – Detailed Product Description
Welcome to our trapezoidal single panel product page. As a professional manufacturer, we are committed to providing high-quality, durable and cost-effective trapezoidal panels for global construction projects. This detailed description covers all aspects of the product, helping you fully understand its performance, features and application scenarios, and make the most suitable purchasing decision.
1. Product Overview
Our trapezoidal single panel is a professional building cladding and roofing material, designed with a scientific trapezoidal profile to balance structural stability and practicality. It is made of high-grade raw materials and processed by advanced production technology, which is widely used in industrial, commercial and residential construction fields. The panel integrates strength, durability, aesthetics and easy installation, becoming the preferred material for modern building envelope systems.
2. Core Raw Materials & Production Technology
2.1 Raw Materials
We strictly select raw materials to ensure the overall performance of the product. The main materials include:
- Galvanized Steel: Adopts hot-dip galvanized steel coil with zinc coating thickness of 80-275g/㎡, which has excellent anti-corrosion and anti-rust performance, and can adapt to humid, coastal and other harsh environments.
- Color-Coated Steel: Based on galvanized steel, it is coated with high-quality PVDF, PE or HDP coating, with strong adhesion, anti-UV, anti-fading and waterproof properties, and a variety of color options to meet architectural design needs.
- Aluminum Alloy: Lightweight, corrosion-resistant, non-rusting, suitable for high-end buildings, coastal areas or projects with strict weight requirements, with good thermal conductivity and environmental protection.
All raw materials comply with international standards (such as ISO, CE, ASTM), non-toxic, environmentally friendly, and meet the requirements of green building.
2.2 Production Technology
The product is produced by full-automatic numerical control production lines, with strict control of each process:

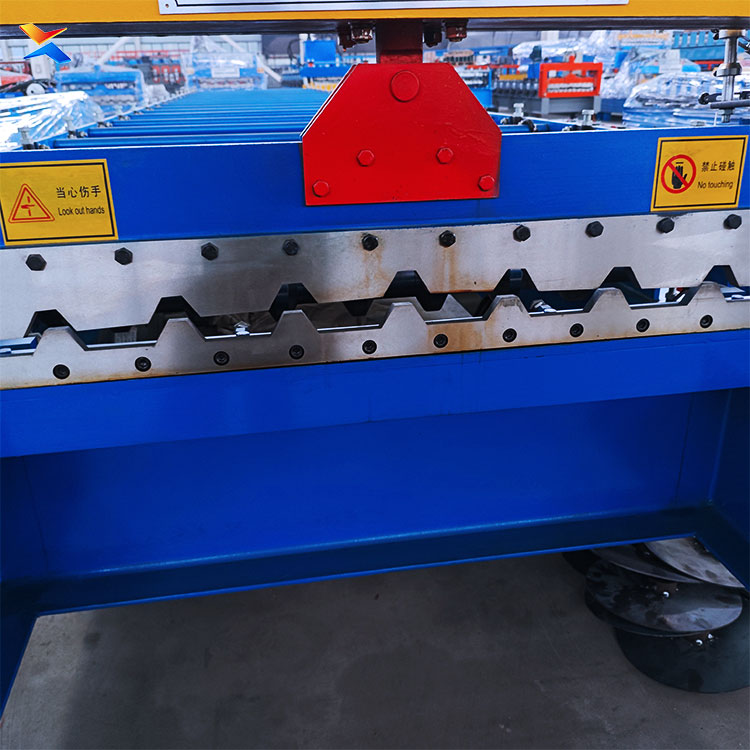

- Precision Forming: Using advanced roll forming technology, the trapezoidal profile is formed at one time, with accurate dimensions, uniform thickness, smooth surface and no burrs.
- Surface Treatment: Adopts electrostatic spraying, hot-dip coating and other technologies, the coating is uniform, firm and not easy to peel off, effectively extending the service life of the panel.
- Quality Inspection: Each panel undergoes strict inspection (dimension detection, coating thickness detection, flatness detection, corrosion resistance test) before leaving the factory to ensure that the product meets the quality standards.
3. Product Specifications & Customization
3.1 Standard Specifications
|
Item
|
Standard Parameter
|
|---|---|
|
Material Thickness
|
0.3mm – 1.2mm (common: 0.5mm, 0.6mm, 0.8mm)
|
|
Panel Width
|
Effective Width: 800mm – 1200mm; Total Width: 900mm – 1300mm
|
|
Panel Length
|
2m – 12m (can be cut according to project needs)
|
|
Trapezoidal Profile
|
Height: 20mm – 80mm; Pitch: 100mm – 300mm
|
|
Coating Thickness
|
PVDF: 20μm – 30μm; PE/HDP: 15μm – 25μm
|
|
Color
|
Standard: White, Gray, Blue, Red, Green; Custom colors available
|
3.2 Customization Services
We provide comprehensive customization services to meet the specific needs of different projects:
- Size Customization: Thickness, width, length, trapezoidal profile height and pitch can be customized according to the project drawings.
- Material Customization: Choose galvanized steel, color-coated steel, aluminum alloy or other special materials according to the application environment and budget.
- Surface Customization: Customize coating type (PVDF/PE/HDP), color, surface finish (matte/glossy) according to architectural design.
- Special Processing: Provide punching, cutting, bending and other special processing services to adapt to special installation scenarios.
4. Core Product Advantages
- Superior Structural Stability: The trapezoidal profile design enhances the rigidity and load-bearing capacity of the panel, which can withstand strong wind, heavy rain, snow load and other harsh weather, and is not easy to deform or collapse, ensuring the safety of the building.
- Excellent Corrosion & Weather Resistance: High-quality raw materials and advanced surface treatment technology make the panel have strong anti-corrosion, anti-rust, anti-UV and waterproof properties, and can be used for 15-30 years in outdoor environments without fading or damage.
- Lightweight & Easy Installation: The panel is lightweight, easy to transport and handle, and can be quickly installed with professional accessories (self-tapping screws, sealing strips, etc.), which greatly improves construction efficiency and reduces labor and time costs.
- Beautiful & Versatile: The smooth surface, uniform color and neat trapezoidal lines bring a simple and elegant aesthetic effect to the building. A variety of colors and specifications can be matched with different architectural styles, suitable for various construction scenarios.
- Cost-Effective: The product has reasonable price, long service life, low maintenance cost, and no need for frequent replacement, which can save the overall cost of the project in the long run.
- Environmentally Friendly & Energy-Saving: The raw materials are recyclable, in line with the concept of green environmental protection; the panel has a certain thermal insulation effect, which can help reduce the energy consumption of the building.
5. Application Scenarios
Our trapezoidal single panel is widely used in various construction projects due to its excellent performance, including:
- Industrial Buildings: Factories, workshops, warehouses, production workshops, power plants, etc.
- Commercial Buildings: Shopping malls, supermarkets, exhibition halls, stadiums, hotels, office buildings, etc.
- Residential Buildings: Villa roofs, residential wall cladding, prefabricated houses, temporary buildings, etc.
- Other Scenarios: Storage sheds, greenhouses, scenic spot pavilions, parking sheds, etc.
It is especially suitable for large-span buildings, coastal areas, humid areas and other projects with high requirements for anti-corrosion and structural stability.
6. Installation & Maintenance
6.1 Installation Tips
The installation of the trapezoidal single panel is simple and efficient, and the following points should be noted:
- Before installation, check the flatness of the base (purlin, wall frame) to ensure that it meets the installation requirements.
- Use professional self-tapping screws and sealing strips to fix the panel, ensuring that the connection is tight and waterproof.
- When installing the roof panel, pay attention to the slope (usually 3°-15°) to ensure smooth drainage and avoid water accumulation.
- The installation should be carried out in accordance with the project drawings, and the gap between panels should be controlled to avoid affecting the overall structure and waterproof effect.
6.2 Maintenance
The product has low maintenance cost, and regular simple maintenance can extend its service life:
- Regularly clean the surface of the panel to remove dust, dirt and other debris, avoiding the accumulation of corrosive substances.
- Check the connection parts and sealing strips regularly. If there is looseness or damage, repair or replace them in time.
- Avoid sharp objects scratching the surface coating. If there is local damage, repair it with matching paint in time to prevent corrosion.
7. Quality Assurance & After-Sales Service
7.1 Quality Assurance
We have a complete quality management system, from raw material procurement to product delivery, each link is strictly inspected. All products pass ISO9001 quality system certification, CE certification and other international certifications, ensuring that the product quality meets the highest standards.
We provide a quality guarantee period of 5-10 years (depending on the material and coating), during which if there is any quality problem caused by the product itself, we will provide free repair or replacement services.
7.2 After-Sales Service
We provide professional after-sales service to solve your problems in the process of purchasing, installation and use:
- Professional Consultation: Provide one-on-one product consultation and technical guidance to help you choose the most suitable product specifications.
- Installation Guidance: Provide detailed installation drawings and video guidance, and send professional technicians to the site for guidance if necessary.
- After-Sales Response: For after-sales problems, we will respond within 24 hours and provide a solution within 48 hours.
- Long-Term Cooperation: Provide long-term supply and maintenance services for old customers, and give preferential policies for bulk orders.
8. Why Choose Us?
As a professional trapezoidal panel manufacturer with many years of experience, we have the following advantages:
- Advanced Production Capacity: We have multiple automatic production lines, with an annual output of millions of square meters, which can meet the needs of large orders and deliver on time.
- Strict Quality Control: From raw materials to finished products, strict inspection is carried out to ensure product quality stability.
- Comprehensive Customization: Provide personalized customization services to meet the specific needs of different projects.
- Competitive Price: Direct factory sales, no middlemen, providing high-quality products at reasonable prices.
- Global Export Experience: Our products have been exported to more than 50 countries and regions, and have won wide recognition from global customers.
If you have any needs for trapezoidal single panels, please contact us at any time. We will provide you with high-quality products and professional services, and work with you to create high-quality construction projects!
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
