# CZ Purlin Roll Forming Machine
## Product Description
The CZ purlin roll forming machine is a highly automatic and efficient metal cold forming equipment specially designed for continuously producing C-shaped and Z-shaped steel purlins. It is widely used in steel structure buildings, warehouses, workshops, high-rise buildings, prefabricated houses, and other construction fields, providing stable and high-quality supporting components for roof and wall systems.
This machine integrates uncoiling, leveling, feeding, roll forming, punching, cutting, and automatic stacking in one. It can quickly switch between C and Z profiles by adjusting the rollers and related components, realizing one machine with multiple uses, greatly improving production efficiency and reducing equipment investment costs for customers.
## Key Features & Advantages
- **Quick C/Z Profile Switching**
Adopts professional adjustable roll forming system, which can switch between different specifications of C purlin and Z purlin in a short time without replacing the whole roller set, meeting diversified production requirements.
- **High Precision & Stable Forming**
The roll stands are made of solid steel with quenching treatment, equipped with high-precision bearings and transmission system. The formed purlins have smooth surface, accurate size, straightness, and consistent cross-section, fully meeting construction and installation standards.
- **Full Automatic Production Line**
Configured with PLC touch screen control system, servo motor drive, and hydraulic cutting system. The whole process of feeding, forming, sizing, cutting, and discharging is fully automatic. It supports length preset, counting, fault alarm, and other intelligent functions, easy to operate and reduces labor intensity.
- **Sturdy & Durable Structure**
The main frame adopts thick steel plate welding, with high rigidity and good stability, no deformation during long-term high-speed operation. The rollers are made of high-grade GCr15 bearing steel, precision processed and hard chrome plated, wear-resistant and long service life.
- **Customizable Specifications**
Support customized production according to customer’s profile drawings, including width, height, flange size, thickness range, hole punching position, and length. We can provide single-size, adjustable-size, and fully automatic interchangeable CZ purlin machines.
- **High Production Efficiency**
Equipped with high-power driving system and stable transmission structure, the working speed can reach 8-15m/min according to material thickness and profile, realizing continuous mass production and shortening the construction period.
## Main Technical Parameters (General Model)
- **Material**: Galvanized steel coil, cold rolled steel coil
- **Material Thickness**: 1.5-3.0mm (customizable for 1.0-4.0mm)
- **Forming Speed**: 8-15m/min
- **Main Motor Power**: 15KW-30KW (customizable)
- **Control System**: PLC + Touch Screen (Delta/Siemens Optional)
- **Driving Mode**: Chain / Gear Box Drive
- **Cutting Mode**: Hydraulic Flying Cut / Fixed Length Cut
- **Shaft Diameter of Roll Stands**: 60mm / 70mm / 80mm
- **Number of Forming Stations**: 14-20 stations (according to profile)
- **Voltage**: 380V 3Phase 50Hz (customizable according to local standard)
- **Machine Size**: About 12-18m(L)×1.5m(W)×1.5m(H)
## Machine Structure Composition
1. **Hydraulic Decoiler**
Automatic loading and uncoiling, with hydraulic expansion and braking system, suitable for 5-10 tons steel coils.
2. **Leveling & Feeding Device**
Levels the raw material coil, eliminates internal stress, ensures smooth feeding and stable forming quality.
3. **Roll Forming System**
Core part of the machine, consists of multiple groups of rolling stands, gradually bending the steel strip into designed C/Z shape.
4. **Punching System**
Can be equipped with automatic punching device to pre-punch mounting holes, connecting holes, etc., according to customer requirements.

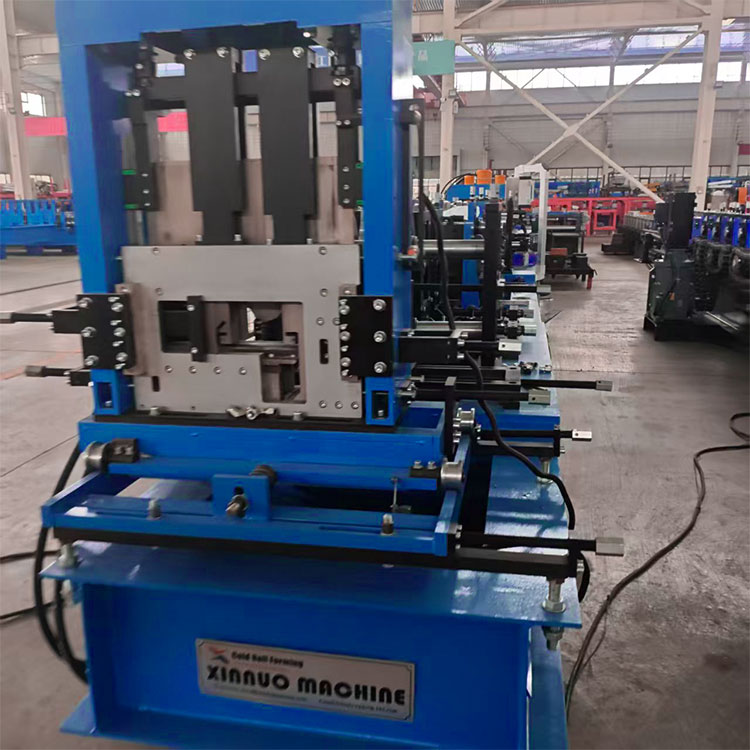

5. **Hydraulic Cutting System**
Adopts high-pressure hydraulic system, fast cutting, smooth incision, no burrs, accurate fixed-length cutting.
6. **PLC Electrical Control Cabinet**
Intelligent man-machine interface, supports parameter setting, production counting, automatic operation, emergency stop, fault self-diagnosis.
7. **Run-out Table & Stacker**
Receives finished purlins automatically, can be equipped with pneumatic or hydraulic stacking device for convenient packaging and transportation.
## Application Scope
CZ purlins produced by this machine are widely used in:
- Steel structure factory buildings and warehouses
- Large-scale shopping malls and exhibition halls
- High-rise residential and office buildings
- Prefabricated construction and modular buildings
- Airport, railway station, stadium and other public buildings
- Roof support, wall beam, structural framework in construction engineering
## Our Service
- **Customization Service**: Customize machine structure, profile size, speed, control system and voltage according to customer’s drawing and requirement.
- **Installation & Training**: Provide overseas installation, commissioning and operator training by professional engineers.
- **After-sales Support**: 12 months warranty period, lifelong maintenance service, 24 hours technical support online.
- **Spare Parts Supply**: Provide long-term stable supply of wearing parts and spare parts with favorable price.
- **Packaging & Shipping**: Standard export packaging (plywood case or film wrapping), safe and convenient for sea transportation.
## Why Choose Us
- Professional manufacturer with years of experience in cold roll forming machinery.
- Strict quality control in material, processing and assembly.
- Mature design, stable performance, high finished product pass rate.
- High cost performance, reasonable price with reliable quality.
- Complete pre-sales consultation, after-sales service and technical support.
♦ COMPANY PROFILE:
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Advantages of Roll Forming A Metal Part
There are several advantages of using roll forming for your projects:
- The roll forming process allows operations such as punching, notching, and welding to be performed in-line. Labor cost and time for secondary operations are reduced or eliminated, reducing part costs.
- Roll form tooling allows for a high degree of flexibility. A single set of roll form tools will make almost any length of the same cross-section. Multiple sets of tools for varying length parts are not required.
- It can provide better dimensional control than other competing metal forming processes.
- Repeatability is inherent in the process, allowing easier assembly of roll formed parts into your finished product, and minimizing problems due to “standard” tolerance build up.
- Roll forming is typically a higher speed process.
- Roll forming offers customers a superior surface finish. This makes roll forming an excellent option for decorative stainless steel parts or for parts requiring a finish such as anodizing or powder coating. Also, texture or pattern can be rolled into the surface during forming.
- Roll forming utilizes material more efficiently than other competing processes.
- Roll formed shapes can be developed with thinner walls than competing processes
Roll forming is a continuous process which converts sheet metal into an engineered shape using consecutive sets of mated rolls, each of which makes only incremental changes in the form. The sum of these small changes in form is a complex profile.
